Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKManet
Certification: CE, ISO9001
Model Number: ZKManet1241T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 1999 Per Piece
Packaging Details: Brown Carton
Delivery Time: 4 working weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Frequency: |
300MHz-2.7GHz Customizable |
Modulation: |
COFDM |
Output Power: |
2W |
Bandwidth: |
2-8MHz |
Encryption: |
AES |
Range: |
1.5-3km(NLOS); 5~10km(LOS) |
Video Compression: |
H.264 |
Weight: |
1.3kg |
Frequency: |
300MHz-2.7GHz Customizable |
Modulation: |
COFDM |
Output Power: |
2W |
Bandwidth: |
2-8MHz |
Encryption: |
AES |
Range: |
1.5-3km(NLOS); 5~10km(LOS) |
Video Compression: |
H.264 |
Weight: |
1.3kg |

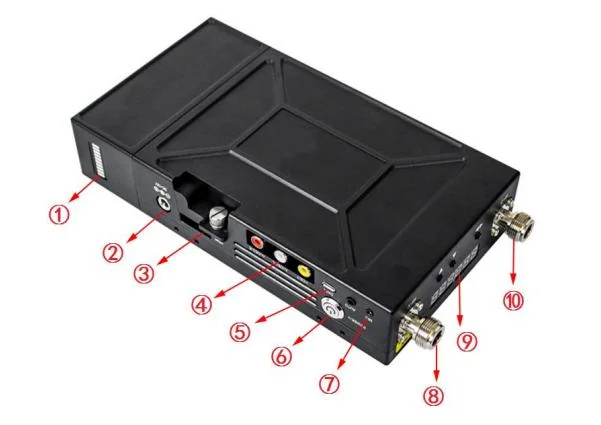

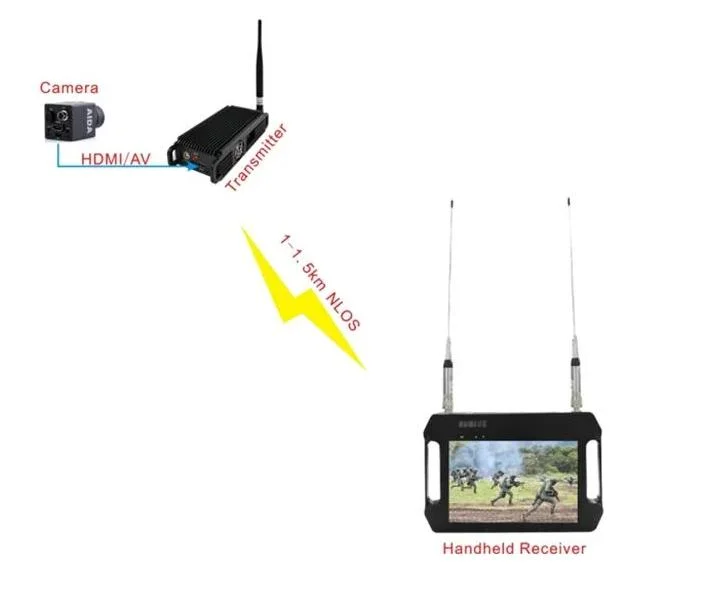

The ZKManet1241T is a compact and portable, HD and stable image transmitting manpack transmitter. It utilizes COFDM modulation technology to capture and transmit high-quality images in real-time even in non-line-of-sight situations and during high-speed movement. The transmission process encrypts images and data, and it can be used in conjunction with the ZKManet1002R receiver. It is particularly suitable for use in complex environments with obstacles, making it ideal for security operations at major events, emergency rescue missions, and daily operations of public security and armed police forces.
* COFDM modulation and H.264 compression
* HDMI and CVBS dual video inputs
* Supports two-way voice intercom
* Range up to 1.5-3km NLOS and 5-10km LOS
* 60-100ms low link latency
* Strong anti-interference ability
* Manpack design for easy operation
* Up to 5 hours battery life
* Rugged aluminum alloy housing
| Model | ZKManet1241T | Brand | ZKMANET |
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable; Audio: 145Mhz |
|
| Modulation | QPSK(4QAM)/16QAM/64QAM | ||
| Output Power | 2W | ||
| Bandwidth | 2-8MHz | ||
| Encryption | AES | ||
| Range | 1.5-3km(NLOS); 5~10km(LOS) | ||
| RF Interface | N-F | ||
| Video/Audio Parameters | Video Input | HD:HDMI | |
| SD:RCA | |||
| Video Modulation | HD:1080P,1080i,720P,720i | ||
| SD:P/N | |||
| Video Compression | H.264 | ||
| Audio Interface | K-headphone microphone interface | ||

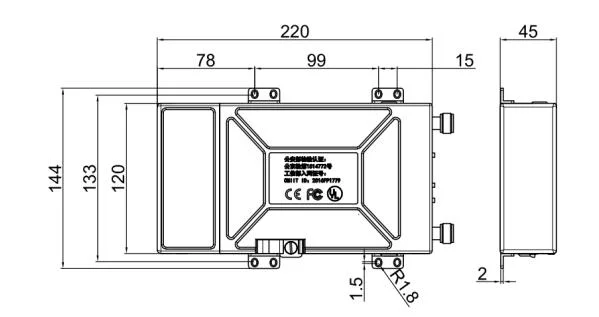

| Physical/Environment | Dimensions | 220*120*45(mm)(L×W×H)(w/ battery) | |
| Weight | 1.3kg(w/ battery) | ||
| Working Temp | -20ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4500mAh | ||
| Power Consumption | <237dBm | ||

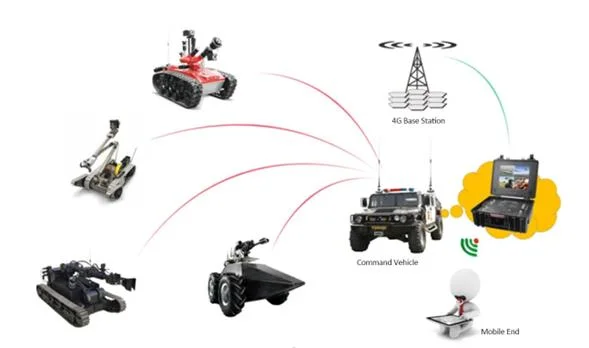

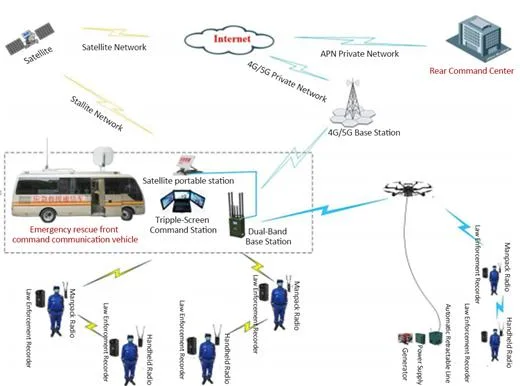

Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
