Product Details
Place of Origin: Guangdong, China
Brand Name: LINKAV
Certification: CE, ISO9001
Model Number: MANET1104-W
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
MANET1104-W
LinkAV
| Modulation Type: | QPSK (4QAM), 16QAM, 64QAM | Working Frequency: | 300-2700MHz (Default 700MHz) |
| RF Bandwidth: | 2MHz-8MHz (Adjustable) | FEC: | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval: | 1/4, 1/8, 1/16, 1/32 | Receiving Sensitivity: | -106dBm@1.25MHz |
| Encryption: | AES128 Or AES256 | RF Interface: | N F Head (50Ω, Dual Channel Diversity Reception) |
| Weight: | ≤1.5Kg |
| Modulation Type: | QPSK (4QAM), 16QAM, 64QAM |
| Working Frequency: | 300-2700MHz (Default 700MHz) |
| RF Bandwidth: | 2MHz-8MHz (Adjustable) |
| FEC: | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Guard Interval: | 1/4, 1/8, 1/16, 1/32 |
| Receiving Sensitivity: | -106dBm@1.25MHz |
| Encryption: | AES128 Or AES256 |
| RF Interface: | N F Head (50Ω, Dual Channel Diversity Reception) |
| Weight: | ≤1.5Kg |

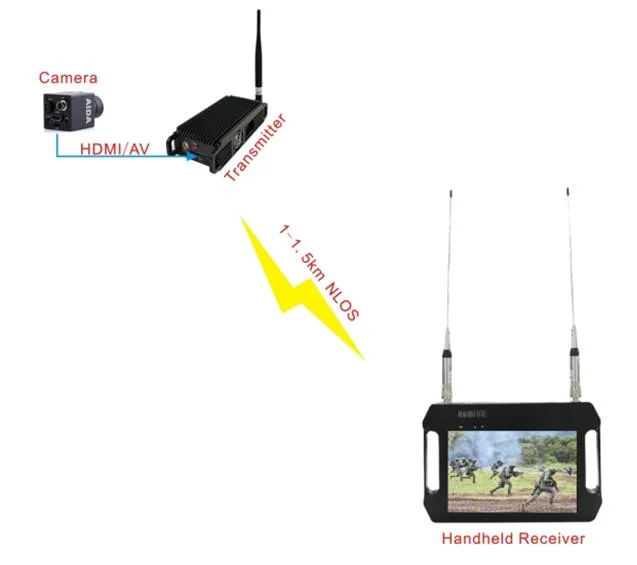

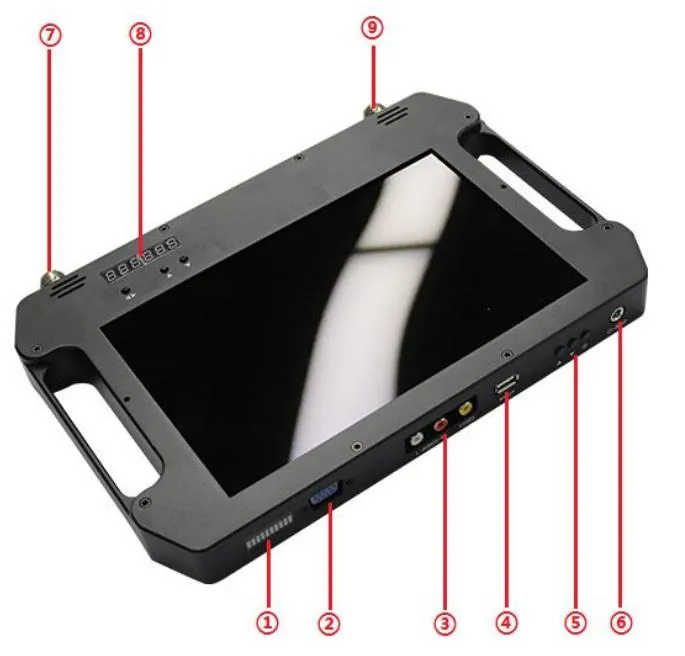

The MANET1104-W is a portable receiver specifically for use as a temporary command center during daily police and armed police operations. It comes with a built-in display screen, is easy to carry, and simple to operate. Utilizing COFDM modulation technology, the MANET1104-W encrypts images and data during transmission. Compact in size, it is suitable for providing decision-making support for on-site commanders.
* Compact size and light weight
* Portable design for easy operation
* 10.1 inch HD display
* Receiving signal under high-speed and NLOS conditions
* With AV output for connecting to external large display
* AES256 encryption
* Built-in battery up to 4 hours endurance
| RF Parameters | Frequency | 300MHz-2.7GHz Customizable | |
| Modulation | QPSK(4QAM),16QAM,64QAM | ||
| Bandwidth | 2-8MHz | ||
| Receiving Sensitivity | -106dBm | ||
| Encryption | AES | ||
| RF Interface | N-F | ||
| Video Parameters | Screen | 10.1 inches HD | |
| Video Output | HD:HDMI | ||
| SD:RCA-F | |||
| Video Modulation | HD:1080P@60 | ||
| SD:720*480 | |||
| Video Compression | H.264 | ||
| Video Memory | TF Card(128G Max); File system:FAT32 | ||

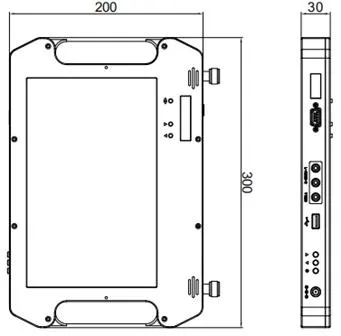

| Physical/Environment | Dimensions | 300*200*30mm | |
| Weight | 1.5kg | ||
| Electrical Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4000mAh | ||
