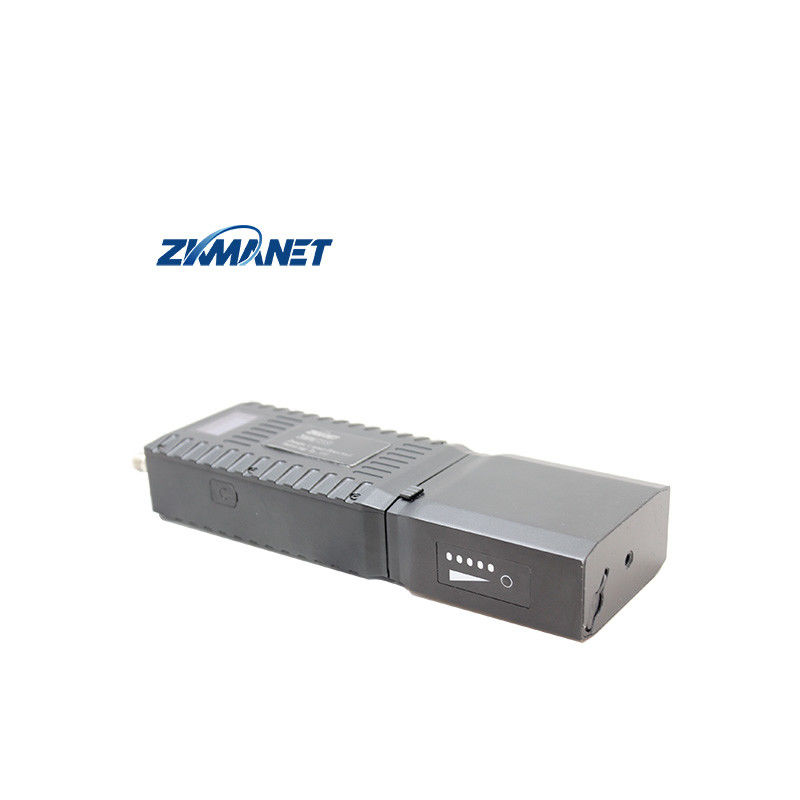

Handheld IP Mesh Radio With Battery

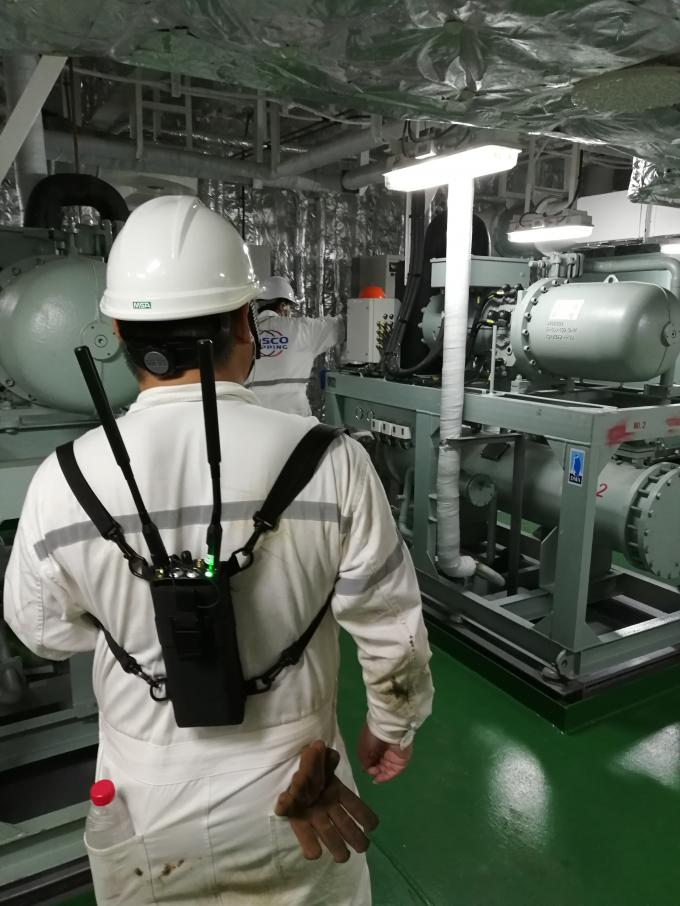

MANET9101-W is a high-performance and stable Mesh self-organizing network product that adopts FPGA scheme. It can adopt multiple communication combinations and be applied in different usage scenarios. The device is equipped with a data display screen, which can display the device status and connection status in real time; It can be carried by individual soldiers, used as a relay with a tripod, installed at fixed points, and can also be used on mobile vehicles, ships, robots, drones, unmanned ships, etc. It can be used anytime and anywhere with just one click on the power, without the need to configure or change parameters.

1. Integrated design, convenient for carrying and use;
2. With HDMI interface, supporting HDMI video input;
3. Supports WI-FI connection and GPS/BD positioning;
4. Support voice intercom
5. Support point-to-point/point-to-point/many to many communication methods;
6. Support adaptive transmission rate of 1-100+Mbps; From
7. With lithium batteries, usage time o ≥ 4 hours;
8. Full duplex bidirectional data transmission, full IP transparent data transmission;
9. IP66 protection level, high reliability
10. One click use upon device startup, no need to configure or change parameters, convenient operation and maintenance

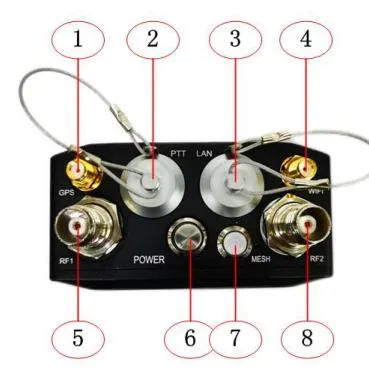

1 GPS antenna interface
2 PPT interface
3 LAN port
4 WIFI antenna interface
5 MESH antenna interface
6 Power switch
7 Signal indicator light
8 MESH antenna interface

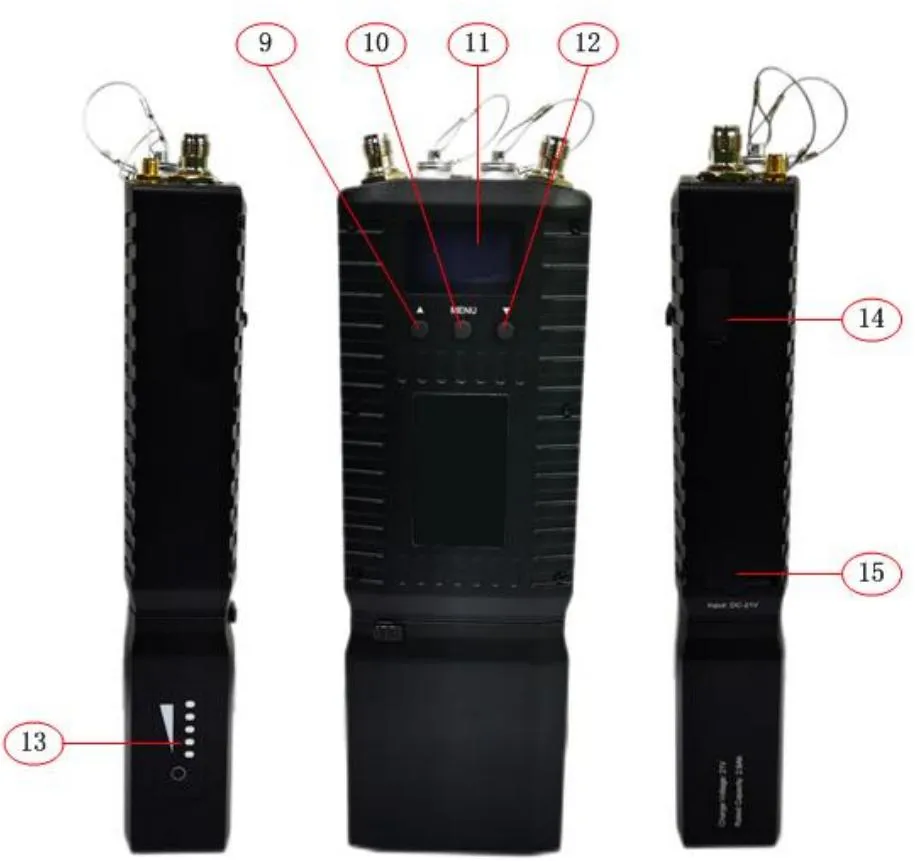

9 Modify parameter button
10 Modify parameter button
11 Display screen
12 Modify parameter button
13 Power display
14 HDMI interface
15 Charging interface

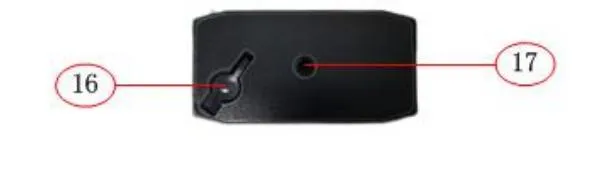

16 Charging interface
17 Tripod interface
