UAV Video Data Link With AES256 Encryption And MANET Support

Product Description

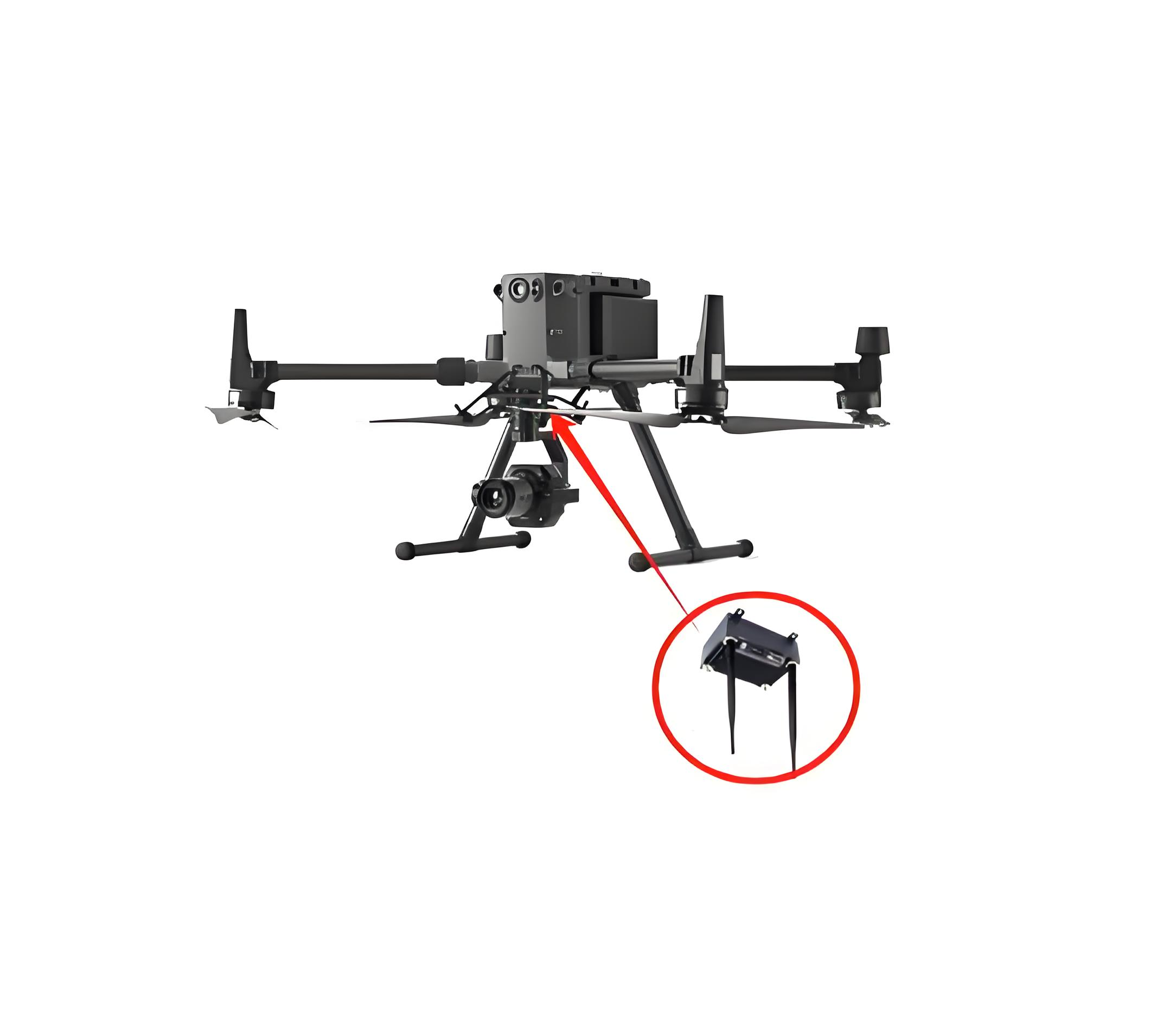

Equipping unmanned aerial vehicles (UAVs) with dependable communication systems is critical for modern aerial operations. Our UAV Video Data Link is engineered to deliver consistent performance in complex environments, ensuring stable, high-bandwidth, and secure transmission. Designed specifically for demanding drone applications, this system integrates advanced networking technologies with practical hardware interfaces to meet the rigorous requirements of industrial, commercial, and tactical UAV deployments. By focusing on low-latency video streaming and uninterrupted data flow, this data link empowers operators to maintain complete control and situational awareness during critical missions.

Reliable Mobile Ad Hoc Network (MANET) Integration

One of the standout capabilities of this video data link is that it supports Mobile Ad Hoc Network (MANET) architectures. Unlike traditional point-to-point systems, MANET allows multiple nodes to dynamically connect and self-configure on the fly. This means that as UAVs move through challenging terrains or encounter obstacles, the network automatically reroutes data to maintain a stable connection. This decentralized networking approach significantly extends operational range, enhances link reliability, and provides a scalable solution for multi-drone swarm operations without relying on fixed infrastructure.

High-Speed Data Rate and Video Input

Real-time visual feedback and telemetry are vital for effective UAV operations. To support high-definition video streaming and heavy payload data, this system provides a data rate up to 56Mbps. This high throughput ensures that operators receive crisp, lag-free video feeds and instantaneous telemetry updates. Coupled with HDMI input, the data link easily integrates with a wide variety of high-resolution cameras and optical payloads. Whether utilized for aerial surveying, search and rescue, or infrastructure inspection, the high bandwidth guarantees that critical visual data is transmitted without bottlenecking.

Advanced Encryption and Customizable Frequency Bands

Data security is a non-negotiable requirement for sensitive aerial missions. To protect your video feeds and control signals from unauthorized interception, this UAV data link supports AES256 Encryption. This military-grade cryptographic standard ensures that all transmitted information remains entirely secure. Operating on a standard frequency 1300-1500MHz (70MHz-6GHz customizable), the system provides strong signal penetration and long-range capabilities. The broad customizable range allows procurement teams to tailor the equipment to local regulatory standards and specific environmental conditions.

Precise Positioning and Intuitive Management

Accurate spatial awareness is facilitated because the system supports GPS/BD/GLONASS (GNSS). This multi-constellation compatibility ensures precise tracking and positioning of the UAV, even in regions with challenging satellite visibility. On the operational side, the equipment features full transparent IP data transmission, allowing it to function as a direct extension of your existing IP network. This transparency simplifies the integration of various IP-based sensors and communication devices. Additionally, it supports WebUI management, providing operators with an intuitive, browser-based interface to monitor network health, configure settings, and manage encryption keys efficiently, reducing setup time and operational complexity.

Core Features Summary

• Networking: Supports Mobile Ad Hoc Network (MANET)

• Operating Band: Frequency 1300-1500MHz (70MHz-6GHz customizable)

• Data Security: Supports AES256 Encryption

• Throughput Capacity: Data rate up to 56Mbps

• Location Tracking: Supports GPS/BD/GLONASS (GNSS)

• Network Compatibility: Full transparent IP data transmission

• System Control: Supports WebUI management

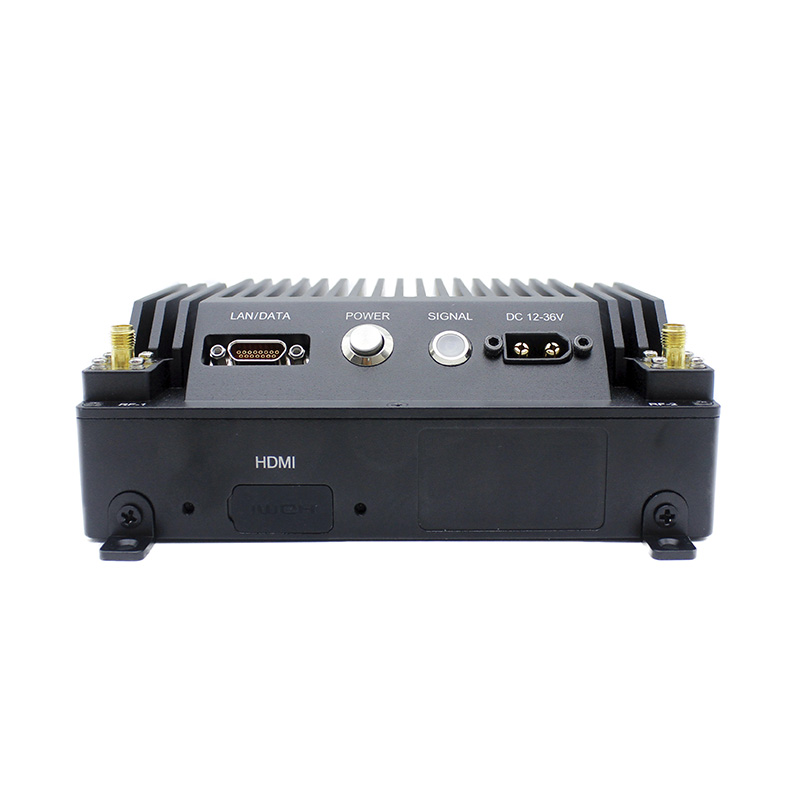

• Video Interface: With HDMI input

Technical Parameters

Technical Parameters

Review the comprehensive specifications of the UAV Video Data Link below to verify compatibility with your drone platforms and communication networks. The data sheet outlines critical RF performance, MANET (Mobile Ad Hoc Network) capabilities, electrical requirements, and physical interfaces designed for reliable tactical and industrial deployments.

Product Uses & Application Scenarios

The UAV Video Data Link is engineered for complex operational environments requiring secure, high-bandwidth communication. The deployment topologies below demonstrate how the MANET support enables seamless multi-hop relay networks, extending operational range and overcoming non-line-of-sight (NLOS) challenges. Protected by AES256 encryption, these configurations are highly suitable for security surveillance, industrial drone inspections, and emergency response coordination.

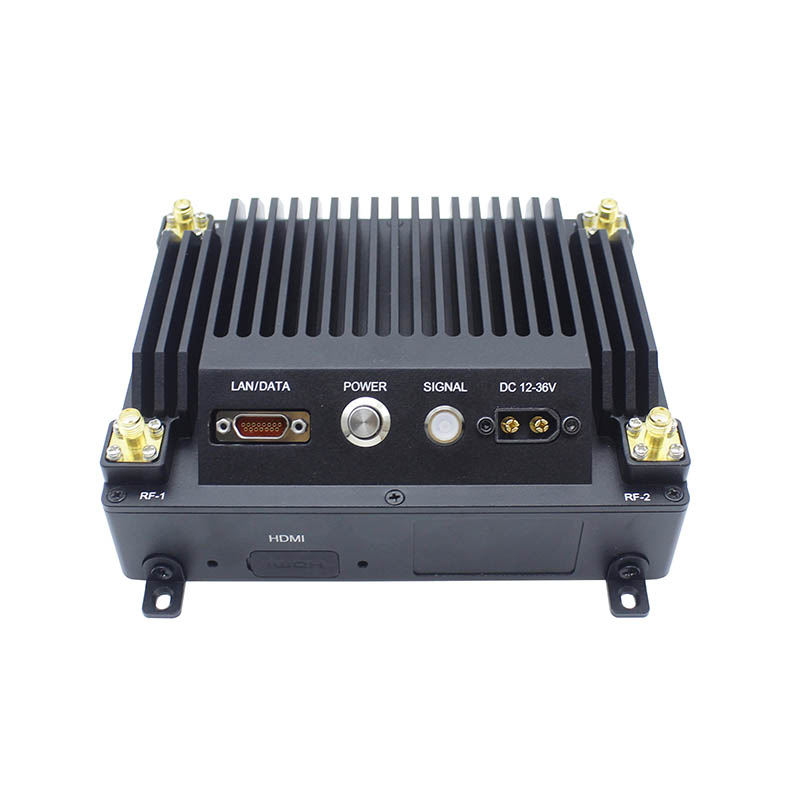

By utilizing up to 15 hops for short messages and 8 hops for video transmission, the system guarantees continuous situational awareness. The flexible LAN, Serial, and Mini HDMI interfaces allow for straightforward integration with various payloads, sensors, and ground control stations.

Whether deployed in point-to-point configurations or complex mesh networks, the robust TDD-COFDM waveform and rapid network access time (<1s) ensure stable, encrypted data transmission between aerial platforms and command centers, significantly reducing communication blind spots during critical missions.
