Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1241T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 3999~5999 per piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
Modulation: |
COFDM |
Modulation Type: |
QPSK(4QAM), 16QAM, 64QAM |
Working Frequency: |
300MHz-860MHz (Default 690-710MHz) 860MHz-2.7GHz For Customization |
Transmission Power: |
33dBm (37dBm Optional) |
RF Bandwidth: |
2-8MHz |
FEC: |
1/2, 2/3, 3/4, 7/8 |
Guard Interval: |
1/4, 1/8, 1/16, 1/32 |
Encryption: |
AES256 (User-defined Password) |
Latency: |
Low |
Modulation: |
COFDM |
Modulation Type: |
QPSK(4QAM), 16QAM, 64QAM |
Working Frequency: |
300MHz-860MHz (Default 690-710MHz) 860MHz-2.7GHz For Customization |
Transmission Power: |
33dBm (37dBm Optional) |
RF Bandwidth: |
2-8MHz |
FEC: |
1/2, 2/3, 3/4, 7/8 |
Guard Interval: |
1/4, 1/8, 1/16, 1/32 |
Encryption: |
AES256 (User-defined Password) |
Latency: |
Low |

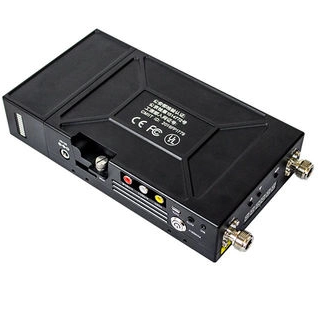

The ZKManet1241T is a compact and portable, HD and stable image transmitting manpack transmitter. It utilizes COFDM modulation technology to capture and transmit high-quality images in real-time even in non-line-of-sight situations and during high-speed movement. The transmission process encrypts images and data, and it can be used in conjunction with the ZKManet1002R receiver. It is particularly suitable for use in complex environments with obstacles, making it ideal for security operations at major events, emergency rescue missions, and daily operations of public security and armed police forces.
* COFDM modulation and H.264 compression
* HDMI and CVBS dual video inputs
* Supports two-way voice intercom
* Range up to 1.5-3km NLOS and 5-10km LOS
* 60-100ms low link latency
* Strong anti-interference ability
* Manpack design for easy operation
* Up to 5 hours battery life
* Rugged aluminum alloy housing
| Model | ZKManet1241T | Brand | ZKMANET |
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable; Audio: 145Mhz |
|
| Modulation | QPSK(4QAM)/16QAM/64QAM | ||
| Output Power | 2W | ||
| Bandwidth | 2-8MHz | ||
| Encryption | AES | ||
| Range | 1.5-3km(NLOS); 5~10km(LOS) | ||
| RF Interface | N-F | ||
| Video/Audio Parameters | Video Input | HD:HDMI | |
| SD:RCA | |||
| Video Modulation | HD:1080P,1080i,720P,720i | ||
| SD:P/N | |||
| Video Compression | H.264 | ||
| Audio Interface | K-headphone microphone interface | ||
| Physical/Environment | Dimensions | 220*120*45(mm)(L×W×H)(w/ battery) | |
| Weight | 1.3kg(w/ battery) | ||
| Working Temp | -20ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4500mAh | ||
| Power Consumption | <237dBm | ||
Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
