Product Details
Place of Origin: Shenzhen, China
Brand Name: LINKAV
Certification: CE, ISO9001
Model Number: MANET3510B-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Brown Carton
Delivery Time: 4 working weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year

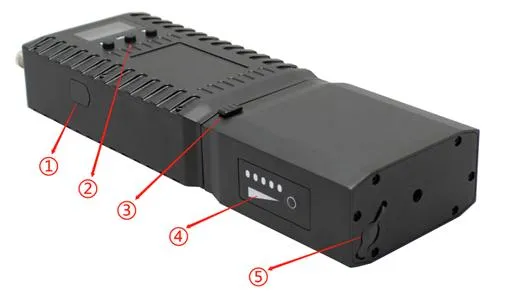

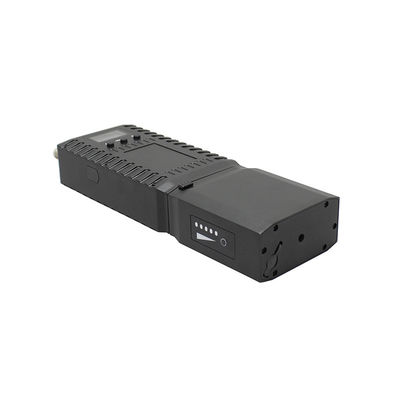

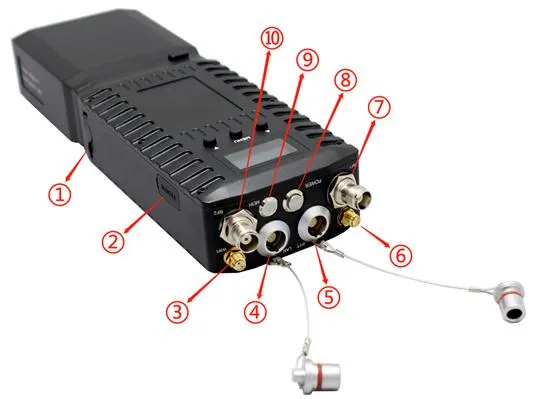

MANET3510B-W
LinkAV
| Frequency: | 1.4GHz (Customizable) |
| Bandwidth: | 20MHz (Typical) |
| RF Channel: | 2T2R |
| Encryption: | AES |

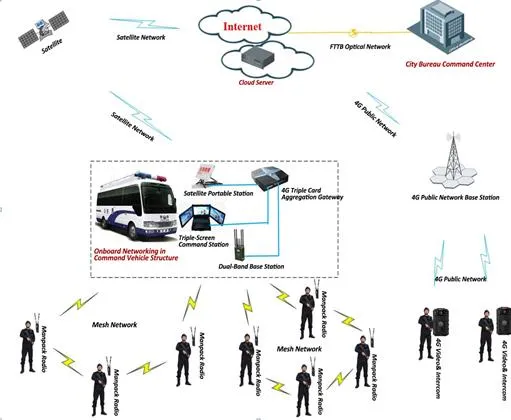

The MANET3510B-W can be used in various communication combinations for different scenarios. It comes with a data display screen, which can show real-time device status and connection status. It can be worn by a single soldier, used as a relay with a tripod, installed at fixed points, or used on moving vehicles, ships, robots, drones, unmanned boats, etc., allowing for on-the-go usage with one-click without the need for configuration or parameter changes.
* Supports HDMI input
* Supports voice intercom
* Supports WIFI connection
* Supports GPS/BD
* Full-duplex two-way data transmission
* Full IP transparent data transmission
* IP66
* Easy Operation
| RF Parameters | Frequency | 1.4GHz (Customizable) | |
| Bandwidth | 20MHz (Typical) | ||
| RF Channel | 2T2R | ||
| Encryption | AES | ||

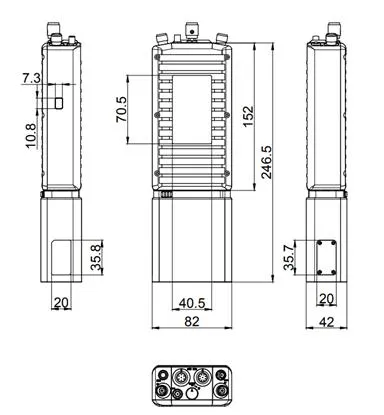

| Physical/ Environment | Dimensions | 246.5*82*42mm | |
| Weight | 1.2kg (w/ battery) | ||
| IP Rating | IP66 | ||
| Electronic Parameters | Power Supply | 18.5V | |
| Battery Capacity | 48Wh | ||
| Power Consumption | <12W | ||
