Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1241T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 1999~2399
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
Transmit Power: |
2W |
Working Bandwidth: |
2-8MHz Adjustable |
Encryption: |
AES |
Transmission Distance: |
1.5-3km |
RF Interface: |
N Female Header |
Video Input Interface: |
High Definition: HDMI Standard Definition: RCA |
Dimension: |
220*120*45(mm)(L×W×H)(Included Battery) |
Weight: |
1.3kg(Included Battery) |
Transmit Power: |
2W |
Working Bandwidth: |
2-8MHz Adjustable |
Encryption: |
AES |
Transmission Distance: |
1.5-3km |
RF Interface: |
N Female Header |
Video Input Interface: |
High Definition: HDMI Standard Definition: RCA |
Dimension: |
220*120*45(mm)(L×W×H)(Included Battery) |
Weight: |
1.3kg(Included Battery) |

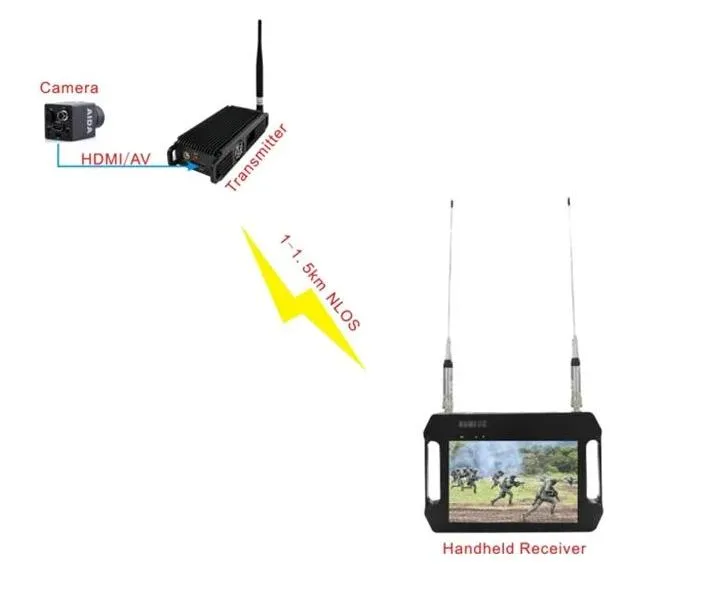

The ZKManet1241T is a lightweight and portable manpack transmitter that delivers HD, stable image transmission. It employs COFDM modulation technology to capture and transmit high-quality images in real-time, even in non-line-of-sight scenarios and during rapid movement. The transmission process ensures that both images and data are encrypted, and it can be paired with the ZKManet1002R receiver. This device is especially well-suited for challenging environments with obstacles, making it perfect for security operations at large events, emergency rescue missions, and the routine activities of public security and armed police forces.
* COFDM modulation and H.264 compression
* HDMI and CVBS dual video inputs
* Supports two-way voice intercom
* Range up to 1.5-3km NLOS and 5-10km LOS
* Low latency
* Manpack design for easy operation
* Up to 5 hours battery life
* Rugged aluminum alloy housing
| Model | ZKManet1241T | Brand | ZKMANET |
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable; Audio: 145Mhz |
|
| Modulation | QPSK(4QAM)/16QAM/64QAM | ||
| Output Power | 2W | ||
| Bandwidth | 2-8MHz | ||
| Encryption | AES | ||
| Range | 1.5-3km(NLOS); 5~10km(LOS) | ||
| RF Interface | N-F | ||
| Video/Audio Parameters | Video Input | HD:HDMI | |
| SD:RCA | |||
| Video Modulation | HD:1080P,1080i,720P,720i | ||
| SD:P/N | |||
| Video Compression | H.264 | ||
| Audio Interface | K-headphone microphone interface | ||

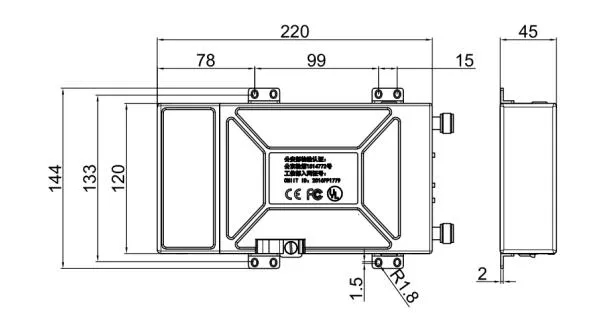

| Physical/Environment | Dimensions | 220*120*45(mm)(L×W×H)(w/ battery) | |
| Weight | 1.3kg(w/ battery) | ||
| Working Temp | -20ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4500mAh | ||
| Power Consumption | <237dBm | ||
Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
