Product Details
Place of Origin: Shenzhen
Brand Name: LINKAV
Certification: CE
Model Number: MANET9101-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 10 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1000 pieces per year
MANET9101-W
LinkAV
| Frequency: | 300-3800MHz |
| Bandwidth: | 2.5/5/10/20MHz |
| RF Channel: | 2T2R |
| Interface: | HDMI WIFI BD GPS |
| Weight: | 1.2kg |
| Dimension: | 246.5*82*42mm |
| Application: | Data Transmission |
| Category | Parameter | Specification |
|---|---|---|
| RF Parameters | Frequency | 300~3800MHz Customizable |
| Working Bandwidth | 2.5/5/10/20MHz Customizable | |
| RF Channel | 2T2R, 2*2MIMO | |
| Network Parameters | Networking method | Supports no center, supports MANET technology co frequency self-organizing network |
| Single hop time delay | Average ≤ 24ms@20MHz | |
| WIFI | 2.4/5.8G | |
| Positioning | GPS/BD | |
| Wireless bandwidth | No less than 50Mbps/20MHz under 2*2MIMO | |
| Encryption | Support DES, AES128, AES256, and optional | |

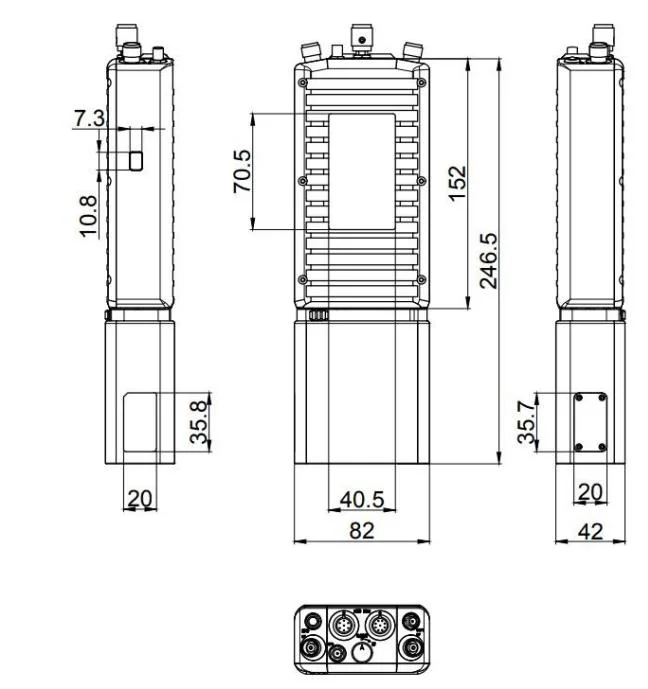

| Physical | Dimension | 246.5*82*42mm |
| Weight | 1.2kg (with battery) | |
| IP Rating | IP66 | |
| Electrical Characteristics | Power supply | DC21V |
| Battery size | 2.6Ah | |
| Other | Video Interface | HDMI |
| Data display | Support | |
| Intercom | Support | |
| Anti-interference | Supports manual spectrum scanning channel selection and intelligent frequency selection |
