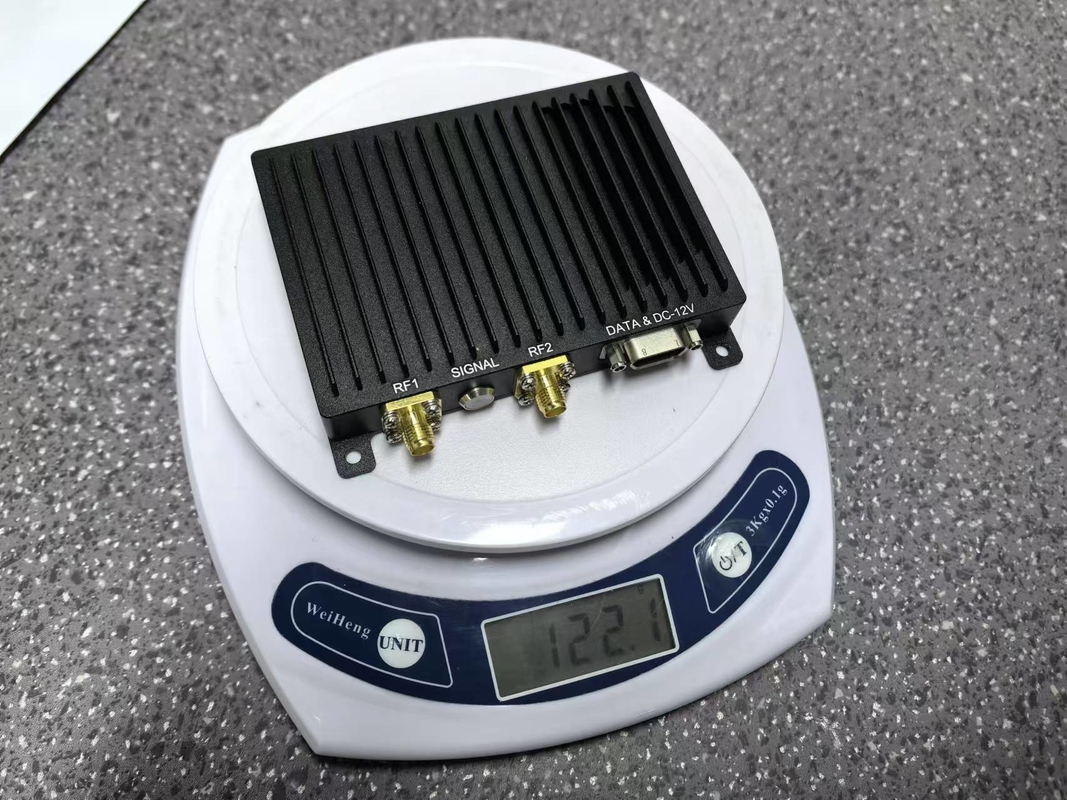

1W MESH Video Transmitter for UAV with 30KM Range

Name: 1W MESH Video Transmitter for UAV with 30KM Range
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKmanet3460
Price: 999 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKmanet3460

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 999

Packaging Details: Brown Carton

Delivery Time: 5~8 working days

Payment Terms: T/T,Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                1W UAV video transmitter, MESH video transmitter 30KM range, vehicle mounted MESH data link


Working Mode:	MESH/3GPP R9 Protocol	Bandwidth:	2.5M/5M/10M/20MHz
RF Channel:	2T2R	Output Power:	1W
Range:	10~30KM	Data Rate:	Up To 25Mbps@10MHz & 48Mbps@20MHz
Encryption:	AES	WIFI:	2.4G/5.8G

Working Mode:	MESH/3GPP R9 Protocol
Bandwidth:	2.5M/5M/10M/20MHz
RF Channel:	2T2R
Output Power:	1W
Range:	10~30KM
Data Rate:	Up To 25Mbps@10MHz & 48Mbps@20MHz
Encryption:	AES
WIFI:	2.4G/5.8G

1W MESH Video Transmitter for UAV with 30KM Range

1W Mesh Video Transmitter

Product Attributes

Attribute	Value
Working Mode	MESH/3GPP R9 protocol
Bandwidth	2.5M/5M/10M/20MHz
RF Channel	2T2R
Output Power	1W
Range	10~30KM
Data Rate	Up to 25Mbps@10MHz & 48Mbps@20MHz
Encryption	AES
WIFI	2.4G/5.8G

Product Description

The ZKmanet3460 is a rugged MANET (MESH Network) transceiver specially designed for UAV video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection). With 1 watt power output, it is ideal for tactical mesh deployments including Public Security, Armed Police, Fire Control and Military applications. Its multi-hop capability extends transmission distance, with each hop covering 10-30km air-to-air (LOS).

Key Features

Supports MESH Network (MANET)
Frequency 1300-1500MHz (customizable)
Supports FHSS and IFS
Supports AES256 encryption
2x0.5W power output
Data rate up to 48Mbps
Supports up to 32 nodes
Supports GPS/BD/GLONASS (GNSS)
Full transparent IP data transmission
Supports Web and PC software management

Dimensions

Panel Description

① MESH antenna ② Signal indicator light ③ MESH antenna ④ RS232, LAN and power port

Product Parameters
