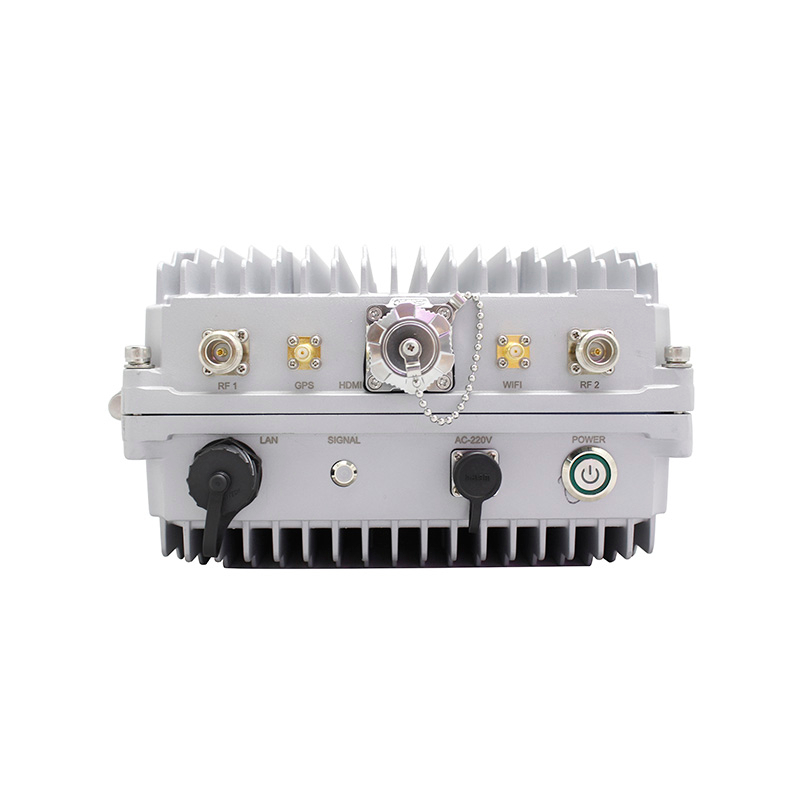

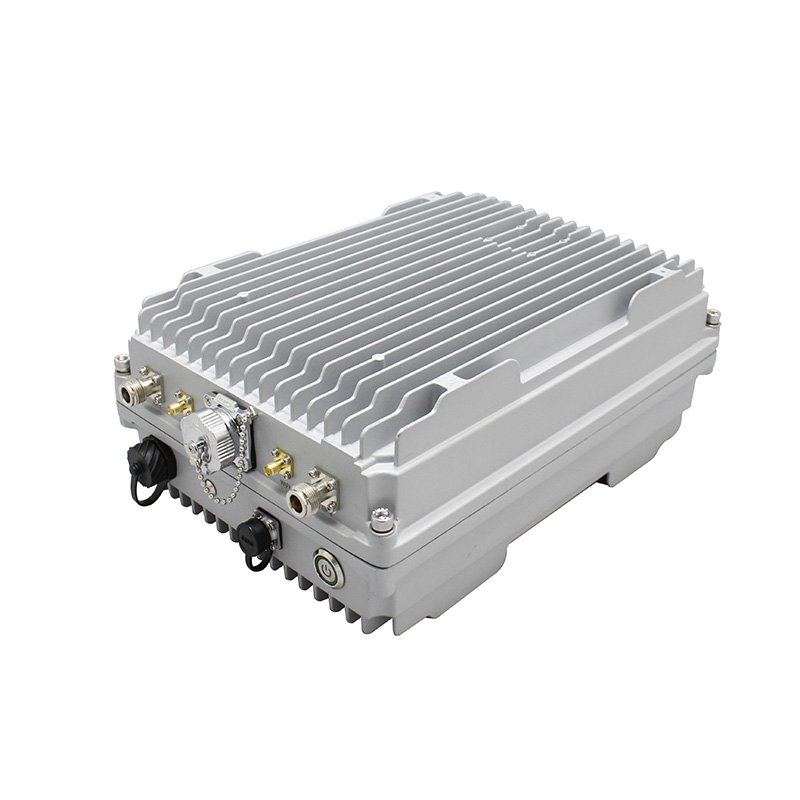

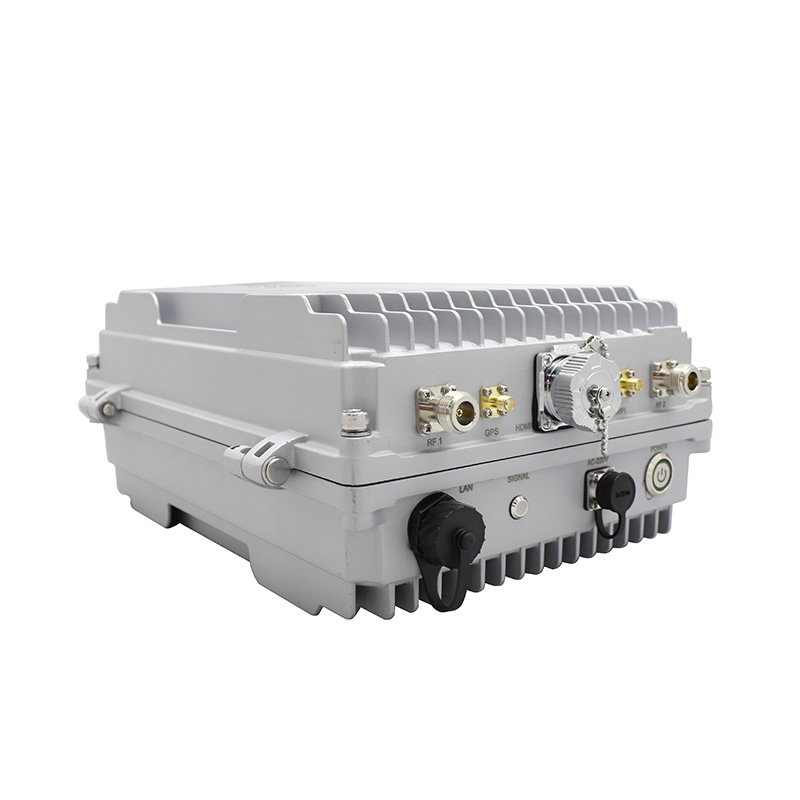

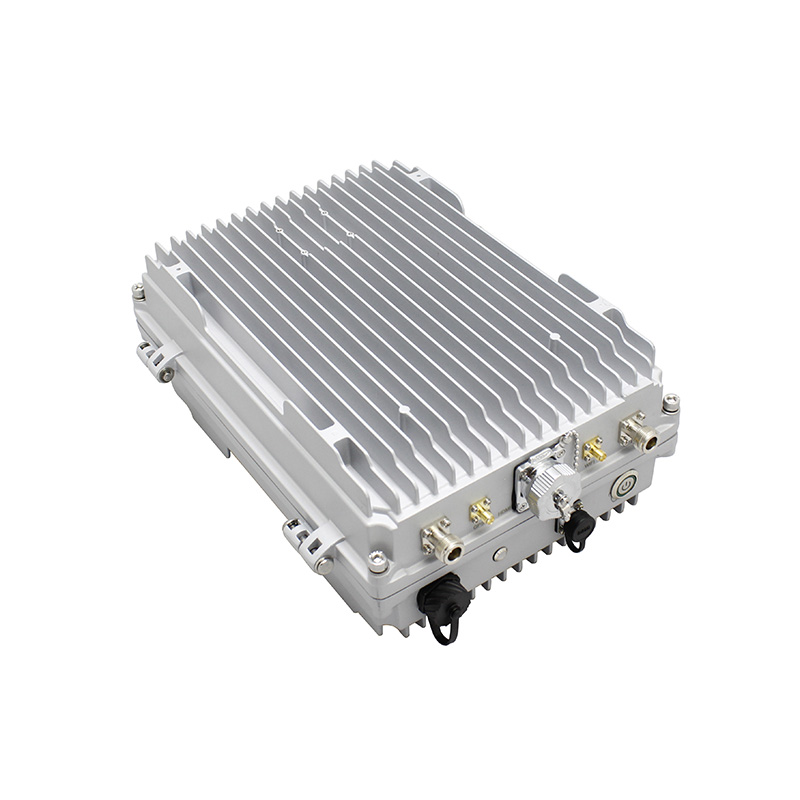

The MANE9302W-S is a rugged MANET (Mobile Ad Hoc Network) transceiver. Based on FPGA solution,it is ideal for a Various deployment environments such as Fire Control, and Robot. Its multi-hop ability can largely increase the transmission distance. The up to 48Mbps data rate allows it to transmit video, data and audio at the same time easily. The AES encryption ensures the security of data transmission.
The MANE9302W-S is a high-performance, high-stability, high-power outdoor IP MESH Radio. By matching with directional, omnidirectional, sector and other antenna types, it can realize different types of point-to-multipoint or point-to-point and MESH networks. It adopts advanced industrial-grade design such as anti-surge/static, anti-salt spray corrosion, etc., which can meet all-weather uninterrupted work in various complex electromagnetic environments and harsh climates.
High bandwidth up to 48Mbps
Supports AES encryption
With dual antennas MIMO
Customizable nodes
Full IP duplex transparent data transmission
Flexible networking and rapid deployment
IP67 rugged industrial housing
Technical Specifications
RF Parameters | |
Default Frequencies | 1300-1500MHz (70MHz-6GHz customizable) |
Channel Bandwidth | 2.5M/5M/10M/20MHz (40MHz optional) |
RF Waveform | TDD-COFDM (2T2R) |
Output Power | Customizable |
Receive Sensitivity | |
Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
Network Parameters | |
Network Size | Customizable |
Range | Long distance |
Data rate | 48Mbps@20MHz; |
Delay | 7ms@2.5MHz/hop |
Start Time | 27s |
Positioning | GPS/BD/GLONASS (GNSS) |
Network Access Time | <1s |
Network Extension | WIFI AP |
Electrical Parameters | |
Working Voltage | 100-240VAC |
Power Consumption | ≤95W |
Physical/Environment | |
Weight | 6.5kg |
Dimensions | 300*238*133mm |
IP Rating | IP67 |
Interface | |
LAN Interface | *1 |
RS232 | *1 |
Voice Interface | PTT Mic (7-pin LEMO connector*1) |
Video Interface | HDMI*1 |

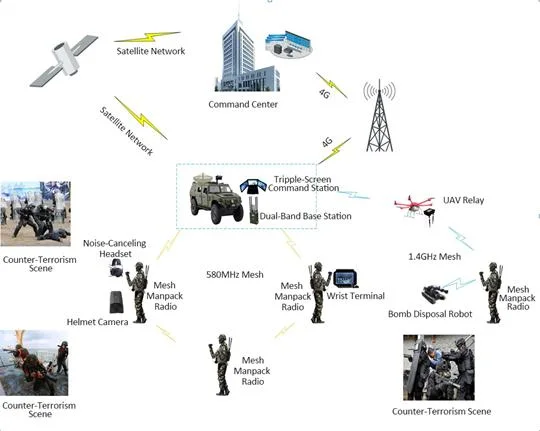

LinkAV Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly take Mesh and LTE as core technologies, and are combined with auxiliary decision-making software to form a series of communication systems, including underground building emergency communication systems, investigation communication systems, non-combat training communication systems, urban emergency communication systems, and emergency communication vehicle systems. These solutions are suitable for law enforcement agencies and government departments such as public security,forest fire prevention, civil air defense,and maritime authorities. Notably, our intelligent communication products for special robots have effectively solved the long-distance communication and control challenges of robots in complex environments.
We hold multiple patents with independent intellectual property rights, and have established a sound quality management system in line with ISO 9001 standards as well as a rigorous national standard system for critical applications. Our products are manufactured in strict compliance with such national standards and internationally recognized certifications including CCC, CE, and FCC. We have obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China, and have passed the wireless product testing and certification by the Ministry of Public Security.
