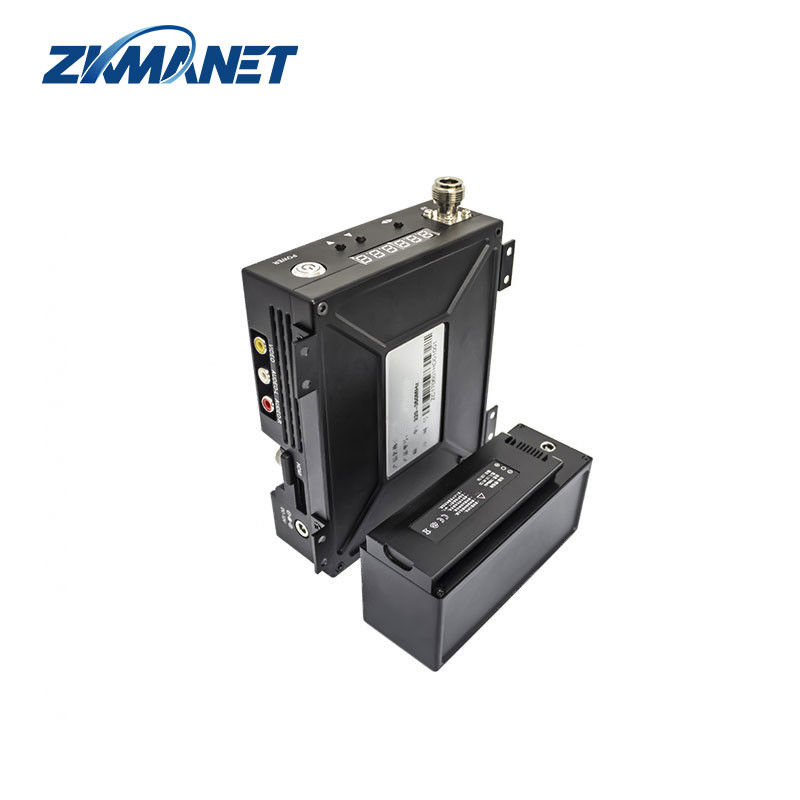

The ZKManet1242T is a manpack COFDM video transmitter tailored for applications in government video surveillance, law enforcement, border security, internal safety, and command video transmission. It excels at creating robust wireless video connections in various conditions, including high-speed mobility and urban settings. Featuring low-latency, high-profile H.264 encoding, it ensures superior video quality over wireless links and is highly adaptable for all types of missions.
* Supports HDMl and AV dual video ports
* Aluminum alloy material, impact resistant
* Range up to 1.5-3km
* 10.1 inch high screen, Manpack design for easy operation
* COFDM modulation and H.264 compression
| Model |
ZKManet1242T |
| RF Parameters |
Frequency |
Video: 300MHz-2.7GHz customizable; |
| Audio: 145Mhz |
| Modulation |
QPSK(4QAM)/16QAM/64QAM |
| Output Power |
2W |
| Bandwidth |
2-8MHz |
| Encryption |
AES |
| Range |
1.5-3km |
| RF Interface |
N-F |
| Video/Audio Parameters |
Video Input |
HD:HDMI |
| SD:RCA |
| Video Modulation |
HD:1080P,1080i,720P,720i |
| SD:P/N |
| Video Compression |
H.264 |
| Physical/Environment |
Dimensions |
220*120*45(mm) |
| Weight |
1.3kg(w/ battery) |
| Working Temp |
-20°C~ +65°C |
| Electronic Parameters |
Power Supply |
DC 12V |
| Battery Capacity |
4500mAh |
| Power Consumption |
<43dBm |
1.Antenna interface_ N type Female
2.LED control panel
3.Power push button
4.CVBS video input
5.Audio left channel input
6.Audio right channel input
7.HDMl video input
8.Power input DC 12V
9.Battery indicator
