Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1242T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 1999~2999
Packaging Details: Brown Carton
Delivery Time: 5~8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Frequency: |
300MHz-2.7GHz Customizable |
Modulation: |
QPSK(4QAM)/16QAM/64QAM |
Output Power: |
2W |
Bandwidth: |
2-8MHz |
Encryption: |
AES |
Video Input: |
HDMI/CVBS |
Video Compression: |
H.264 |
Dimensions: |
220*120*45(mm) |
Frequency: |
300MHz-2.7GHz Customizable |
Modulation: |
QPSK(4QAM)/16QAM/64QAM |
Output Power: |
2W |
Bandwidth: |
2-8MHz |
Encryption: |
AES |
Video Input: |
HDMI/CVBS |
Video Compression: |
H.264 |
Dimensions: |
220*120*45(mm) |

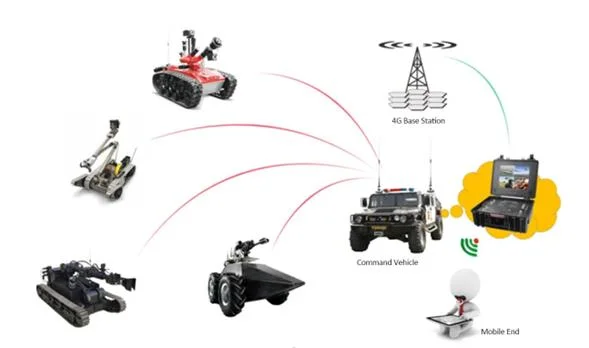

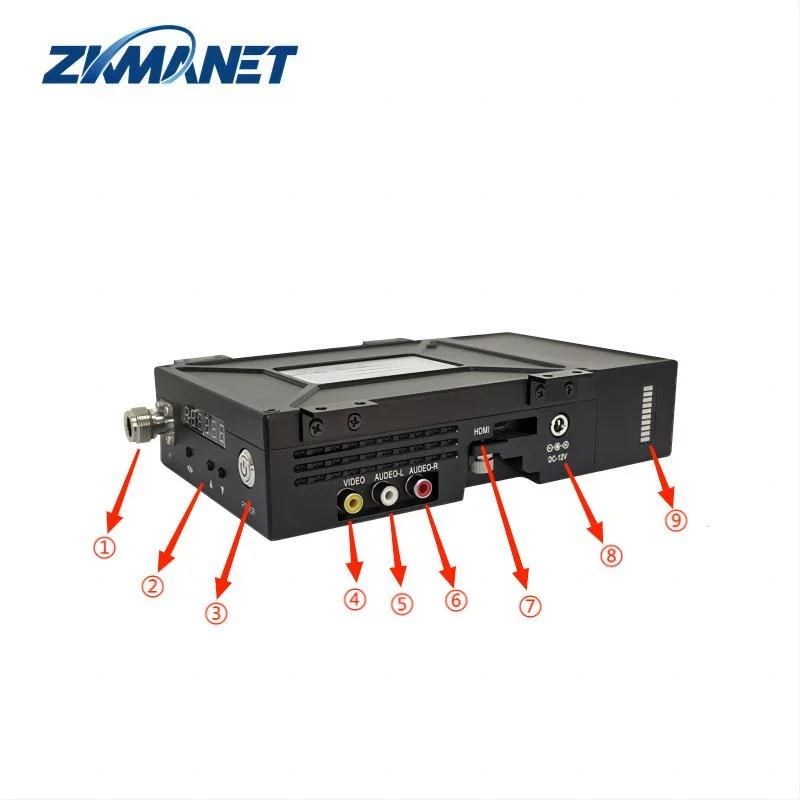

The ZKManet1242T is a manpack COFDM video transmitter tailored for applications in government video surveillance, law enforcement, border security, internal safety, and command video transmission. It excels at creating robust wireless video connections in various conditions, including high-speed mobility and urban settings. Featuring low-latency, high-profile H.264 encoding, it ensures superior video quality over wireless links and is highly adaptable for all types of missions.
* Supports HDMl and AV dual video ports
* Aluminum alloy material, impact resistant

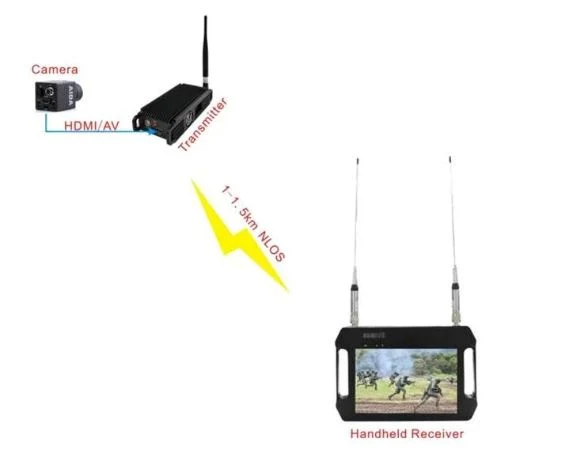

* Range up to 1.5-3km
* 10.1 inch high screen, Manpack design for easy operation
* COFDM modulation and H.264 compression
| Model | ZKManet1242T | ||
| RF Parameters | Frequency | Video: 300MHz-2.7GHz customizable; | |
| Audio: 145Mhz | |||
| Modulation | QPSK(4QAM)/16QAM/64QAM | ||
| Output Power | 2W | ||
| Bandwidth | 2-8MHz | ||
| Encryption | AES | ||
| Range | 1.5-3km | ||
| RF Interface | N-F | ||
| Video/Audio Parameters | Video Input | HD:HDMI | |
| SD:RCA | |||
| Video Modulation | HD:1080P,1080i,720P,720i | ||
| SD:P/N | |||
| Video Compression | H.264 | ||

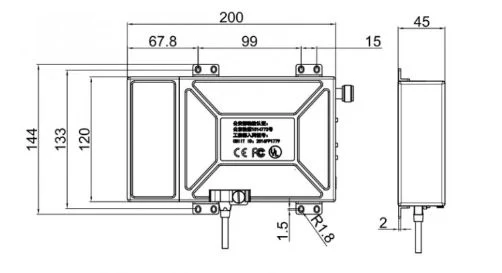

| Physical/Environment | Dimensions | 220*120*45(mm) | |
| Weight | 1.3kg(w/ battery) | ||
| Working Temp | -20°C~ +65°C | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4500mAh | ||
| Power Consumption | <43dBm | ||

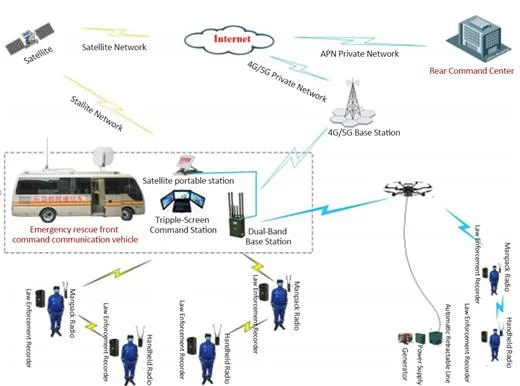

Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc. The products are widely used in law enforcement agencies and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime affairs.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
