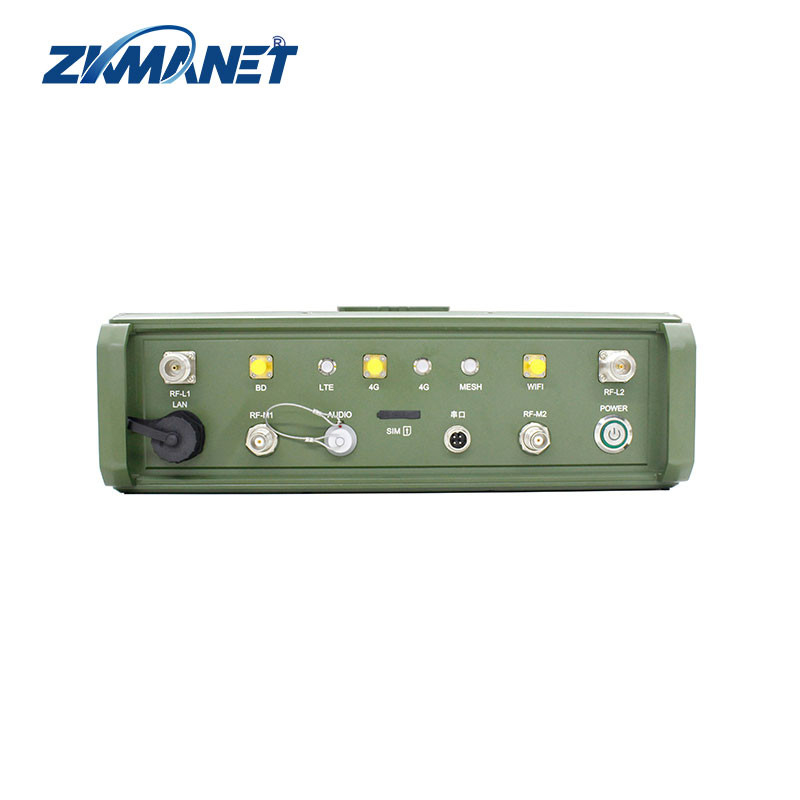

ZKManet7761 is a high-performance all-in-one device developed specifically for emergency communication. It integrates mesh network, LTE private network, 4G/5G public network, Wi-Fi, wired network, and other communication methods into one system, enabling interconnection and interoperability. It also features BD positioning and comes with a lithium battery for power supply. Based on the unique functions and characteristics of each communication method, it can connect to different business terminals to meet various functional requirements.
*Supports 5G/LTE/MESH network mode
* Rugged IP66 design
* Supports 2.4G/5.8G WIFI access
* AES encryption
* Transmission Range no less than 5km
* MESH data rate up to 120Mbps
| Mode |
ZKManet7761 |
| RF Parameters |
Mode |
Support Mesh/3GPP R9 protocol |
| Frequency |
MESH: 580MHz(Customizable)
LTE:1.4GHz(Customizable) |
| Bandwidth |
2/5/10/20/40MHz |
| RF Channel |
4T4R |
| Output Power |
40dBm |
| Network Parameters |
Network Capacity |
No less than 64 nodes and 9hops |
| Data Rate |
Downlink Rate>20Mbps; Uplink Rate>10Mbps |
| MESH Data Rate up to 120Mbps |
| Public Network |
5G/ 4G/3G |
| Positioning |
BD |
| WI-FI |
2.4/5.8GHz |
| Encryption |
AES128 |
| Transmission Range |
Mesh>5KM, |
| LTE≥2KM |
| Interface |
MESH Antenna |
TNC*2 |
| LTE Antenna |
N*2 |
| 4G Antenna |
SMA |
| WIFI Antenna |
SMA |
| BD Antenna |
SMA |
| Intercom |
7-core Lemo Head |
| Ethernet |
RJ45 |
| 4G Card |
MINI SIM Card Slot |
| UART |
4-core Aviation Head |
| Power Button |
*1 |
| Power Supply |
DC*1 |
| Physical/Environment |
Dimensions |
330*320*100mm |
| Weight |
8kg(w/ battery) |
| Working Temp |
-40ºC~+65ºC |
| IP Rating |
IP67 |
| Electrical Parameters |
Power Supply |
12V |
| Battery Capacity |
3037dBmh |
| Power Consumption |
<High Power |
