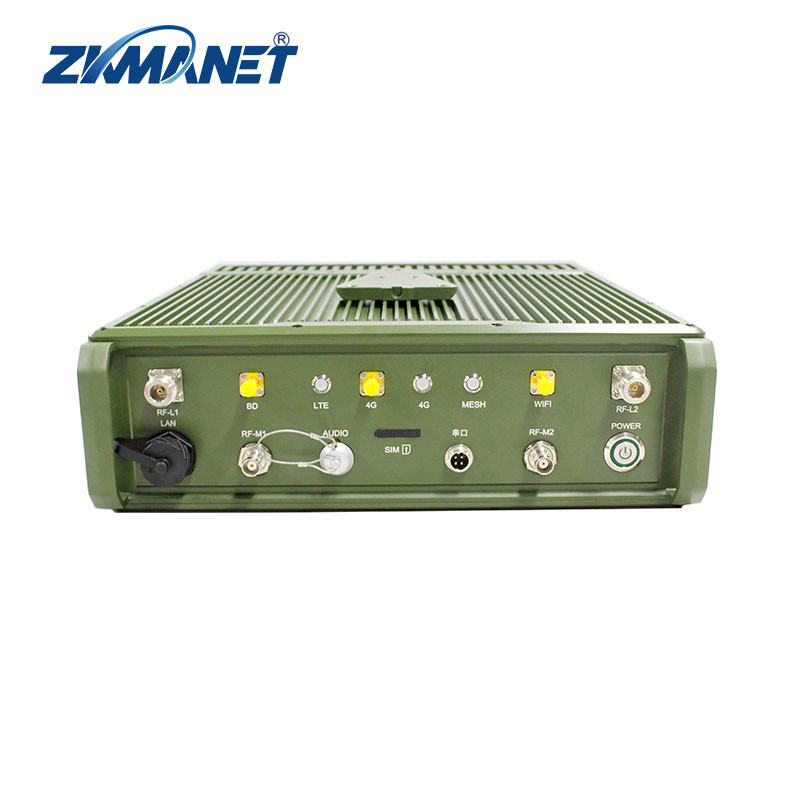

40dBm Mesh LTE 4G/5G WiFi Integrated Vehicle Mounted Base Station Radio

Name: 40dBm Mesh LTE 4G/5G WiFi Integrated Vehicle Mounted Base Station Radio
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet 7761
Price: 13999.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet 7761

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Brown Carton

Delivery Time: 5~8 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                40dBm Vehicle Mounted Base Station Radio, 5G Vehicle Mounted Base Station Radio, WiFi Integrated Base Station Radio


Mode:	Mesh/3GPP R9 Protocol	Bandwidth:	2/5/10/20/40MHz
RF Channel:	4T4R	Output Power:	40dBm
Public Network:	5G/ 4G	Positioning:	BD
WI-FI:	2.4G/5.8G	Encryption:	AES128

Mode:	Mesh/3GPP R9 Protocol
Bandwidth:	2/5/10/20/40MHz
RF Channel:	4T4R
Output Power:	40dBm
Public Network:	5G/ 4G
Positioning:	BD
WI-FI:	2.4G/5.8G
Encryption:	AES128

40dBm Mesh LTE 4G/5G WiFi Integrated Vehicle Mounted Base Station Radio

ZKManet7761 is a high-performance all-in-one device developed specifically for emergency communication. It integrates mesh network, LTE private network, 4G/5G public network, Wi-Fi, wired network, and other communication methods into one system, enabling interconnection and interoperability. It also features BD positioning and comes with a lithium battery for power supply. Based on the unique functions and characteristics of each communication method, it can connect to different business terminals to meet various functional requirements.

*Supports 5G/LTE/MESH network mode
* Rugged IP66 design
* Supports 2.4G/5.8G WIFI access
* AES encryption
* Transmission Range no less than 5km
* MESH data rate up to 120Mbps

Mode	ZKManet7761
RF Parameters	Mode	Support Mesh/3GPP R9 protocol
	Frequency	MESH: 580MHz(Customizable) LTE:1.4GHz(Customizable)
	Bandwidth	2/5/10/20/40MHz
	RF Channel	4T4R
	Output Power	40dBm
Network Parameters	Network Capacity	No less than 64 nodes and 9hops
	Data Rate	Downlink Rate>20Mbps; Uplink Rate>10Mbps
	Data Rate	MESH Data Rate up to 120Mbps
	Public Network	5G/ 4G/3G
	Positioning	BD
	WI-FI	2.4/5.8GHz
	Encryption	AES128
	Transmission Range	Mesh>5KM,
	Transmission Range	LTE≥2KM
Interface	MESH Antenna	TNC*2
	LTE Antenna	N*2
	4G Antenna	SMA
	WIFI Antenna	SMA
	BD Antenna	SMA
	Intercom	7-core Lemo Head
	Ethernet	RJ45
	4G Card	MINI SIM Card Slot
	UART	4-core Aviation Head
	Power Button	*1
	Power Supply	DC*1
Physical/Environment	Dimensions	330320100mm
	Weight	8kg(w/ battery)
	Working Temp	-40ºC~+65ºC
	IP Rating	IP67
Electrical Parameters	Power Supply	12V
	Battery Capacity	3037dBmh
	Power Consumption	<High Power
