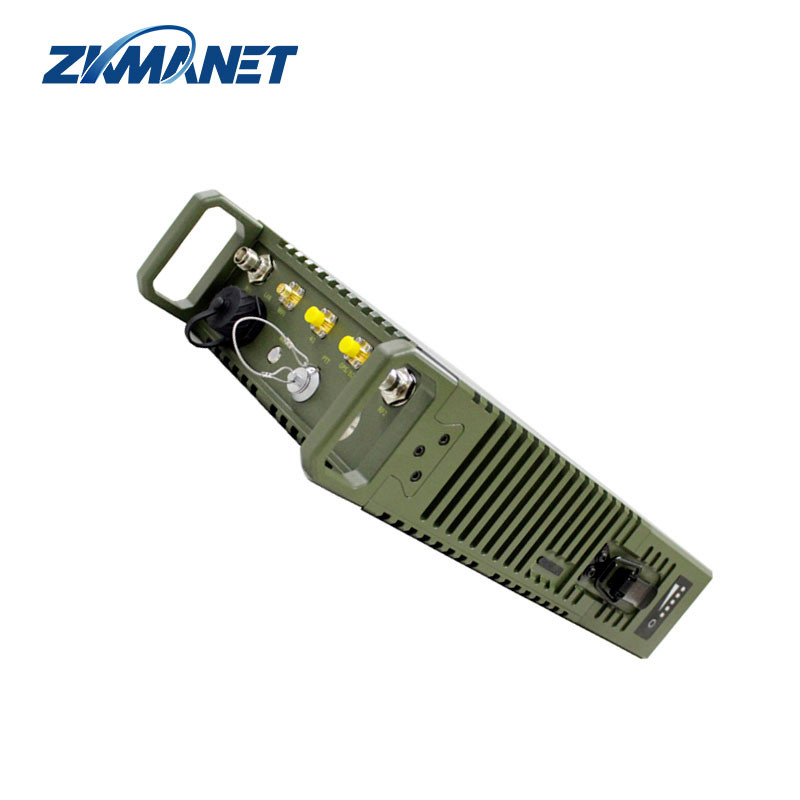

ZKMANET2252UM 4G-LTE WIFI HDMI Video Transmission 1400MHz 4W Manpack Mesh Radio

ZCXH2252UM is a professionally designed Mesh self-organizing network product that can use a variety of communication combinations to evaluate different usage scenarios. The device has a data display screen that can display the device status and device connection status in real time; it can be used on a single soldier's back, or it can be used as a stack using a tripod, or it can be installed at a fixed point, and can also be used on moving vehicles, ships, robots, and unmanned aerial vehicles. It can be used on aircrafts, unmanned ships, etc., anytime and anywhere, with one-click startup without the need to configure or change parameters.

* Supports 4G-LTE network

* Supports LAN and HDMI inputs

* Supports 2.4G MIMO WiFi and GPS/BD

* Supports voice intercom

* Data rate up to 82Mbps

* With LCD to show device parameters in real time

* Optional buttons for parameters configuration

* Full duplex transparent IP data transmission

* Flexible networking and rapid deployment

* Rugged IP66

* Convenient operation and maintenance

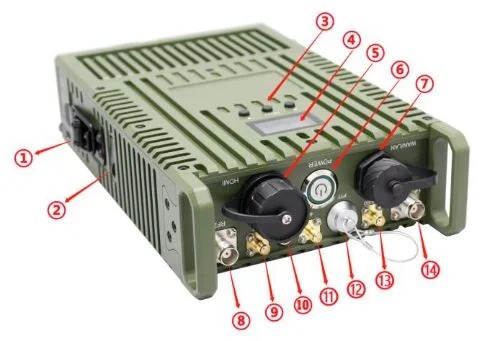

Front View

1- Battery butterfly clasp

2- Power input port for main body

3- Configuration buttons for frequency, bandwidth and distance

4- Digital LCD indicator

5- HDMI input interface

6- Power push button

7- LAN interface (RJ45)

8- MESH antenna interface-2

9- WIFI antenna interface

10- MESH signal LED indicator

11- 4G antenna interface

12- PTT Mic interface

13- GPS/BD antenna interface

14- MESH antenna interface-1

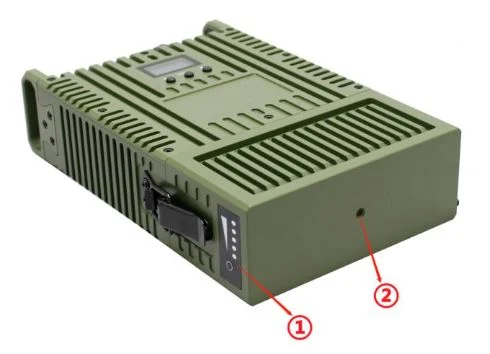

Rear View

1- Battery indicator

2- Mounting hole

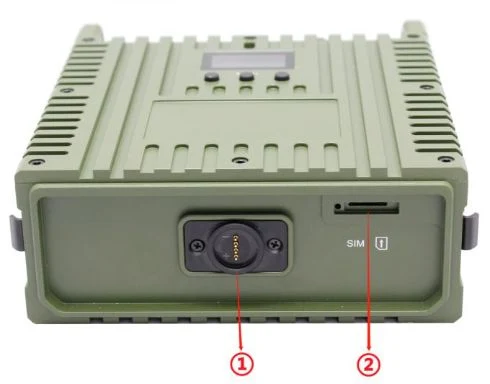

Inner View

1- Battery +/- contact pins

2- SIM card slot

Topology Diagram

* Star Type

* Mesh Type

* Random Type

Application Scenario
