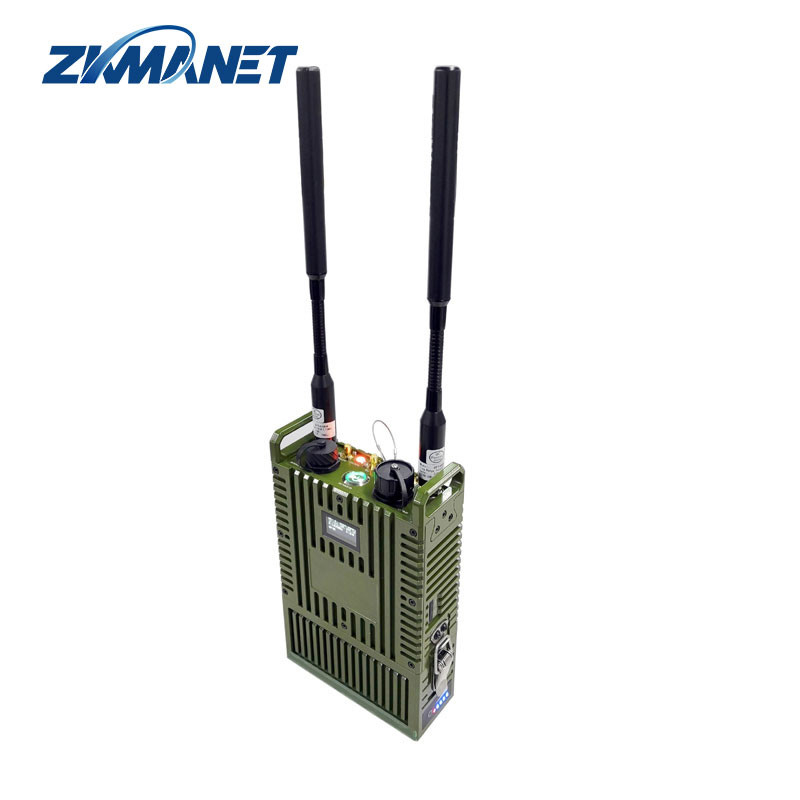

The ZKManet2252UM is a robust MESH radio with an IP66 rating, featuring integrated 4G, GPS/BD, PTT, and 2.4G WiFi capabilities. It supports HDMI and LAN inputs and includes an LCD digital display that provides real-time device status updates. The device is equipped with a convenient buckle-up battery for easy replacement. It can be utilized in various applications, including as a manpack radio, a fixed-point relay, or mounted on mobile platforms such as vehicles, robots, or unmanned ships.
* Supports 4G-LTE network
* Supports LAN and HDMI inputs
* Supports 2.4G MIMO WiFi and GPS/BD
* Supports voice intercom
* Data rate up to 82Mbps
* With LCD to show device parameters in real time
* Optional buttons for parameters configuration
* Full duplex transparent IP data transmission
* Flexible networking and rapid deployment
* Rugged IP66
* Convenient operation and maintenance

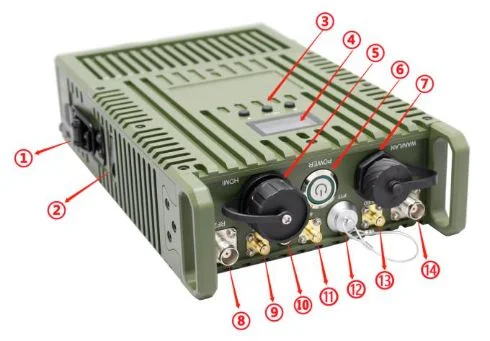

Front View
1- Battery butterfly clasp
2- Power input port for main body
3- Configuration buttons for frequency, bandwidth and distance
4- Digital LCD indicator
5- HDMI input interface
6- Power push button
7- LAN interface (RJ45)
8- MESH antenna interface-2
9- WIFI antenna interface
10- MESH signal LED indicator
11- 4G antenna interface
12- PTT Mic interface
13- GPS/BD antenna interface
14- MESH antenna interface-1

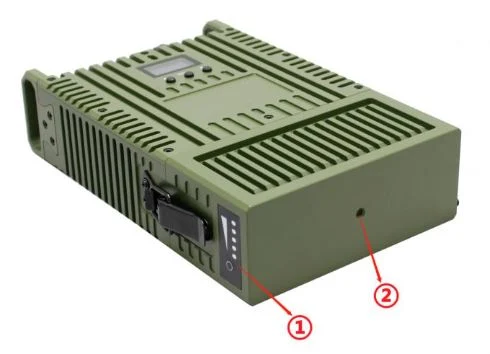

Rear View
1- Battery indicator
2- Mounting hole

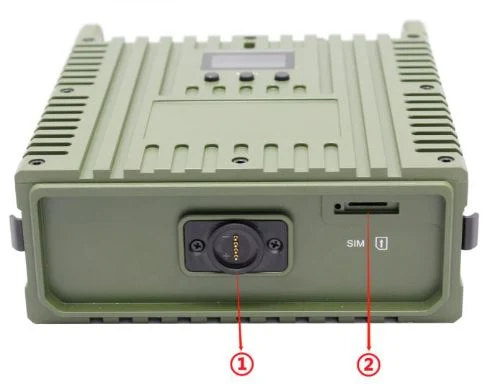

Inner View
1- Battery +/- contact pins
2- SIM card slot
Topology Diagram
* Star Type
* Mesh Type
* Random Type

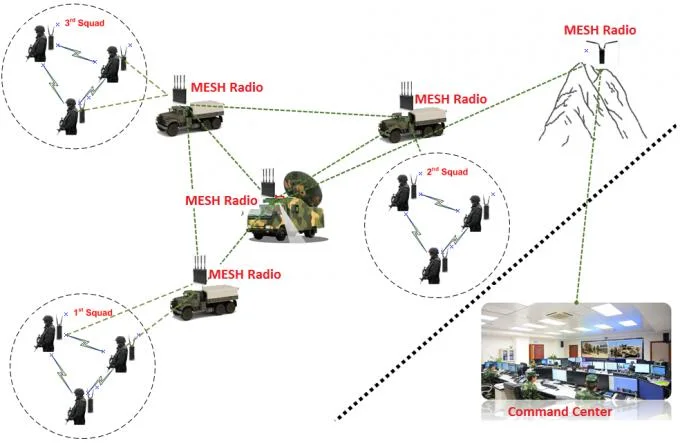

Application Scenario
| Transmission Characteristics |
| Default Frequencies |
1400-1460MHz (562-612MHz) |
| Channel Bandwidth |
5M/10M/20MHz/40MHz |
| RF Channel |
2T2R |
| Output Power |
36dBm (2x2W) |
| WIFI |
2.4G WIFI (2x100mw MIMO) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM
BPSK/QPSK/16-QAM/64-QAM
|
| Data Rate |
Up to 82Mbps |
| Network Capability |
9 hops and no less than 64 nodes |
| Encryption |
AES |
| Electrical Characteristics |
| Working Voltage |
DC 12V |
| Battery Capacity |
1137dBmh |
| Power Consumption |
<16W Average |
| Physical Characteristics |
| Weight |
2.5kg (w/ battery) |
| Dimensions |
240*150*60mm |
| IP Rating |
IP66 |
| Storage Temp. |
-45ºC~85ºC |
| Working Temp. |
-40ºC~65ºC |
| Working Humidity |
5%RH-95%RH (Non-Condensing) |
