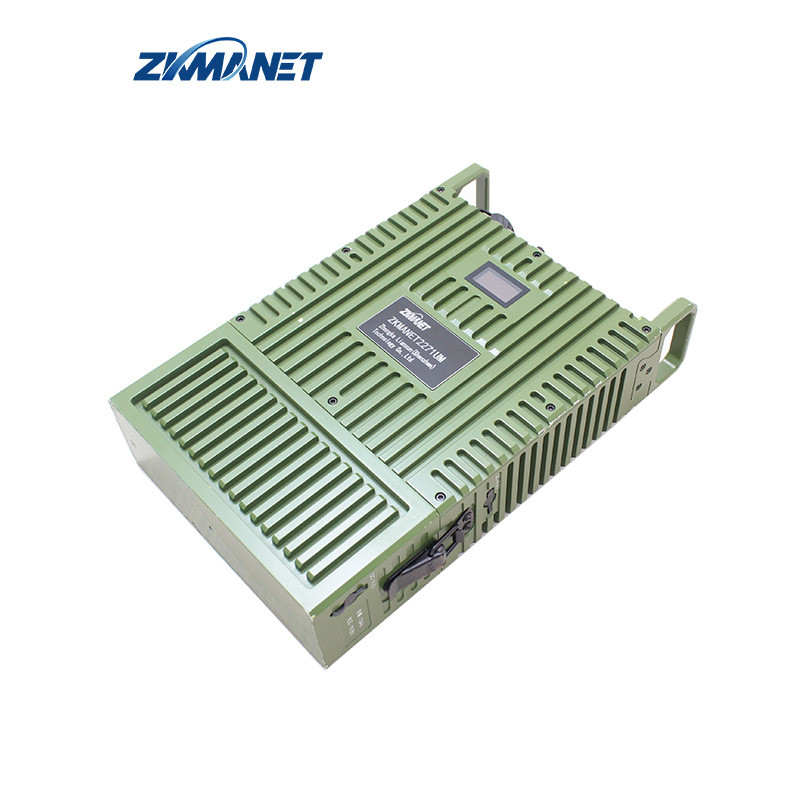

ZKMANET2271UM 40dBm 1.4GHz 2T2R Manet Mesh Backpack Wireless Video Transmission Radio

ZKManet2271UM is a high-power MESH self-organizing network radio with an integrated backpack design, providing a more stable emergency network and longer transmission distance in complex situations. The device comes with a data display screen, showing real-time device status and connection status. It can be worn by a single soldier, used as a relay with a tripod, or installed at fixed points. With a built-in lithium battery for power supply, the product features a sleek appearance, ease of use, powerful functionality, and high reliability.

* Supports two-way intercom
* Full transparent IP data transmission
* Supports 4G (with SIM card slot)
* Supports WIFI connection
* Supports GPS/BD
* Equipped with a display screen to show configuration information and connection status
* Working time ≥4h
* IP66
* Easy to operation

Quick Deployment

Mesh self-organizing network technology enables rapid mobile deployment, allowing for the establishment of a reliable wireless communication network in a short period of time to meet the timeliness requirements of emergency communications.

Strong Stability

Mesh self-organizing network technology features self-healing capabilities, ensuring that even if some devices fail, the entire network can continue to operate stably, preventing communication interruptions.

High Security

Advanced encryption algorithms and security authentication mechanisms are employed to effectively safeguard the security and confidentiality of communication data, preventing information leakage and malicious attacks.

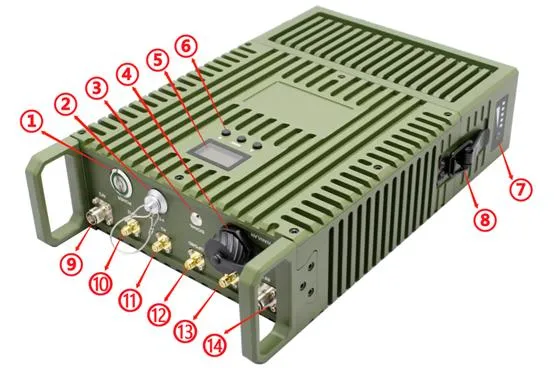

1. Power push button
2. PTT (Mic)
3. MESH signal indicator

SNR	Link Quality	Topology Color
SNR ≥ 17	Excellent	Deep Green
12 ≤ SNR < 17	Good	Light Green
7 ≤ SNR <12	Fine	Yellow
2 ≤ SNR <7	Medium	Orange
-10 < SNR <2	Bad	Red
SNR = -10	Disconnected	N/A

1. LAN interface, RJ45
2. Digital LCD indicator
3. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
4. Battery Indicator
5. Battery butterfly clasp
6. MESH antenna interface-2
7. WIFI antenna interface-2
8. 4G antenna interface
9. GPS/BD antenna interface
10. WIFI antenna interface-1
11. MESH antenna interface-1

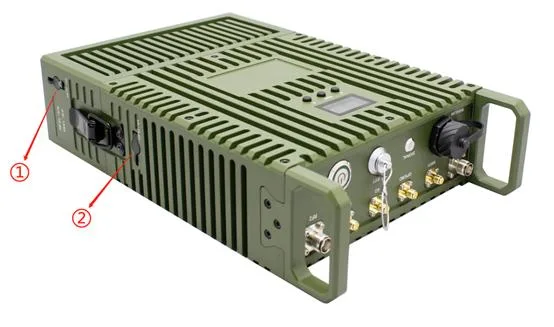

1. Battery charging port
2. Main body power input port

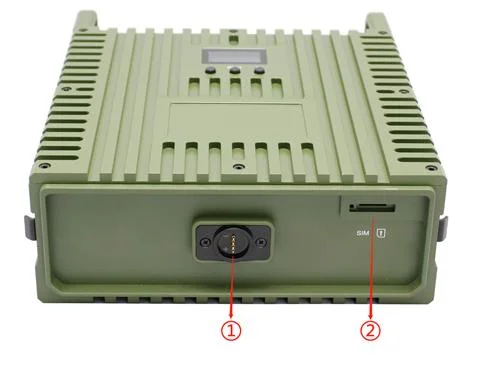

1. Battery +/- contacts
2. SIM card slot
