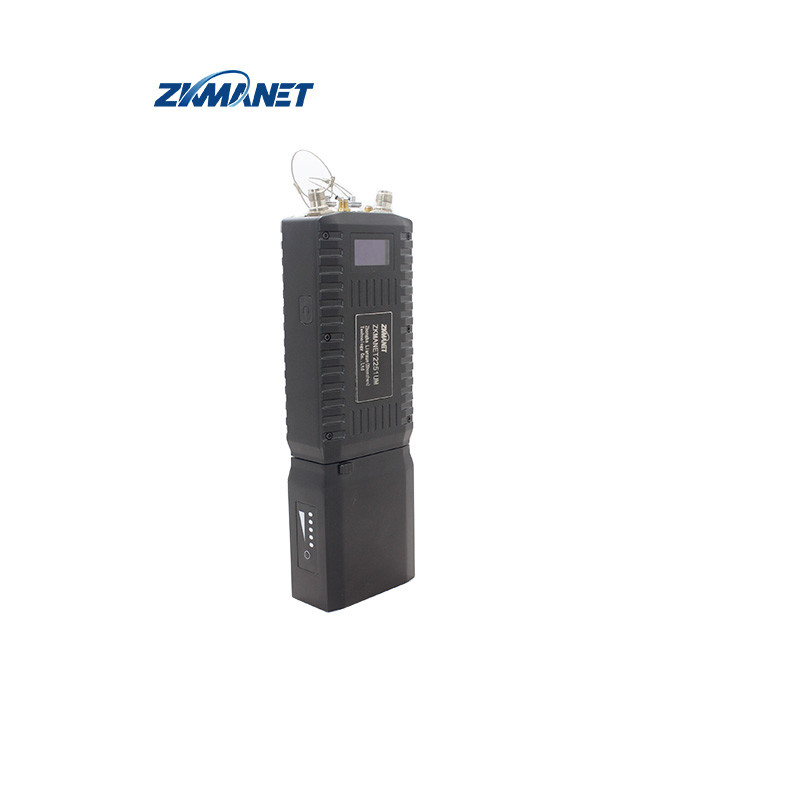

4W 2T2R Handheld Manpack Radio with 82Mbps Video Data and Rugged IP66 Housing

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2251UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 1999~4999

Packaging Details: Brown Carton

Delivery Time: 5~8 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:
Frequency:
1.4GHz (Customizable)
Output Power:
4W
RF Channel:
2T2R
Range:
20-30km (Los)
Network Size:
64 Nodes
Data Rate:
82Mbps
Encryption:
AES
IP Rating:
IP66
Frequency:
1.4GHz (Customizable)
Output Power:
4W
RF Channel:
2T2R
Range:
20-30km (Los)
Network Size:
64 Nodes
Data Rate:
82Mbps
Encryption:
AES
IP Rating:
IP66
4W 2T2R Handheld Manpack Radio with 82Mbps Video Data and Rugged IP66 Housing

4W 2T2R Handheld Manpack Radio with 82Mbps Video Data and Rugged IP66 Housing

Product Description

The ZKManet2251UM is a 4W handheld mesh network device with a transmission rate of up to 82 Mbps. It supports various communication combinations, making it suitable for different scenarios. It features a built-in display screen that can show device status and connection status in real time. The device can be worn by an individual, used in conjunction with a tripod relay, or installed at fixed points. It can also be utilized on moving vehicles, ships, robots, drones, and unmanned boats. With one-click operation, it can be used anytime and anywhere without the need for configuration or parameter changes.

Features

* Supports HDMI input
* Supports voice intercom
* Supports WIFI connection
* Data rate up to 82Mbps
* Supports GPS/BD
* Full-duplex two-way data transmission
* Full IP transparent data transmission
* IP66
* Easy Operation



Quick Deployment

Mesh self-organizing network technology enables rapid mobile deployment, allowing for the establishment of a reliable wireless communication network in a short period of time to meet the timeliness requirements of emergency communications.



Strong Stability

Mesh self-organizing network technology features self-healing capabilities, ensuring that even if some devices fail, the entire network can continue to operate stably, preventing communication interruptions.



High Security

Advanced encryption algorithms and security authentication mechanisms are employed to effectively safeguard the security and confidentiality of communication data, preventing information leakage and malicious attacks.



Specifications

Model ZKManet2251UM Brand ZKMANET
RF Parameters Frequency 1.4GHz (Customizable)
Bandwidth 20MHz (Typical)
RF Channel 2T2R
Output Power 2*2W
Range 20-30km (LOS)
Network Parameters Network Size 64 Nodes
Data Rate 82Mbps(Max)
Encryption AES
Physical/
Environment
Dimensions 246.5*82*42mm
Weight 1.2kg (w/ battery)
Working Temp -20ºC~+65ºC
IP Rating IP66
Electronic Parameters Power Supply 18.5V
Battery Capacity 48Wh
Power Consumption <12W

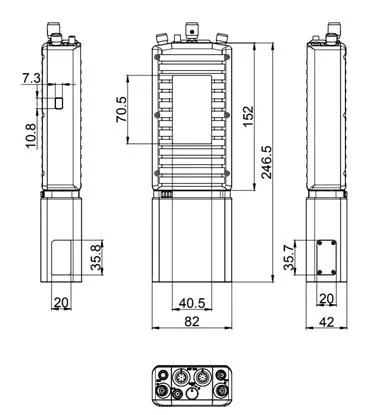

Dimensions

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio

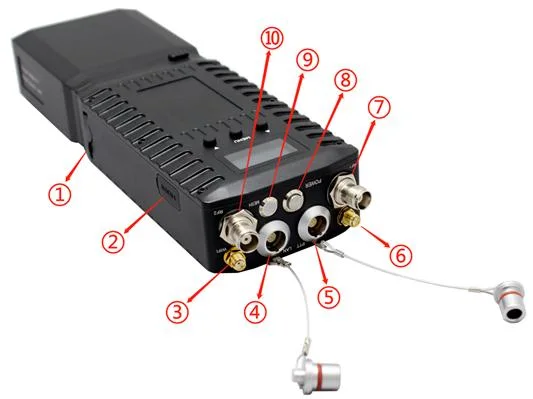

Panel Description

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio
1. Main body power input port
2. HDMI input (mini HDMI interface)
3. WIFI antenna interface
4. LAN input interface
5. Mic input interface
6. GPS/BD antenna interface
7. MESH antenna interface-1
8. Power push button
9. Signal Indicator
10. MESH antenna interface-2

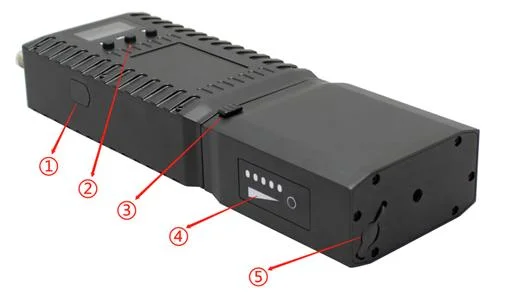

1. 3.5mm audio interface
2. Configuration buttons (optional)
3. Battery locker - push to remove battery
4. Battery Indicator
5. Battery Charging Port
Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio

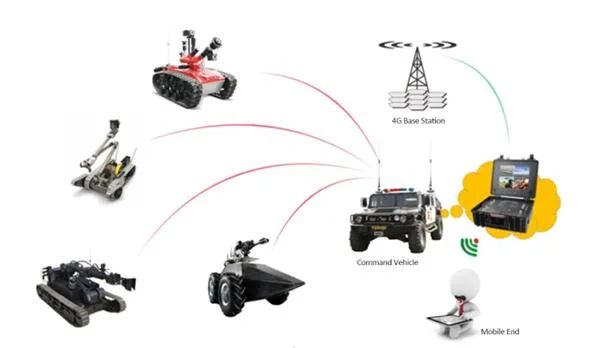

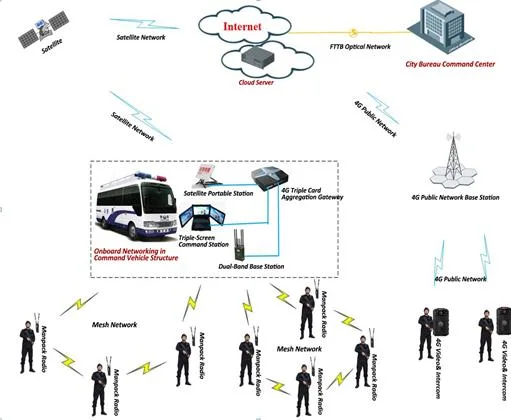

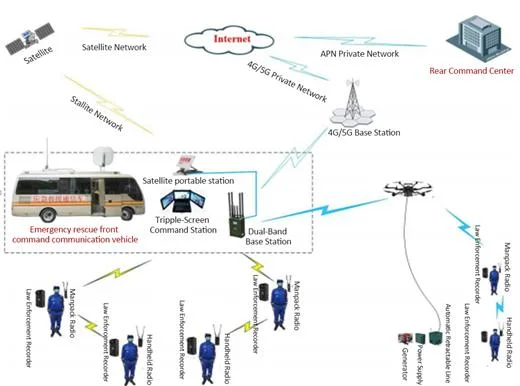

Application

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio

Company Profile

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio
Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio
Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio


Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio
Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio

FAQ

Rugged IP66 20~30km Video Data Voice Transmission Handheld Manpack  Radio
