Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1102R
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 999~1699
Packaging Details: Brown Carton
Delivery Time: 5~8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Bandwidth: |
2-8MHz |
Modulation: |
QPSK(4QAM),16QAM,64QAM |
Receiving Sensitivity: |
-106dBm |
Range: |
1-3km |
RF Interface: |
N-F |
Screen: |
10.1 Inches HD |
Video Compression: |
H.264 |
Weight: |
1.5kg |
Bandwidth: |
2-8MHz |
Modulation: |
QPSK(4QAM),16QAM,64QAM |
Receiving Sensitivity: |
-106dBm |
Range: |
1-3km |
RF Interface: |
N-F |
Screen: |
10.1 Inches HD |
Video Compression: |
H.264 |
Weight: |
1.5kg |

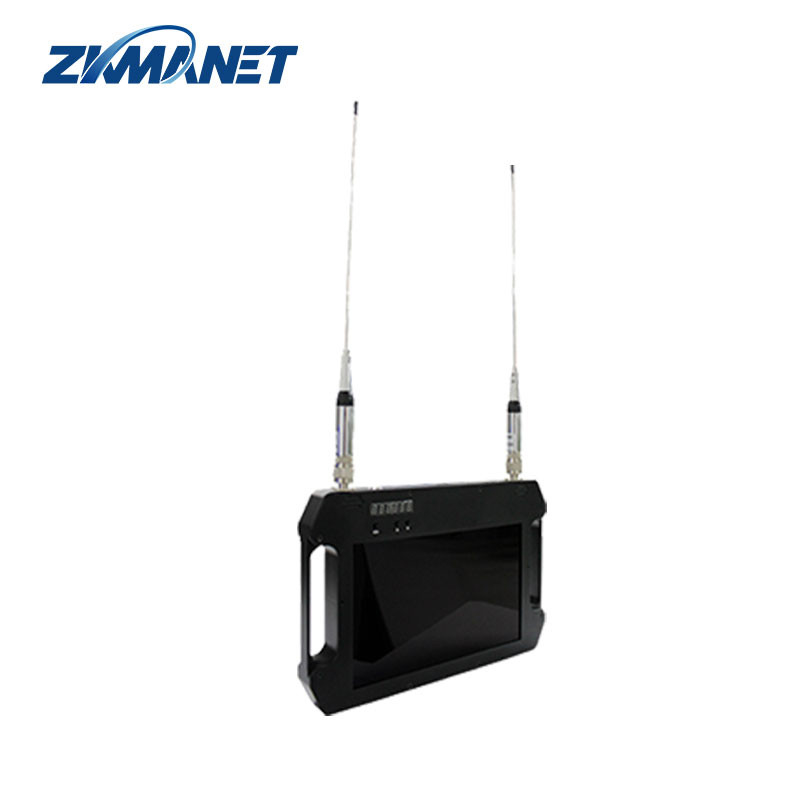

The ZKManet1102R is a portable receiver specifically for use as a temporary command center during daily police and armed police operations. It comes with a built-in display screen, is easy to carry, and simple to operate. Utilizing COFDM modulation technology, the ZKManet1102R encrypts images and data during transmission. It can be paired with the ZKManet1131T transmitter to transmit real-time stable audio and video even in high-speed movement and urban environments with obstacles. Compact in size, it is suitable for providing decision-making support for on-site commanders.
* Compact size and light weight
* Portable design for easy operation
* 10.1 inch high brightness HD display
* Receiving signal under high-speed and NLOS conditions
* With AV output for connecting to external large display
* AES256 encryption
* Built-in battery up to 4 hours endurance
| Model | ZKManet1102R | Brand | ZKMANET |
| RF Parameters | Frequency | 300MHz-2.7GHz Customizable | |
| Modulation | QPSK(4QAM),16QAM,64QAM | ||
| Bandwidth | 2-8MHz | ||
| Receiving Sensitivity | -106dBm | ||
| Encryption | AES | ||
| Range | 1-3km | ||
| RF Interface | N-F | ||
| Video Parameters | Screen | 10.1 inches HD | |
| Video Output | HD:HDMI | ||
| SD:RCA-F | |||
| Video Modulation | HD:1080P@60 | ||
| SD:720*480 | |||
| Video Compression | H.264 | ||
| Video Memory | TF Card(128G Max); File system:FAT32 |
||
| Physical/Environment | Dimensions | 300*200*30mm | |
| Weight | 1.5kg | ||
| Working Temp | -10ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4000mAh | ||
| Power Consumption | <40dBm | ||
Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police non combat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
