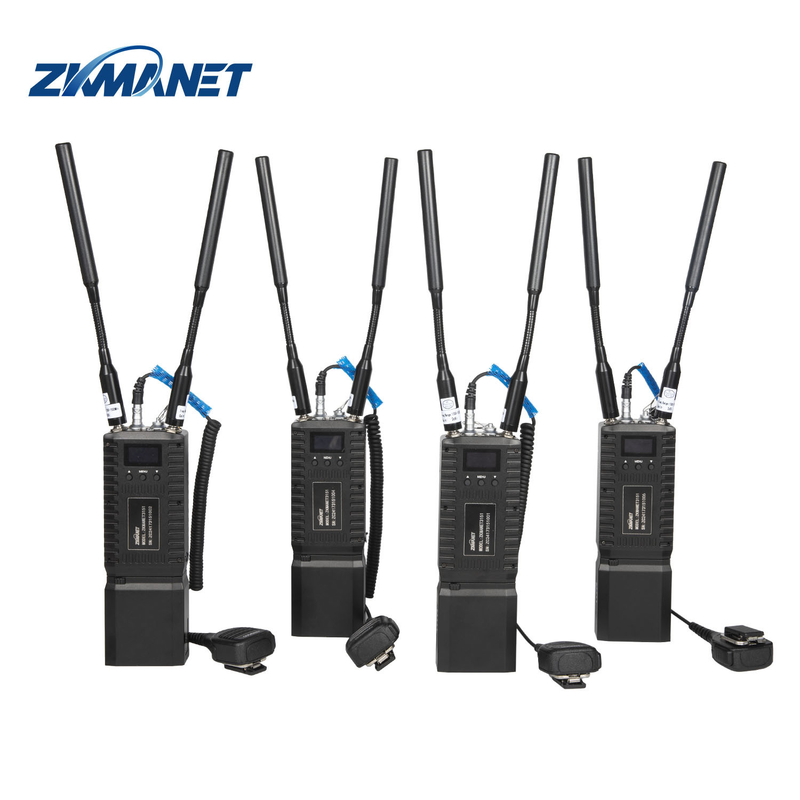

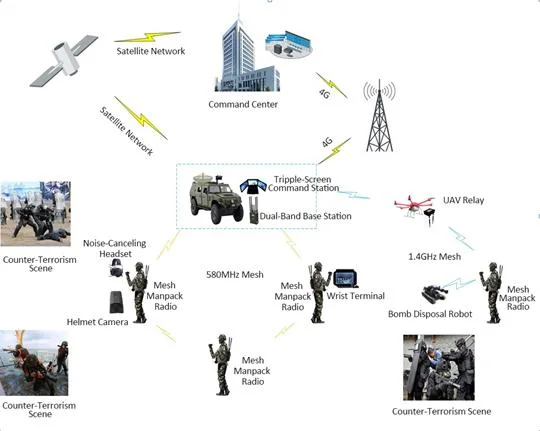

The ZKManet3151 is a high-performance, high-stability mesh self-organizing network product with FPGA program, which can be used in a variety of communication combinations and applied to different use scenarios. The device with data display, real-time display of device status and device connection status; can be used on the back of a single soldier, you can also use a tripod as a relay, can also be installed at a fixed point, but also in the mobile vehicles, ships, robots, drones, unmanned ships, and so on above the use of anytime, anywhere, a key to open the use of the device, without the need to configure and change the parameters!
Features
* Frequency 1300-1500MHz (70MHz-6GHz customizable)
* Data rate up to 56Mbps
* Full transparent IP data transmission
* Supports PTT voice intercom
* Supports GPS/BD/GLONASS (GNSS)
* HDMI input as optional
* Supports WIFI
* Easy operation
| RF Parameters |
| Default Frequencies |
1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth |
2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform |
TDD-COFDM (2T2R) |
| Output Power |
2x2W, 1dBm step adjustable |
| Receive Sensitivity |
-100dBm@2.5MHz |
| Modulation Type |
BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS |
Optional (>1000 hop/s) |
| IFS |
Optional |
| Network Parameters |
| Network Size |
Up to 32 nodes |
| Multi-hop Capability |
15 hops (short message); 10 hops (voice); 8 hops (video) |
| Range |
20-30km (Air-to-Ground LOS)
3-10 km (Ground-to-Ground LOS)
|
| Data rate |
Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay |
7ms@2.5MHz/hop |
| Movement Speed |
>1000km/h |
| Start Time |
27s |
| Positioning |
GPS/BD/GLONASS (GNSS) |
| Network Access Time |
<1s |
| Network Extension |
WIFI AP |
| Physical/Environment |
| Weight |
1.2kg (with battery) |
| Dimensions |
246.5*82*42mm |
| IP Rating |
IP66 |
| Working Temp. |
-40°C~70°C |
| Electrical Parameters |
| Working Voltage |
18.5V (15-21V) |
| Power Consumption |
≤237dBm |
| Battery Life |
6 hours |
| Interface |
| LAN Interface |
1*LAN |
| Voice Interface |
PTT Mic (7-pin LEMO connector*1) |
| Video Interface |
Mini HDMI*1 |

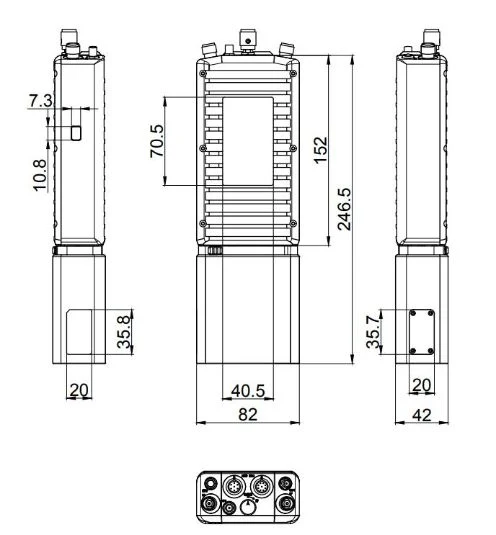

Dimensions

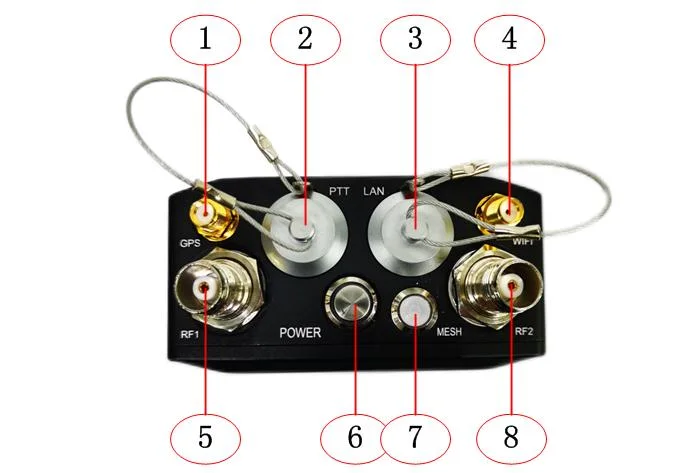

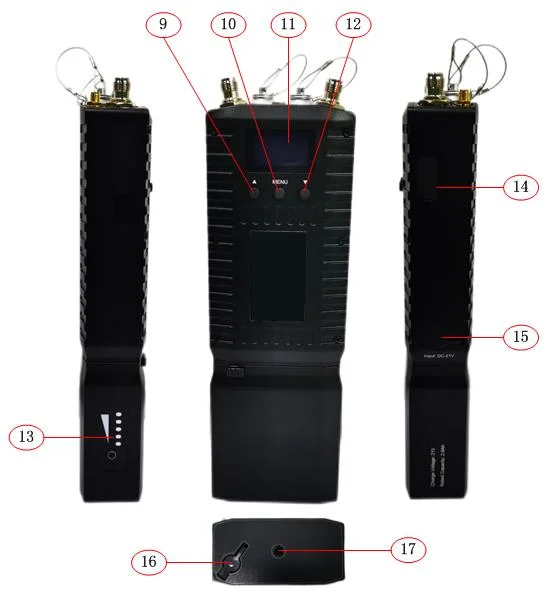

Panel Description
1- GPS Antenna Interface
2- Hand Marker Interface
3- Ethernet port
4- WI-FI Antenna Interface
5- MESH Antenna Interface
6- Power on button
7- Signal indicator
8- MESH Antenna Interface
9- Modify Parameter Keys
10- Modify Parameter Keys
11- Monitor
12- Modify Parameter Keys
13- Battery level display
14- HDMI Antenna
15- Charging port
16- Charging port
17-Tripod Interface
We are a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police non combat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
Zhongke Lianxun (Shenzhen) Co.,Ltd has multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
Our Patents

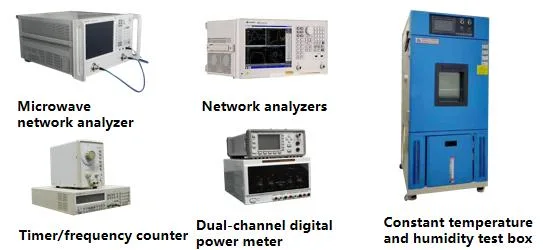

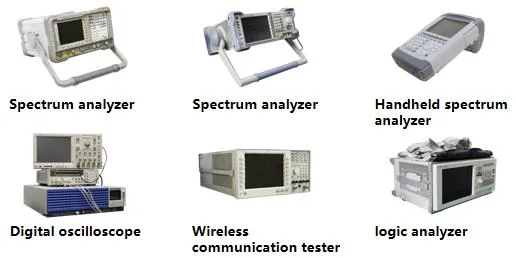

Test Equipments
