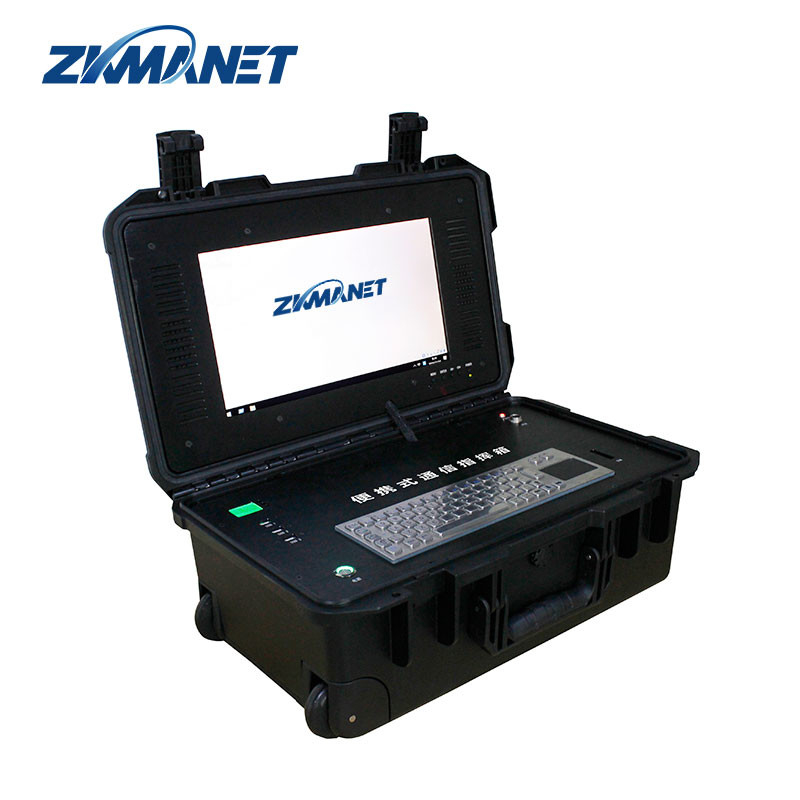

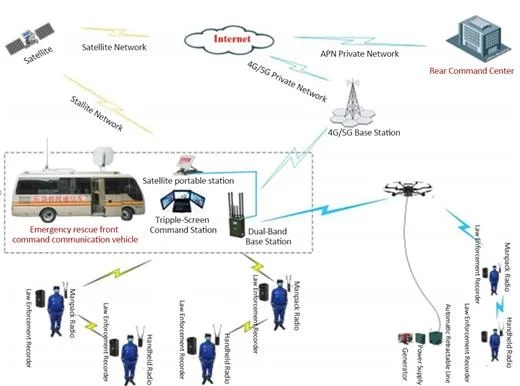

The ZKManet2951 portable command station is a high-reliability mobile Mesh product developed for on-site command. It can manage and set up various Mesh nodes within the network through link management, allowing users to view the signal strength of each link, video and data information of each node, display front-end video in real-time, and conduct voice intercom. The Mesh command box can serve as a front command post and can also transmit data back to the main command center through 4G/5G private networks or public networks to coordinate operations.
* Integrated IPC for easy operation
* Infrastructure-less, self configuring and self healing
* Supports 1400-1480MHz (350MHz-4GHz customizable)
* Data rate up to 82Mbps
* Range up to 1-10km NLOS
* Supports up to 9 hops and no less than 64 nodes
* Full transparent IP data transmission
* Supports two-way intercom
* HDMI output as optional
* Supports 2.4G/5.8G WIFI and 4G connection
* Supports AES256 encryption
* Battery endurance up to 4-5 hours
* Rugged IP65 housing
* Low system latency

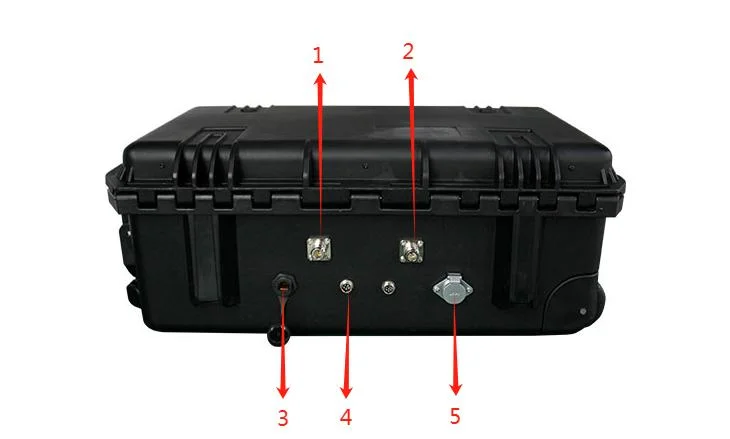

- MESH Antenna Interface
- Antenna Interface (Reserved)
- Data Interface (Reserved)
- LAN Port (RJ45)
- Power Input Port

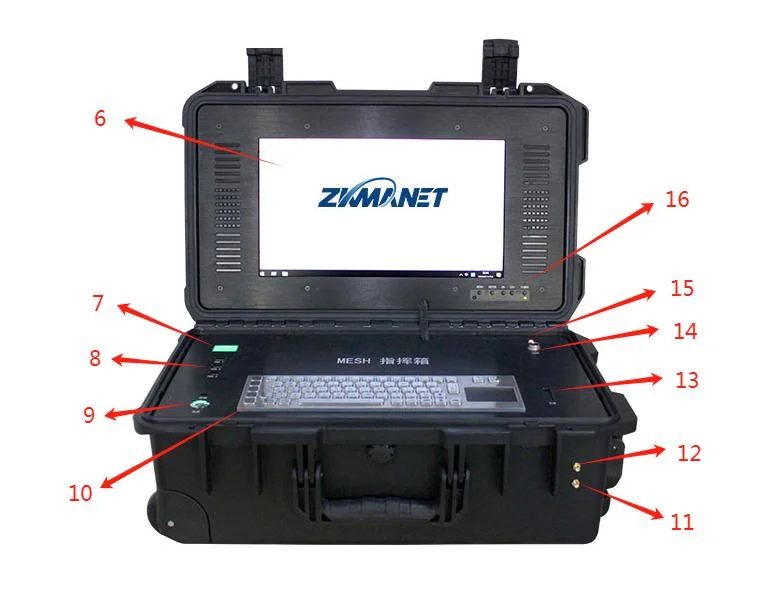

- Screen
- Battery Display
- USB Ports
- Power Switch
- Keyboard
- WIFI Antenna Interface
- 4G Antenna Interface
- SIM Card Slot
- Mic Interface
- Signal Indicator
- Display Switching Panel
| Host Characteristic |
| OS |
WIN10 64-bit |
| CPU |
Intel I7 |
| Display |
15.6-inch HD high-gloss screen |
| Memory |
8G |
| Storage Method |
250G Solid State Drive |
| Mode of Operation |
Embedded Mouse and Keyboard |
| Transmission Characteristics |
| Frequency |
1.4G Hz (300MHz-3.8GHz customizable) |
| Bandwidth |
5M/10M/20MHz/40MHz |
| Output Power |
36dBm (4W MIMO 2x2) |
| Modulation |
DSSS/CCK BPSK/QPSK OFDM
BPSK/QPSK/16-QAM/64-QAM
|
| FEC Code |
1/2,2/3,3/4,5/6 |
| Digital Sensitivity |
96dBm@5MHz BPSK |
| Data Rate |
Up to 82Mbps |
| Network Capabilities |
9 hops and no less than 64 nodes |
| Data Characteristics |
| RF Interface |
N*2,SMA*2 |
| LAN Interface |
RJ45 Waterproof Interface |
| Intercom Interface |
7-pin Connector |
| Video Output |
HDMI |
| Power Input |
3-pin Aviation Connector |
| 4G Function |
Full Network Access |
| Signal Indicator |
1x Dual Color Signal Indicator |
| Power Switch |
Self-resetting Switch with Light |
| Encryption |
AES256 |
| Electrical Characteristics |
| Voltage & Current |
DC12 V, ≤ 3A |
| Power Consumption |
Average 36W |
| Battery Capacity |
21Ah |
| Physical Characteristics |
| Operating Temperature |
-20~+55ºC |
| Storage Temperature |
-40ºC~ +65ºC |
| Dimensions |
577*353*211mm |
| Weight |
15kg(w/ Battery) |
| IP Rating |
IP65 |
Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
We provide design and development services for internet big data collection and analysis products and application solutions to large enterprises and institutions with confidentiality needs. Additionally, we offer sales of network security equipment and information security technical services. Our products are widely used by law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime affairs.
We hold several patents with independent intellectual property rights and have developed a robust quality management system that adheres to ISO9001 standards, as well as national standards. Our production processes strictly follow these national guidelines and internationally recognized standards, including CCC, CE, and FCC. Additionally, we have received the Radio Transmission Equipment Model Approval Certificate from the Ministry of Industry and Information Technology of China and have successfully completed wireless product testing certification by the Ministry of Public Security.
Our Patents

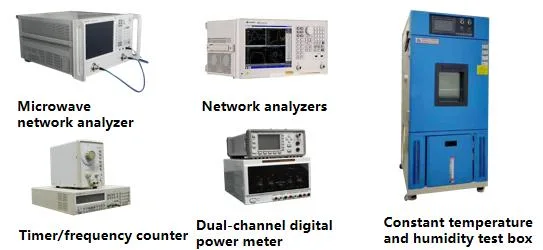

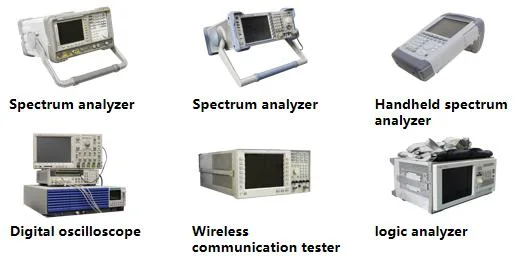

Test Equipments
