Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet2261UM
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 1999~4999
Packaging Details: Brown Carton
Delivery Time: 5~8 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Frequency: |
1412MHz-1484MHz (537MHz-609MHz) |
Bandwidth: |
5M/10M/20MHz/40MHz |
RF Channel: |
2T2R |
Output Power: |
40dBm (2x37dBm) |
WIFI: |
2.4G/5.8G |
Data Rate: |
82Mbps |
Network Capability: |
9 Hops And No Less Than 64 Nodes |
Encryption: |
AES |
Frequency: |
1412MHz-1484MHz (537MHz-609MHz) |
Bandwidth: |
5M/10M/20MHz/40MHz |
RF Channel: |
2T2R |
Output Power: |
40dBm (2x37dBm) |
WIFI: |
2.4G/5.8G |
Data Rate: |
82Mbps |
Network Capability: |
9 Hops And No Less Than 64 Nodes |
Encryption: |
AES |
The ZKManet2261UM is a 40dBm mobile MESH network base station that offers a bandwidth of up to 82Mbps and features AES encryption for enhanced security. This device is versatile and can be deployed in multiple scenarios, including fixed installations, on moving vehicles, ships, or unmanned vessels. It enables straightforward one-click activation without requiring any configuration adjustments, ensuring reliable network connectivity even in challenging long-distance environments.
* High bandwidth up to 82Mbps
* Supports 2.4G/5G dual-band WIFI
* Full IP duplex transparent data transmission
* Flexible networking and rapid deployment
* Rugged IP66
* Compact size and light weight
* Convenient operation and maintenance
* One-click use

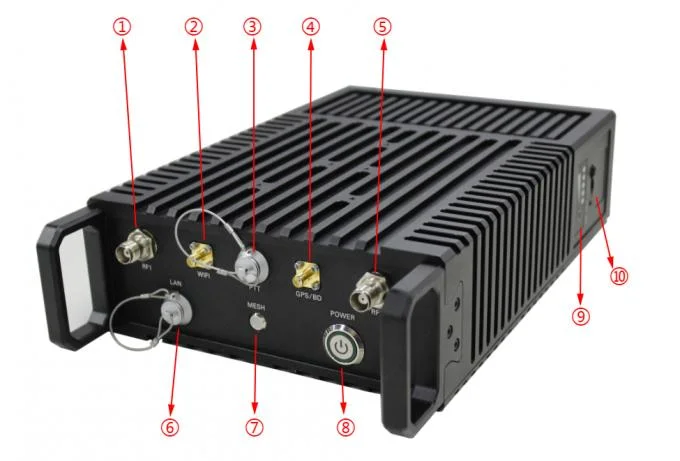

1 MESH antenna interface-1
2 WIFI antenna interface
3 PTT interface (Mic)
4 GPS/BD antenna interface
5 MESH antenna interface-2
6 LAN interface
7 MESH LED indicator
8 Power push button
9 Battery Indicator (Reserved)
10 Power Input interface (DC 24V)
| Transmission Characteristics | |
| Default Frequencies | 1412MHz-1484MHz (537MHz-609MHz) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 40dBm (2x37dBm) |
| WIFI | 2.4G/5.8G WIFI (2x100mw) |
| Modulation Type |
DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Electrical Characteristics | |
| Working Voltage | DC 24V |
| Power Consumption | <60W Average |
| Physical Characteristics | |
| Weight | <5kg |
| Dimensions | 320*200*76mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
We hold several patents with independent intellectual property rights and have developed a robust quality management system that adheres to ISO9001 standards, as well as national standards. Our production processes strictly follow these national guidelines and internationally recognized standards, including CCC, CE, and FCC. Additionally, we have received the Radio Transmission Equipment Model Approval Certificate from the Ministry of Industry and Information Technology of China and have successfully completed wireless product testing certification by the Ministry of Public Security.
Our Patents

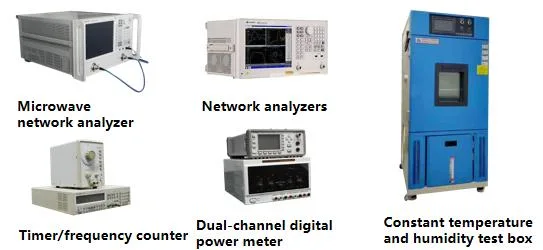

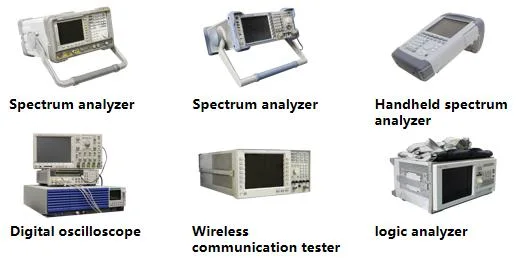

Test Equipments
