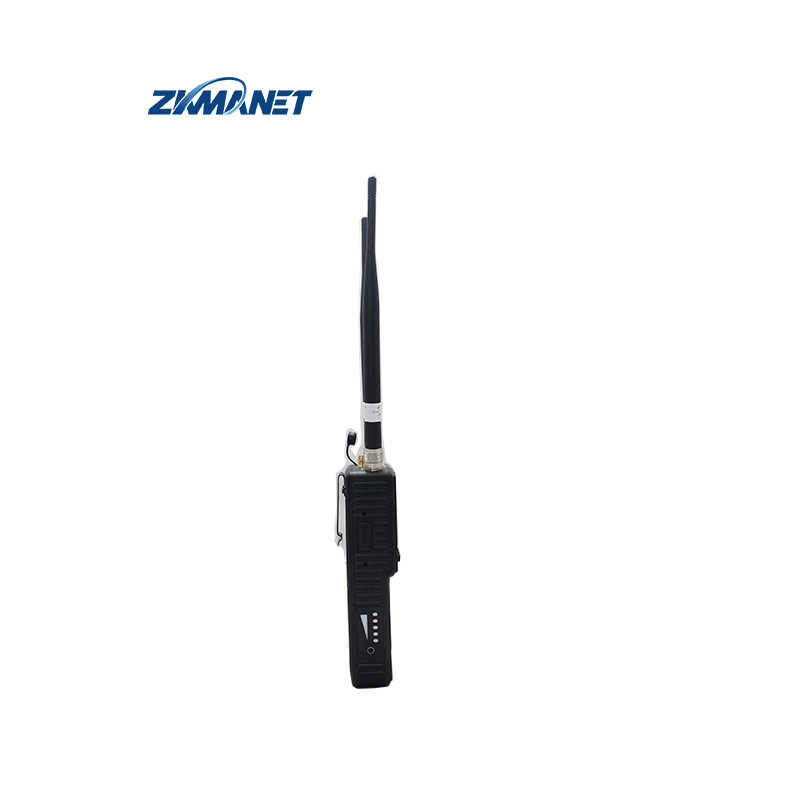

Rugged IP66 1W 2T2R Handheld Mesh WiFi Voice Intercom Radio Receiver And Transmitter

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2132UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 1999 Per Piece

Packaging Details: Brown Carton

Delivery Time: 4 working weeks

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:
Frequency:
1.4GHz (300MHz-3.8GHz Customizable)
Bandwidth:
5/10/20/40MHz
RF Channel:
2T2R
Output Power:
1W
Range:
1-2km
Data Rate:
82Mbps
Encryption:
AES
IP Rating:
IP66
Frequency:
1.4GHz (300MHz-3.8GHz Customizable)
Bandwidth:
5/10/20/40MHz
RF Channel:
2T2R
Output Power:
1W
Range:
1-2km
Data Rate:
82Mbps
Encryption:
AES
IP Rating:
IP66
Rugged IP66 1W 2T2R Handheld Mesh WiFi Voice Intercom Radio Receiver And Transmitter

Rugged IP66 1W 2T2R Handheld Mesh WiFi Voice Intercom Radio Receiver And Transmitter

Product Description

The ZKManet2132UM is a portable MESH radio equipped with dual transmitters and receivers, enabling it to support both the MESH self-organizing network's multi-hop relay capability and Wi-Fi hotspot functionality. It includes BD/GPS positioning, an HDMI HD interface, and a 3.5mm audio jack, allowing for HD video input and voice intercom communication. Notably, it is compact, lightweight, easy to carry, and boasts a long battery life thanks to its built-in lithium battery, along with several other impressive features.

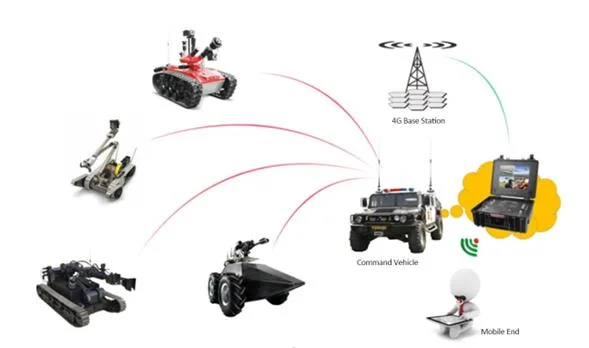

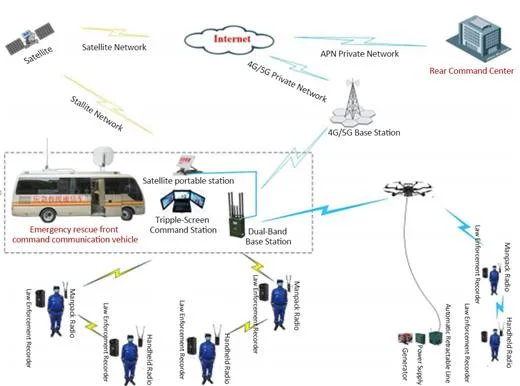

Solutions

In some cities with weak public networks or remote areas, such as mountainous regions, forests, and enclosed tunnels, large fleets involved in security, transportation, and other operations face challenges. Traditional communication methods (such as 4G/5G public networks, 4G public intercom cluster communication, and urban intercom private networks) cannot provide adequate coverage in these areas. As a result, the communication smoothness for fleets in such regions cannot be effectively guaranteed, leading to delays in responding to emergencies and potential risks. This lack of situational awareness hampers decision-making and makes it difficult to issue commands effectively. To address the shortcomings of traditional communication equipment, our Mesh self-organizing network devices offer intelligent application solutions for broadband wireless communication for moving fleets.

Features

* Supports voice intercom
* Data rate up to 82 Mbps
* Full IP duplex transparent data transmission
* Rugged IP66
* Supports 2.4G WIFI connection
* Compact size and light weight
* Easy Operation

Specifications

Model ZKManet2132UM Brand ZKMANET
RF Parameters Frequency 1.4GHz (300MHz-3.8GHz Customizable)
Bandwidth 5/10/20/40MHz
RF Channel 2T2R
Output Power 1W
Range 1-2km
Network Parameters Network Size 64 Nodes
Data Rate 82Mbps
Encryption AES
WIFI 2.4GHz
Physical/Environment Dimensions 168*74*33mm
Weight 729g (w/ battery)
Working Temp -20ºC~+65ºC
IP Rating IP66
Electronic Parameters Power Supply 12V
Working Time 4h
Power Consumption <6W

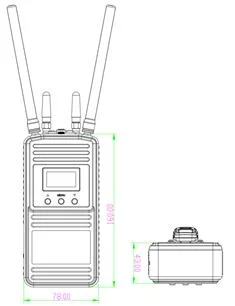

Dimensions

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter

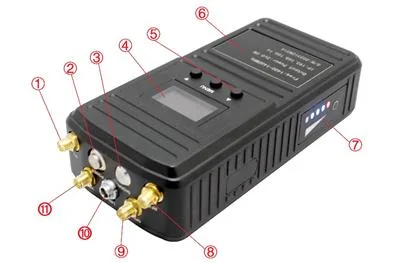

Panel Description

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
  1. MESH antenna interface, SMA F
  2. Power push button
  3. Signal indicator
  4. LCD display
  5. Configuration buttons - up, down and confirm
  6. Nameplate
  7. Battery indicator
  8. MESH antenna interface, SMA F
  9. GPS/BD antenna interface
  10. LAN interface - 4-pin female LEMO connector.
  11. WIFI antenna interface

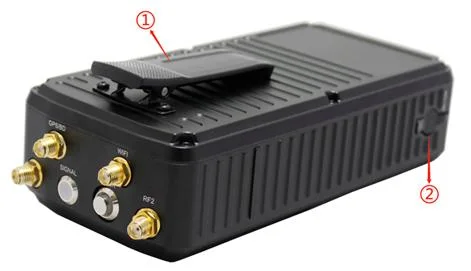

  1. Hang buckle
  2. Charging port
1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter

Company Profile

Zhongke Lianxun (Shenzhen) Technology Co., Ltd. was established in 2005. We focus on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. With excellent quality and advanced technology, we provide comprehensive network communication solutions to our customers.

Our chief scientist team, led by professors from the Network Security Institute of Wuhan University, has achieved remarkable results in the development of man-in-the-middle platforms for network security. The company currently offers platforms such as a drone denial system platform, long-distance wireless video transmission platform for drones, network encrypted data analysis platform, IPSEC man-in-the-middle platform, and SSH man-in-the-middle analysis platform.

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter

FAQ

1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
1W 82Mbps IP66 Handheld Mesh WiFi Voice Intercom Radio Receiver and Transmitter
