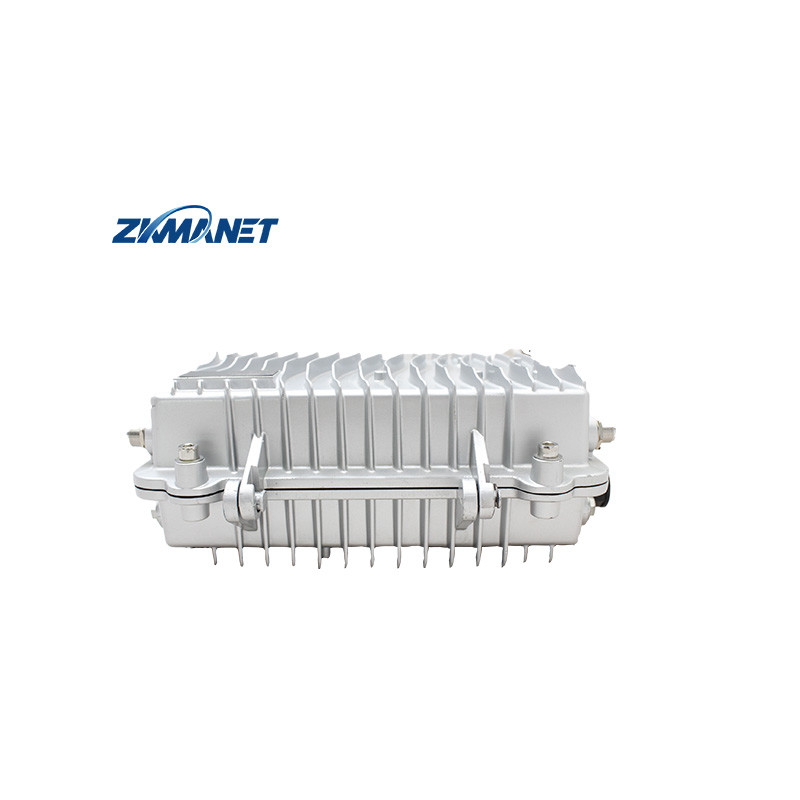

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver

Name: 1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2712
Price: 4,249.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMNET

Certification: CE,ISO9001

Model Number: ZKManet2712

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 3499~4999

Packaging Details: Brown Carton

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:

Frequency:	2.4G/5.8G	Bandwidth:	10/20/40MHz
RF Channel:	4T4R	Output Power:	1.4G:4W 5.8G:2W
Network Capacity:	64	Date Rate:	90Mbps
Range:	10-20km(LOS)	Dimensions:	286216122mm

Frequency:	2.4G/5.8G
Bandwidth:	10/20/40MHz
RF Channel:	4T4R
Output Power:	1.4G:4W 5.8G:2W
Network Capacity:	64
Date Rate:	90Mbps
Range:	10-20km(LOS)
Dimensions:	286216122mm

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver

ZKManet2712 is a high-performance and highly stable MESH AD hoc fusion base station product, which supports 1.4G and 5.8G fusion communication, with WIFI hotspot, and realizes different types of wireless coverage networking such as point-to-multipoint or point-to-point and MESH AD hoc networking by matching directional, omnidirectional and sector antenna types. With advanced industrial design concepts such as anti-surge/static electricity and anti-salt spray corrosion, it can meet all kinds of complex electromagnetic environments and around-the-clock uninterrupted work in harsh climates.

* Support up to 2.4GHz and 5.8GHz Converged communication
* Bandwidth up to 90Mbps; 64 nodes for Network capacity
* Rugged: IP67
* Long Range up to 10~20km (LOS)

Model	ZKManet2712
RF parameters	Frequency	2.4G/5.8G
	Bandwidth	10/20/40MHz
	RF Channel	4T4R
	Output Power	1.4G:4W 5.8G:2W
Network parameters	Network capacity	64
	Date Rate	90Mbps
	Encryption	AES
	Range	10-20km(LOS)
Physics/Environment	Dimensions	286216122mm
	Weight	3.2kg
	Working Temp	·-40ºC +65ºC
	IP Rating	IP67
Electrical parameters	Power supply	12V
Electrical parameters	Power Consumption	≤24W

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 0

1. MESH Antenna Interface -N female
2. Power Input Port - DC 12V
3. WIFI Antenna Interface (Reserved)
4. MESH Antenna Interface -N female
5. LAN Interface - RJ45
6. Antenna Interface - Reserved
7. Antenna Interface - Reserved
8. Signal Indicator

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 1

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 2

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 3

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 4

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 5

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 6

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 7

1.4GHz+5.8GHz Converged Communication Range 10-20km Base Station Transceiver 8
