The ZKManet3151 is a manpack self-organizing network radio (optional: adaptive frequency selection radio/ frequency hopping radio), with a customizable transmission frequency range from 70M to 6G. It adopts our new-generation multi-hop self-organizing network protocol wireless technology, which has the ability to adaptively select frequencies and hop frequencies in complex channel environments, enabling broadband service transmission in complex scenarios. It enables networking between individual soldiers, vehicles, drones, and fixed points, allowing users to quickly establish dedicated networks in emergency situations. This provides users with stable wireless transmission channels for voice, IP data, video, and other communication needs.
Frequency 1300-1500MHz (70MHz-6GHz customizable)
Data rate up to 56Mbps
Full transparent IP data transmission
Supports PTT voice intercom
Supports GPS/BD/GLONASS (GNSS)
HDMI input as optional
Supports WIFI
Easy operation
IP66
| RF Parameters |
| Default Frequencies |
1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth |
2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform |
TDD-COFDM (2T2R) |
| Output Power |
2x2W, 1dBm step adjustable |
| Receive Sensitivity |
-100dBm@2.5MHz |
| Modulation Type |
BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS |
Optional (>1000 hop/s) |
| IFS |
Optional |
| Network Parameters |
| Network Size |
Up to 32 nodes |
| Multi-hop Capability |
15 hops (short message); 10 hops (voice); 8 hops (video) |
| Range |
20-30km (Air-to-Ground LOS)
3-10 km (Ground-to-Ground LOS) |
| Data rate |
Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay |
7ms@2.5MHz/hop |
| Movement Speed |
>1000km/h |
| Start Time |
27s |
| Positioning |
GPS/BD/GLONASS (GNSS) |
| Network Access Time |
<1s |
| Network Extension |
WIFI AP |
| Physical/Environment |
| Weight |
1.2kg (with battery) |
| Dimensions |
246.5*82*42mm |
| IP Rating |
IP66 |
| Working Temp. |
-40°C~70°C |
| Electrical Parameters |
| Working Voltage |
18.5V (15-21V) |
| Power Consumption |
≤237dBm |
| Battery Life |
6 hours |
| Interface |
| LAN Interface |
1*LAN |
| Voice Interface |
PTT Mic (7-pin LEMO connector*1) |
| Video Interface |
Mini HDMI*1 |

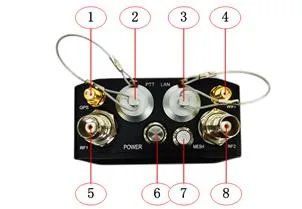

1- GPS Antenna Interface
2- Hand Marker Interface
3- Ethernet port
4- WI-FI Antenna Interface
5- MESH Antenna Interface
6- Power on button
7- Signal indicator
8- MESH Antenna Interface

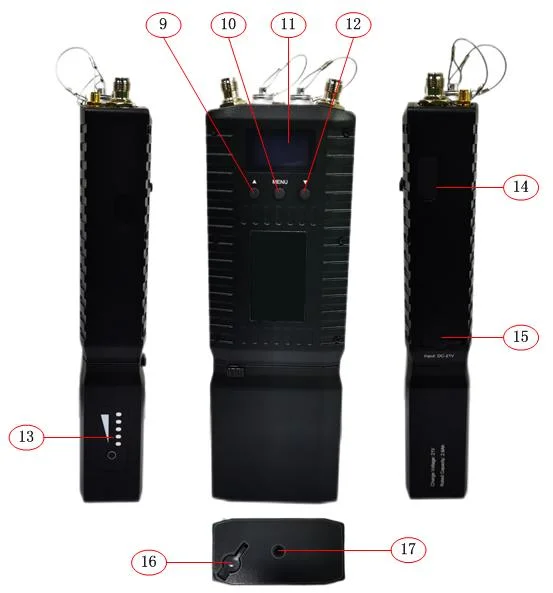

9- Modify Parameter Keys
10- Modify Parameter Keys
11- Monitor
12- Modify Parameter Keys
13- Battery level display
14- HDMI Antenna
15- Charging port
16- Charging port
17-Tripod Interface
Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc. The products are widely used in law enforcement agencies and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime affairs.
We hold numerous patents with independent intellectual property rights and have developed a robust quality management system that adheres to ISO9001 standards, as well as national standards. Our production processes strictly follow these national guidelines and internationally recognized standards, including CCC, CE, and FCC. Additionally, we have received the Radio Transmission Equipment Model Approval Certificate from the Ministry of Industry and Information Technology of China and have successfully completed wireless product testing certification from the Ministry of Public Security.
Our Patents

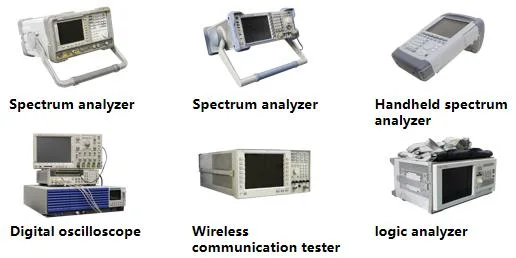

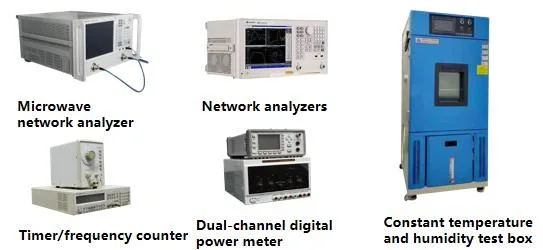

Test Equipments
