Rugged IP66 HD 1080P Wireless Outdoor Video Surveillance Cameras PTZ with Linux OS

Name: Rugged IP66 HD 1080P Wireless Outdoor Video Surveillance Cameras PTZ with Linux OS
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet6804
Price: 1,999.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet6804

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 999~2999

Packaging Details: Brown Carton

Delivery Time: 5~8 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                wireless video surveillance cameras, outdoor video surveillance cameras, camera surveillance video


OS:	Built-in Linux	Resolution:	25601440/19201080/1280*720
Minimum Illumination:	Color:0.05Lux@F1.6 Black:0.005Lux@F1.6	Horizontal Range:	360 ° Continuous Rotation
Vertical Range:	-15~90°	Weight:	4kg
IP Rating:	IP66	Dimensions:	170170277mm

OS:	Built-in Linux
Resolution:	25601440/19201080/1280*720
Minimum Illumination:	Color:0.05Lux@F1.6 Black:0.005Lux@F1.6
Horizontal Range:	360 ° Continuous Rotation
Vertical Range:	-15~90°
Weight:	4kg
IP Rating:	IP66
Dimensions:	170170277mm

Rugged IP66 HD 1080P Wireless Outdoor Video Surveillance Cameras PTZ with Linux OS

The ZKManet6804 is a 4G/5G HD surveillance ball that integrates functions such as high-definition camera, high-precision PTZ, high-performance lithium battery, efficient infrared array, video encoding, wireless transmission, local storage, and positioning. It can meet the needs of emergency temporary surveillance and mobile monitoring in vehicles, with comprehensive functions, convenient portability, and quick deployment. The terminal can be quickly installed using a strap or placed on a tripod to swiftly conduct surveillance and monitoring in designated areas; when used in vehicles, there is no need to modify the vehicle or provide additional power supply, as it can be directly attached to the roof.

* Supports 360-degree unlimited PTZ
* Supports anti-shake, auto focus, auto white balance and backlight
* H.264 encoding
* Supports1080P
* Supports local storage
* Supports auto-adjust transmission code stream
* Supports 4G public network and Mesh private network
* Support WI-FI and wired access
* Rugged IP66

Basic Parameters	OS	Built-in Linux
Basic Parameters	Memory	Supports dual SD card, 256GB max for each
Video Parameters	Compression Algorithm	H.265
	Resolution	25601440/19201080/1280*720
	Optical Zoom	30x
	Sensor	1/2.8' CMOS
	Pixel	5 million
	Minimum Illumination	Color:0.05Lux@F1.6 Black:0.005Lux@F1.6
Audio Parameters	Compression Algorithm	AAC/ADPCM
PTZ Parameters	Horizontal Range	360°
	Vertical Range	-15~90°
	Preset Position	200
Network Parameters	Wi-Fi	2.4/5.8GHz Wi-Fi, Wi-Fi AP, IEEE 802.11 b/g/n/ac
	Bluetooth	B- 4.0
	Network Mode	5G/4G

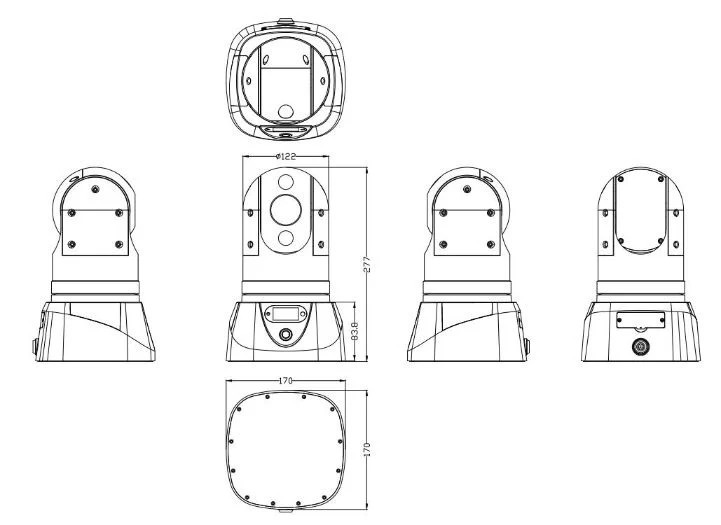

Physical/Environment	Dimensions	170170277mm
	Weight	4kg
	Working Temp	-20°C~65°C
	IP Rating	IP66
Electrical Parameters	Power Supply	DC19V
Electrical Parameters	Power Consumption	Infrared off ≥15h; Infrared on ≥10h; External 19V/3.3A power supply

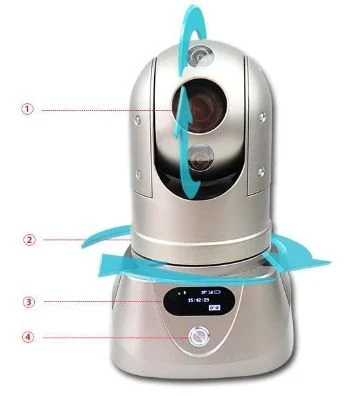

4G/5g HD Surveillance Ball with 360-Degree PTZ Camera

1. Camera (able to rotate 105°)
2. 360°Rotating gimbal
3. status panel

4. power switch

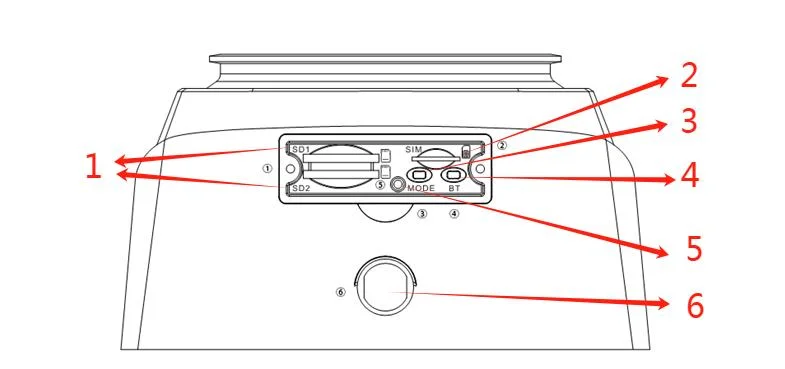

SD card slot
SIM card slot
MODE: a short press of 1 second to switch networks
BT: A quick press of less than 1 second turns Bluetooth on or off, while pressing for more than 2 seconds clears the Bluetooth connection records. Pressing three times in succession switches to voice mode.
When the card cover is removed, the travel switch will automatically pop out, which will then unload the SD card and disconnect the network.
external charging and expansion interfaces

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.

Our Patents
4G/5g HD Surveillance Ball with 360-Degree PTZ Camera

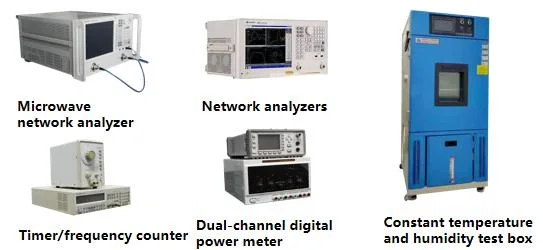

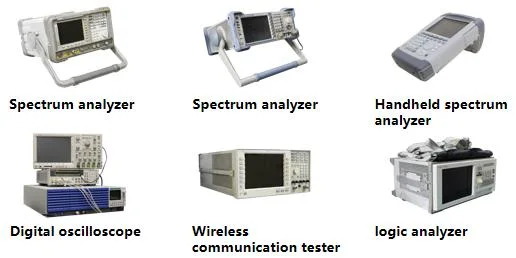

Test Equipments

Our Advantages
