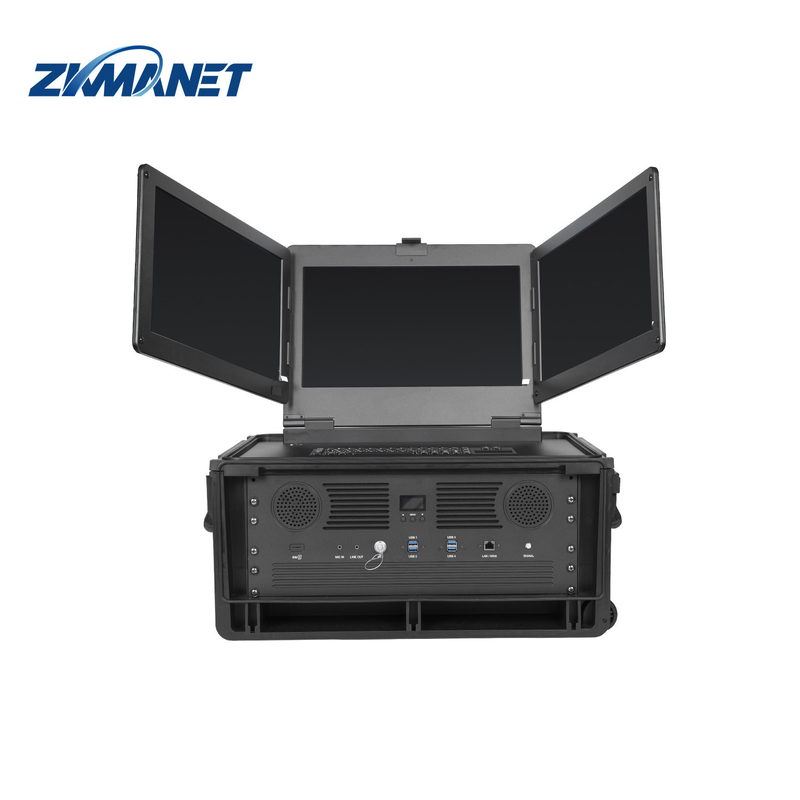

The ZKManet3961 is a MESH portable command station developed for on-site command. It can manage and set up various Mesh nodes within the network through link management, allowing users to view signal strength of each link, video and data information of each node, display front-end video in real-time, and conduct voice intercom. It can serve as a front command post or transmit data back to the main command center via 4G/5G private network or public network for coordinated operations. It is mainly used to receive data information from individual soldiers and relay transmissions.
* Data rate up to 56Mbps
* Full-duplex bidirectional data transmission
* Full transparent IP data transmission
* Flexible networking, rapid deployment
* Rugged IP67
* Supports video monitoring
| Model |
ZKManet3961 |
Brand |
ZKMANET |
| Host Parameters |
OS |
WIN10 |
| CPU |
Intel I7 |
| Display |
15.6-inch HD screen |
| Memory |
8G |
| Storage Method |
250GB SSD |
| Mode of Operation |
Embedded mouse and keyboard |
| RF Parameters |
Frequency |
1300-1500MHz (70MHz-6GHz customizable) |
| Bandwidth |
2.5/5/10/20MHz |
| RF Channel |
2T2R |
| Output Power |
2W |
| Network Parameters |
Capacity |
64 nodes |
| Data Rate |
56Mbps |
| Public Network |
4G/5G |
| WIFI |
2.4GHz/5.8GHz |
| Encryption |
AES |
| Physical/Environment |
Dimensions |
577*353*211mm |
| Weight |
15kg(w/ battery) |
| IP Rating |
IP65 |
| Working Temp |
-20ºC~+65ºC |
| Electrical Parameters |
Power Supply |
24V |
| Battery Capacity |
21Ah |
| Power Consumption |
<High Power |
| Other |
FHSS |
Optional |
| IFS |
Optional |
| Voice Intercom |
Support |
| Positioning |
Support |
| HDMI Input |
Support |
- SIM card slot interface
- LINE OUT
- Display and Debugging Button
- 2 USB interfaces
- Signal indicator light
- MIC IN
- PTT intercom interface
- 2 USB interfaces
- RJ45 network port
10. GPS antenna interface
11. Wi-Fi antenna interface
12. 5G antenna interface 1
13. 5G antenna interface 2
14. 5G antenna interface 3
15. 5G antenna interface 4
16. MESH antenna interface
17. MESH antenna interface
18. RJ45 network port
19. HDMI interface
20. Power input
21. Power output
22. Power interface
