Home > products > Personal Communication Equipment > 1.4GHz 43dBm Three Screen Command and Dispatch Station with Win10 OS and 1T Memory

1.4GHz 43dBm Three Screen Command and Dispatch Station with Win10 OS and 1T Memory

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2971

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 3999~5999 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:

uav data

,

uav satellite data link 1.4GHz

,

uav satellite data link 43dBm

Operating System:
Windows 10 64-bit
Monitor:
17.3" *3
(Technical) Resolution:
1920*1080
CPU:
CPU: I7-12700F 12 Cores 20 Threads
RAM:
DDR4-64G RAM
Disk:
1TB Solid State Drive
Working Frequency:
1.4GHz, (300MHz-3.8GHz Can Be Customized)
Default Frequencies:
5/10/20/40MHz, 20MHz (Typical)
Operating System:
Windows 10 64-bit
Monitor:
17.3" *3
(Technical) Resolution:
1920*1080
CPU:
CPU: I7-12700F 12 Cores 20 Threads
RAM:
DDR4-64G RAM
Disk:
1TB Solid State Drive
Working Frequency:
1.4GHz, (300MHz-3.8GHz Can Be Customized)
Default Frequencies:
5/10/20/40MHz, 20MHz (Typical)
1.4GHz 43dBm Three Screen Command and Dispatch Station with Win10 OS and 1T Memory

1.4GHz 43dBm Three Screen Command and Dispatch Station with Win10 OS and 1T Memory

Product Description

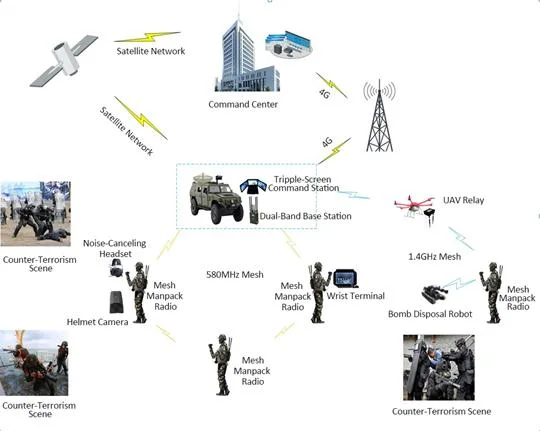

ZKManet2971 is a portable three-screen command box developed for on-site command, which integrates MESH self-organizing network, 5G public network, WIFI and wired network, integrates multiple services such as voice, video, location and data information at the scene of the accident, with unified presentation, unified management, provides three-screen display function to achieve the visualization of the command and can project the screen to the big screen system of the front command department and link with the rear command center to realize the upward and downward communication. The screen can be projected to the large screen system of the front command department, and link with the rear command center to realize the upward and downward communication.

Features



* Portable case design

* Triple HD screen design

* Supports multiple HDMI outputs simultaneously

* Support external MIC, headset

* support a variety of voice input and output options

* Support MESH network, public network 4G/5G, Wi-Fi, wired network and other links access
Portable Three-Screen Gcs Radio with Mesh Technology



Product Parameters

System parameter
Operating system Windows 10 64-bit
Monitor 17.3" *3
(Technical) Resolution 1920*1080
CPU CPU: i7-12700F 12 cores 20 threads
RAM DDR4-64G RAM
Disk 1TB Solid State Drive
Audio Built-in speaker and pickup
RF parameters
Working Frequency 1.4GHz, (300MHz-3.8GHz can be customized)
Default Frequencies 5/10/20/40MHz, 20MHz (Typical)
RF channel 2T2R
Output power 43dBm
Network parameters
Ad Hoc Network nodes 64nodes
Ad Hoc Network throughout 82Mbps
Encryption AES
Public network 4G/5G All-network
WIFI 2.4GHz
Transmission distance 10-20km(Visible range)
Physical
Size 570 * 416 * 282mm
Weight 26kg(Battery included)
Operating Temperature -20ºC~ +40ºC
Storage Temperature -30 ~ +60ºC(condensation-free)
Operating Humidity 10% ~ 90% Relative humidity, no condensation
Electrical Characteristics
Electricity 19-24V
Battery capacity 42Ah
Interfaces
MESH Antenna Interface N*2
5G Antenna Interface SMA*4
WIFI Interface SMA*1
GPS Interface SMA*1
Audio Interface 7-core Rammer head*1,3.5mm*2
Video Interface HDMI*3
Data Interface USB*6
Network port Gigabit Ethernet port*3

Company Profile

Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.

We provide design and development services for internet big data collection and analysis products and application solutions to large enterprises and institutions with confidentiality needs. Additionally, we offer sales of network security equipment and information security technical services. Our products are widely used by law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime affairs.


We hold several patents with independent intellectual property rights and have developed a robust quality management system that adheres to ISO9001 standards, as well as national standards. Our production processes strictly follow these national guidelines and internationally recognized standards, including CCC, CE, and FCC. Additionally, we have received the Radio Transmission Equipment Model Approval Certificate from the Ministry of Industry and Information Technology of China and have successfully completed wireless product testing certification by the Ministry of Public Security.

Portable Three-Screen Gcs Radio with Mesh Technology
Portable Three-Screen Gcs Radio with Mesh Technology
Portable Three-Screen Gcs Radio with Mesh Technology

Our Patents
Portable Three-Screen Gcs Radio with Mesh Technology

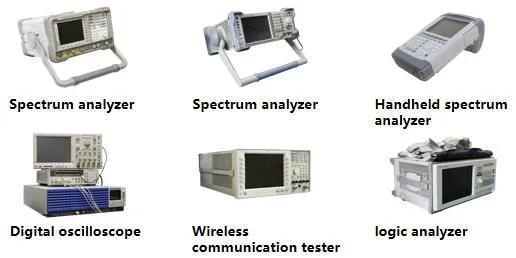

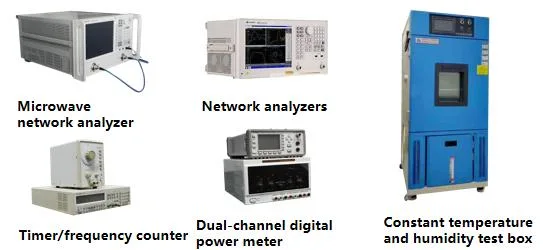

Test Equipments

Portable Three-Screen Gcs Radio with Mesh Technology
Portable Three-Screen Gcs Radio with Mesh Technology

Our Advantages

Portable Three-Screen Gcs Radio with Mesh Technology
Portable Three-Screen Gcs Radio with Mesh Technology
