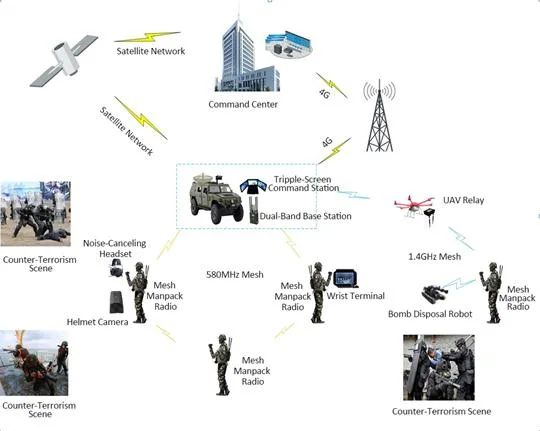

The ZKManet2971 is a portable command box featuring three screens, specifically designed for on-site command operations. It combines MESH self-organizing networks, 5G public networks, Wi-Fi, and wired connections to integrate various services such as voice, video, location tracking, and data information at the incident site. With a unified presentation and management system, it offers a three-screen display function that enhances command visualization. Additionally, it allows for screen projection to the large display systems of the front command department and facilitates communication with the rear command center for effective upward and downward communication.
Features
* Portable case design
* Triple HD screen design
* Supports multiple HDMI outputs simultaneously
* Support external MIC, headset
* support a variety of voice input and output options
* Support MESH network, public network 4G/5G, Wi-Fi, wired network and other links access
| System parameter |
|
| Operating system |
Windows 10 64-bit |
| Monitor |
17.3" *3 |
| (Technical) Resolution |
1920*1080 |
| CPU |
CPU: i7-12700F 12 cores 20 threads |
| RAM |
DDR4-64G RAM |
| Disk |
1TB Solid State Drive |
| Audio |
Built-in speaker and pickup |
| RF parameters |
|
| Working Frequency |
1.4GHz, (300MHz-3.8GHz can be customized) |
| Default Frequencies |
5/10/20/40MHz, 20MHz (Typical) |
| RF channel |
2T2R |
| Output power |
20W |
| Network parameters |
|
| Ad Hoc Network nodes |
64nodes |
| Ad Hoc Network throughout |
82Mbps |
| Encryption |
AES |
| Public network |
4G/5G All-network |
| WIFI |
2.4GHz |
| Transmission distance |
10-20km(Visible range) |
| Physical |
|
| Size |
570 * 416 * 282mm |
| Weight |
26kg(Battery included) |
| Operating Temperature |
-20ºC~ +40ºC |
| Storage Temperature |
-30 ~ +60ºC(condensation-free) |
| Operating Humidity |
10% ~ 90% Relative humidity, no condensation |
| Electrical Characteristics |
|
| Electricity |
19-24V |
| Battery capacity |
42Ah |
| Interfaces |
|
| Ad Hoc Network Antenna Interface |
N*2 |
| 5G Antenna Interface |
SMA*4 |
| WIFI Interface |
SMA*1 |
| GPS Interface |
SMA*1 |
| Audio Interface |
7 pole Rammer head*1,3.5mm*2 |
| Video Interface |
HDMI*3 |
| Data Interface |
USB*6 |
| Network port |
Gigabit Ethernet port*3 |
Zhongke Lianxun (Shenzhen) Technology Co., Ltd. was established in 2005, focusing on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. We leverage the technical expertise of renowned university network security institutes.
Adhering to the principles of "unity and dedication, technological innovation, and service innovation," we serve users both domestically and internationally. We uphold the tenet of "quality first, reputation first" to provide high-quality, efficient, and customized services to our clients worldwide. The company is committed to promoting an innovative spirit of "exploration and progress."
Our Patents

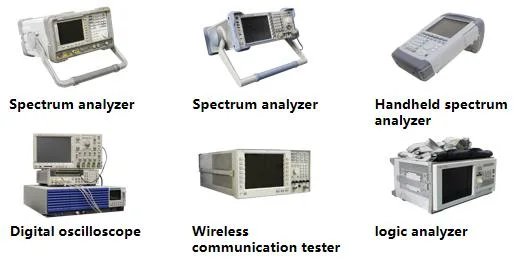

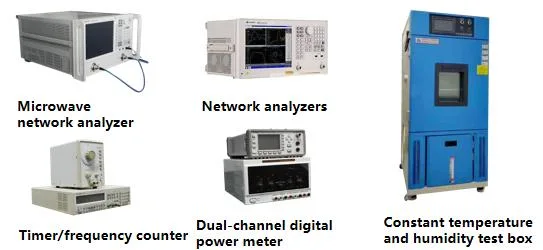

Test Equipments
