Home > products > Personal Communication Equipment > 40dBm 1.4GHz 2T2R Backpack Wireless MESH Radio with AES Encryption for HD Image Video Transmission

40dBm 1.4GHz 2T2R Backpack Wireless MESH Radio with AES Encryption for HD Image Video Transmission

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2271UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 5599~6299 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:
Working Frequency:
1.4GHz(300MHz-3.8GHz Customizable)
Working Bandwidth:
5/10/20/40MHz, 20MHz(typical)
RF Channel:
2T2R
Output Power:
20-High Power Customizable
Throughout Rate:
82Mbps
Encryption:
AES
Public Network:
4G/5G Full Netcom
WIFI:
2.4GHz
Dimension:
320*200*75mm
Weight:
4.75kg(included Battery)
Working Frequency:
1.4GHz(300MHz-3.8GHz Customizable)
Working Bandwidth:
5/10/20/40MHz, 20MHz(typical)
RF Channel:
2T2R
Output Power:
20-High Power Customizable
Throughout Rate:
82Mbps
Encryption:
AES
Public Network:
4G/5G Full Netcom
WIFI:
2.4GHz
Dimension:
320*200*75mm
Weight:
4.75kg(included Battery)
40dBm 1.4GHz 2T2R Backpack Wireless MESH Radio with AES Encryption for HD Image Video Transmission



40dBm 1.4GHz 2T2R Backpack Wireless MESH Radio with AES Encryption for HD Image Video Transmission

Product Description

ZKManet2271UM is a high-power MESH self-organizing network radio with integrated backpack design, which can provide a more stable emergency network and longer transmission distance in complex situations. The device with data display, real-time display of the device status and device connection status; can be used on the back of a single soldier, you can also use the tripod as a relay, but also can be installed at a fixed point. With lithium battery power supply, the product appearance is simple and generous, easy to use, powerful, reliable and so on.

Features

Supports voice intercom;
Triple-proof design, IP66 with high reliability;
With SIM card slot, supports 4G full network pass;
Comes with lithium battery, using time ≥ 4 hours;
Supports WI-FI connection and GPS/BD positioning.

All-in-one design, highly integrated, light weight and easy to carry;
Has a display that shows device configuration information and device connection status;
One-touch use, no need to configure and change parameters, convenient operation and maintenance;
Can be external high gain antenna or adapted with different power amplifiers to adapt to different usage scenarios;
Has a perfect network management function, you can complete the system management, monitoring and maintenance;
Adopts all-IP transparent data transmission and supports end-to-end Internet protocol, which can be conveniently connected with higher-level network systems to constitute a variety of specialized command application systems, and can also be accessed to public basic networks.

* Broadband MESH self-organizing network
Without relying on the base station, it can efficiently and quickly form a centerless wireless broadband network. Support multi-hop relay, can effectively expand the coverage radius of the wireless network. The network has automatic selection of the best routing characteristics, self-organization, self-healing, and automatic realization of chain, star and other network topologies.

* One machine with multi-mode, ready to use at power on
Any one node equipment can be used as information collection node, relay node or information output node at the same time, and it can be used instantly when it is switched on to realize the data transmission of high-definition video, voice, image, etc. It is flexible and simple to deploy.

* Rich Convergence Capabilities
Built-in Wi-Fi, GPS / BeiDou module, 4G / 5G module, can be realized with other public or private network communication system for rapid fusion, to support the integration of communication needs.

* Intelligent Control
Integrated Wi-Fi hotspot technology, support intelligent mobile terminal access, can call the audio and camera of the intelligent terminal, realize the integration of equipment and intelligent terminal. The device with display can monitor the connection status in real time, and with buttons, no need for computer or cell phone, you can directly configure the parameters;

* All-IP networking, easy interconnection
Provide IP interface, can realize interconnection with other IP devices.

* Independent research and development: with complete core technology and intellectual property rights, it can be quickly and flexibly customized according to users' needs.

Product Parameters
Item No. ZKManet2271UM Band ZKMANET
RF Parameters Working Frequency 1.4GHz(300MHz-3.8GHz customizable)
Working Bandwidth 5/10/20/40MHz, 20MHz(typical)
RF Channel 2T2R
Output Power 20-High Power customizable
Network Parameters Nodes 64 nodes(128nodes as option)
Throughout Rate 82Mbps
Encryption AES
Public Network 4G/5G Full Netcom
WIFI 2.4GHz
Transmission Distance 10-20km(line-of-sight)

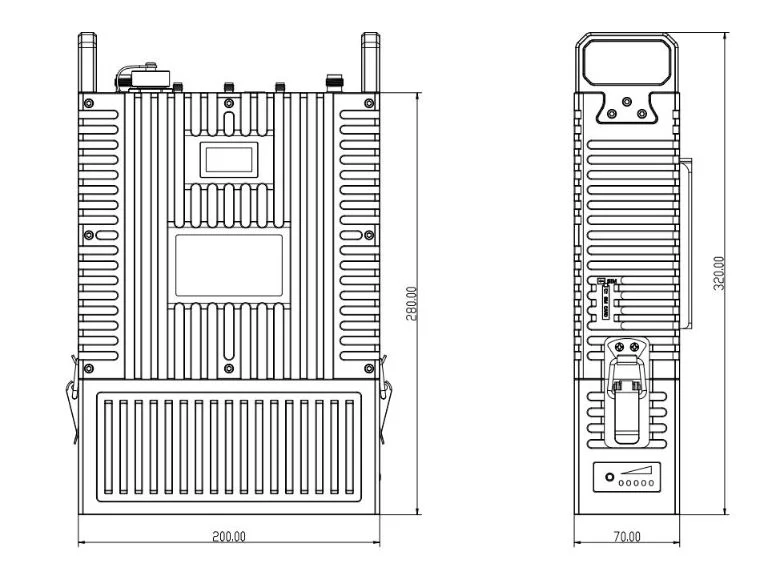

Physical/Environment Dimension 320*200*75mm
Weight 4.75kg(included battery)
Working Temperature -40ºC~+65ºC
Protection Rating IP66
Electrical Characteristics Power Supply 16.8V
Battery Capacity 13Ah
Power Consumption <80W
Other Data Show Support
Intercom Support
Positioning Support
Detailed Photos

40dBm 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter

40dBm 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter

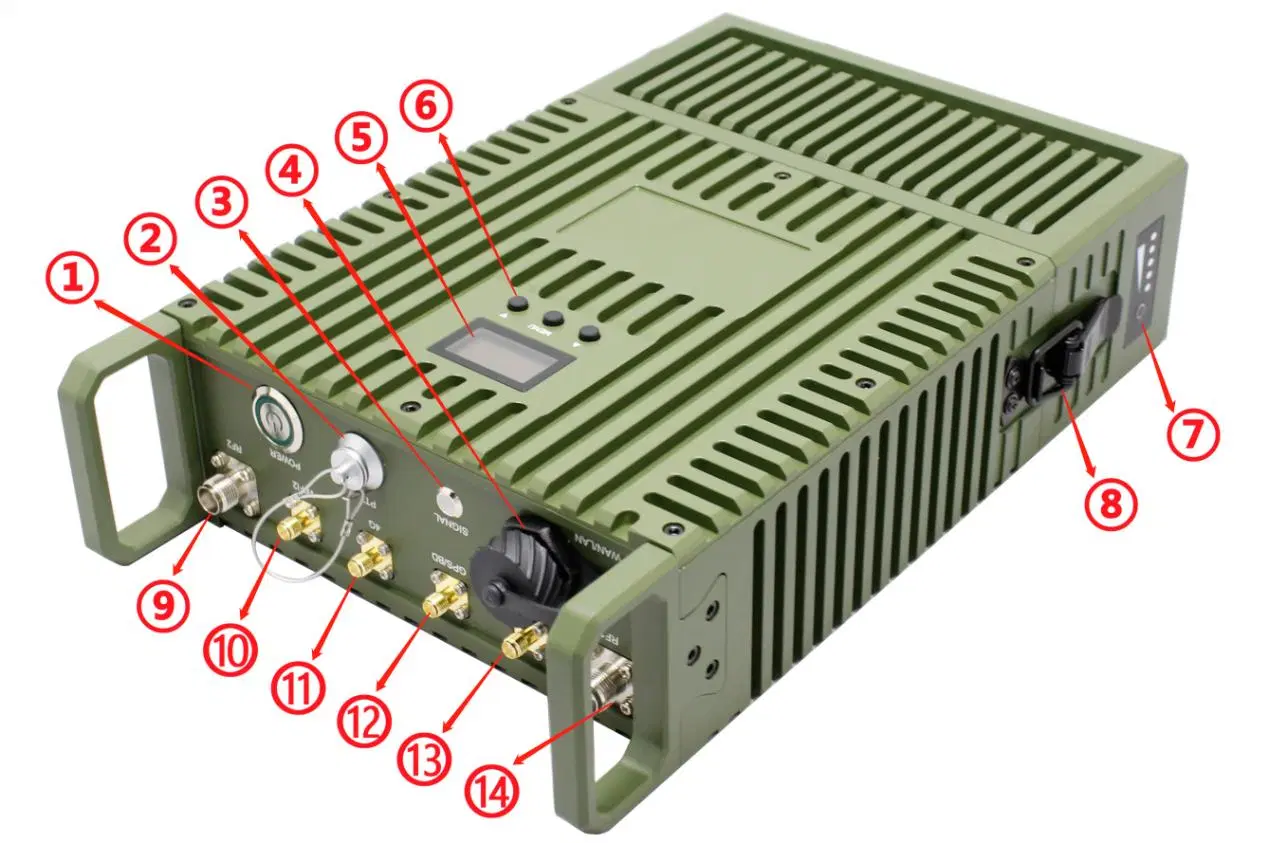

  • 1. Power push button
  • 2. PTT (Mic)
  • 3. MESH signal indicator
  • 4. LAN interface, RJ45
  • 5. Digital LCD indicator
  • 6. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
  • 7. Battery Indicator
  • 8. Battery butterfly clasp
  • 9. MESH antenna interface-2
  • 10. WIFI antenna interface-2
  • 11. 4G antenna interface
  • 12. GPS/BD antenna interface
  • 13. WIFI antenna interface-1
  • 14. MESH antenna interface-1

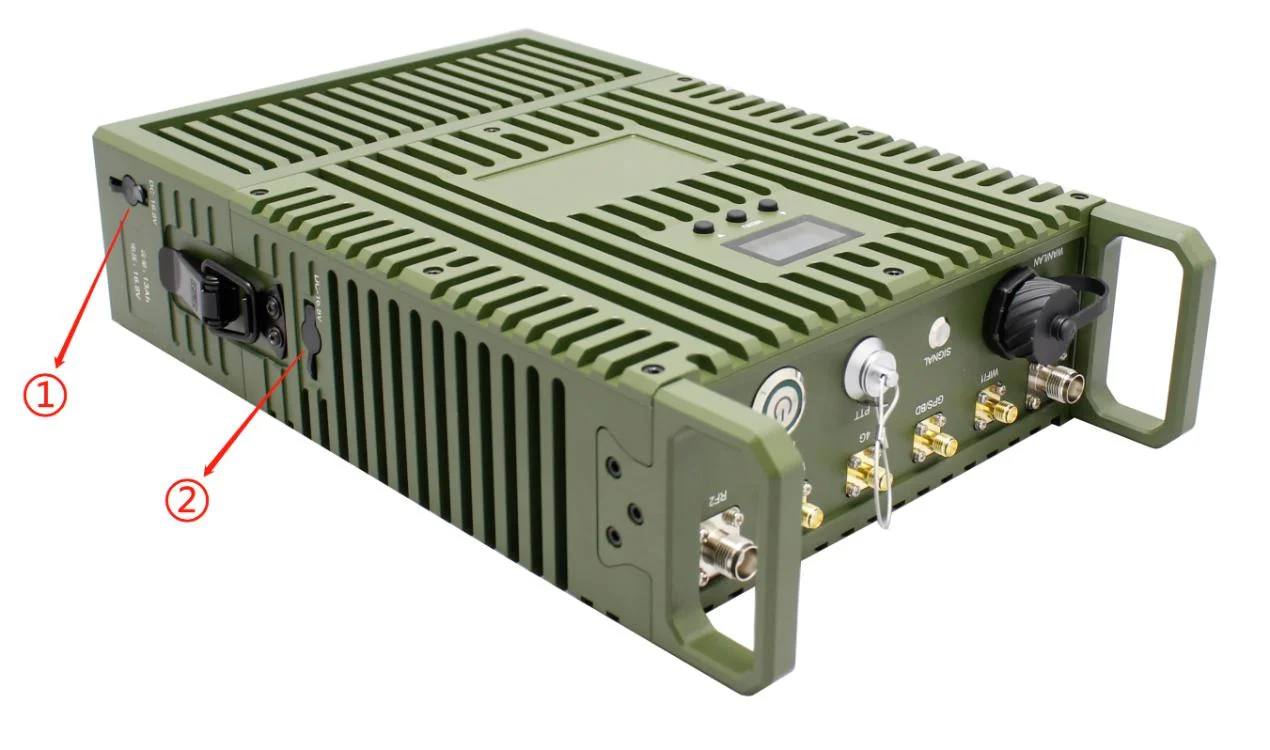

  • 1. Battery charging port
  • 2. Main body power input port
40dBm 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter
40dBm 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter

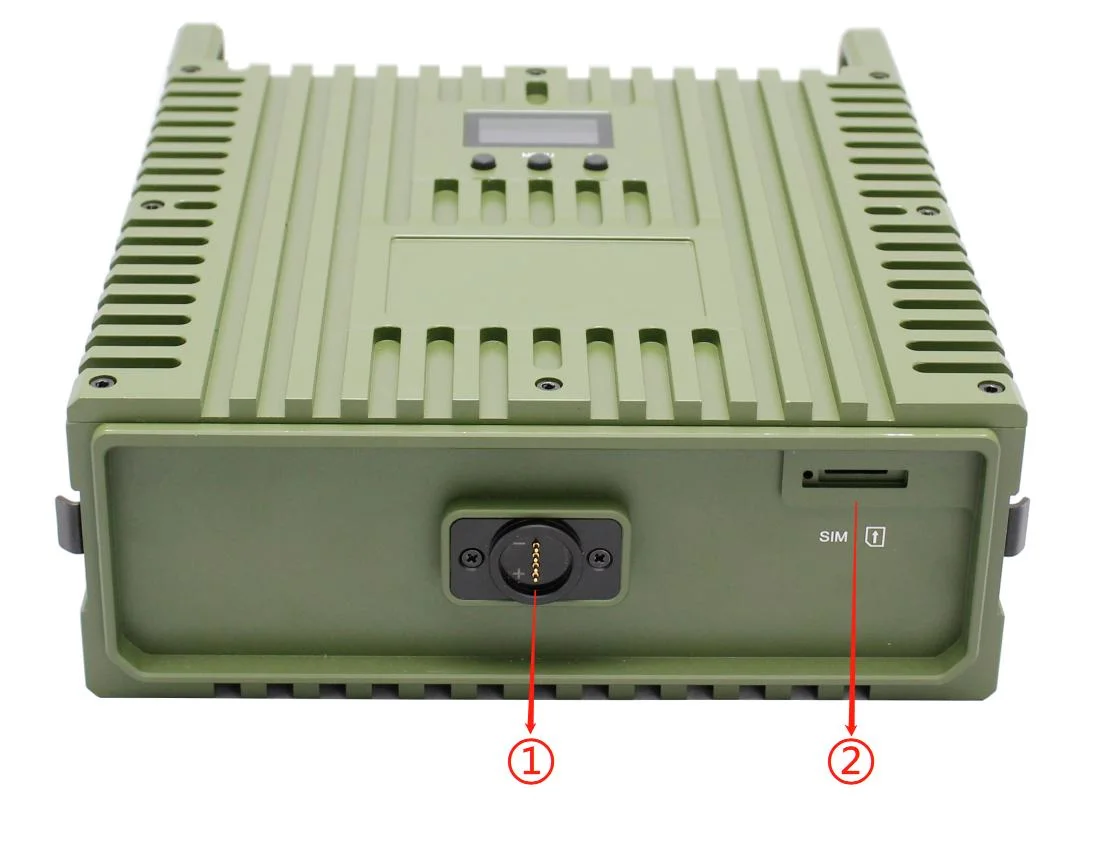

  • 1. Battery +/- contacts
  • 2. SIM card slot

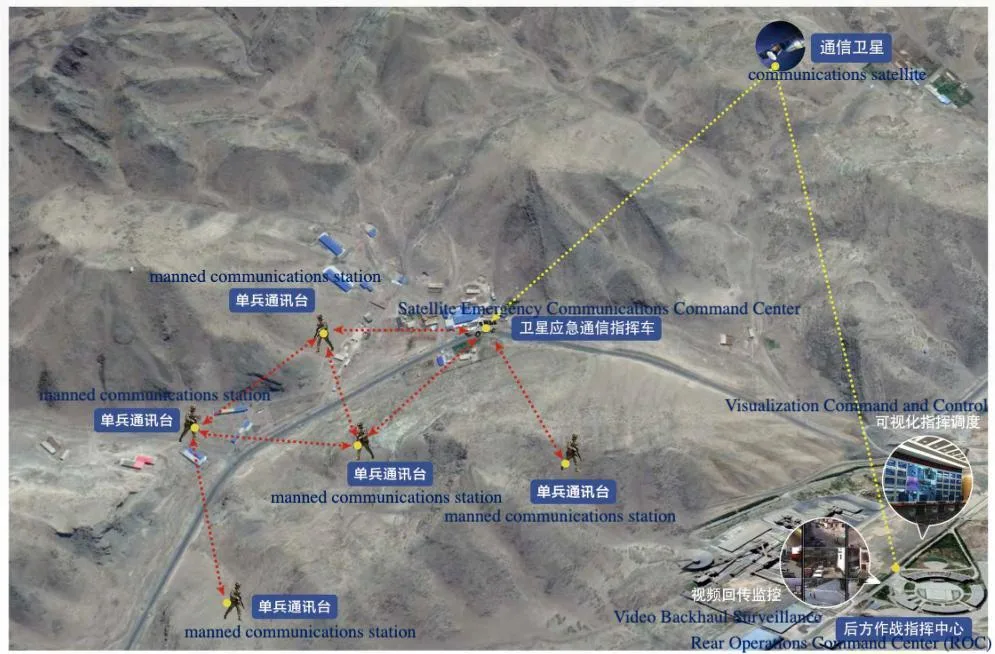

Application

40dBm 1.4GHz 2T2R AES Encryption HD Image Backpack Wireless Transmitter
