1U 2.4GHz 40dBm Low Latency Wireless Transmission System Vehicle Mounted Video Transmitter

Name: 1U 2.4GHz 40dBm Low Latency Wireless Transmission System Vehicle Mounted Video Transmitter
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2361UM
Price: 5,449.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2361UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 4599~6299 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:

Working Frequency:	1.4GHz, (300MHz-3.8GHz Customizable)	Working Bandwidth:	5/10/20/40MHz
RF Channel:	2T2R	Output Power:	2*37dBm
Throughout Rate:	82Mbps	Encryption:	AES
Public Network:	4G/5G Full Netcom	WIFI:	2.4GHz
Working Temperature:	-40ºC~+65ºC	Coverage Distance:	20-40KM(line-of-sight)

Working Frequency:	1.4GHz, (300MHz-3.8GHz Customizable)
Working Bandwidth:	5/10/20/40MHz
RF Channel:	2T2R
Output Power:	2*37dBm
Throughout Rate:	82Mbps
Encryption:	AES
Public Network:	4G/5G Full Netcom
WIFI:	2.4GHz
Working Temperature:	-40ºC~+65ºC
Coverage Distance:	20-40KM(line-of-sight)

1U 2.4GHz 40dBm Low Latency Wireless Transmission System Vehicle Mounted Video Transmitter

Product Description

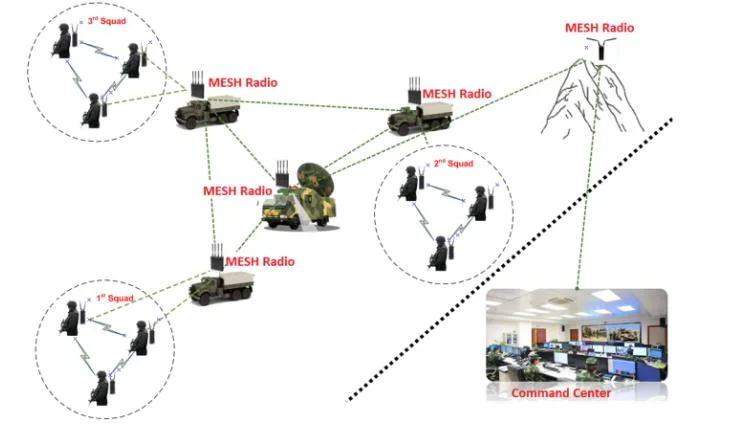

The ZKManet2361UM is a highly flexible Mesh rack-mounted product that can be used in various communication combinations for different scenarios. It can be installed at fixed points or used on moving vehicles, ships, etc., allowing for on-the-go usage with one-click startup without the need for configuration or parameter changes. It is mainly used to achieve multimedia interconnection between vehicles and between ships.

* Data rate up to 82Mbps
* Range up to 20~40km
* Supports two-way intercom
* Supports MESH/4G/5G transmission
* Supports 2.4GHz WIFI
* Supports transparent IP data transmission

Model	ZKManet2361UM	Brand	ZKMANET
RF Parameters	Frequency	1.4GHz (300MHz-3.8GHz customizable)
	Bandwidth	5/10/20/40MHz
	RF Channel	2T2R
	Output Power	2*37dBm
Network Parameters	Network Size	64 nodes
	Data Rate	82Mbps
	Encryption	AES
	Public Network	4G/5G
	WIFI	2.4GHz
	Range	20-40km (LOS)

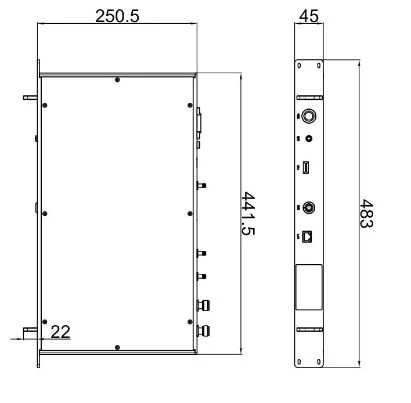

Physical/ Environment	Dimensions	483250.545mm (1U)
	Weight	4.3kg
	Working Temp	-40ºC~+65ºC
Electronic Parameters	Power Supply	DC24V
	Power Consumption	<60W
Other	Positioning	Support
	Intercom	Support
	LAN port	Support

1u Rack Mount 2T2R Voice Intercom 4G/5g/Mesh Video Transmission Radio

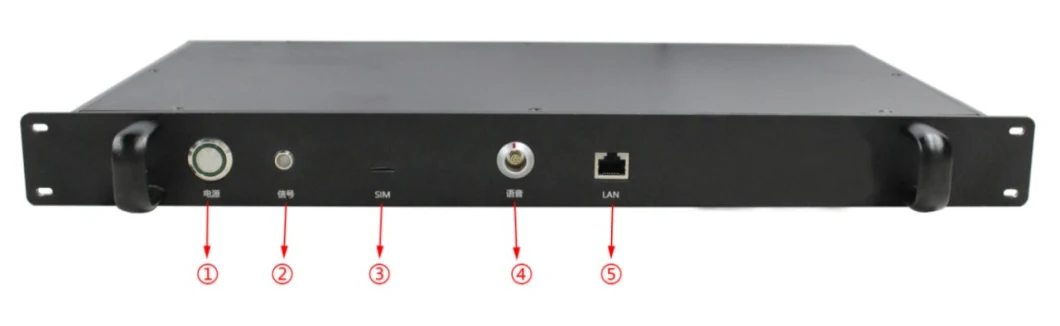

1. Power push button
2. MESH signal indicator
3. Micro SIM card slot
4. Mic input - LEMO 7-pin
5. LAN input

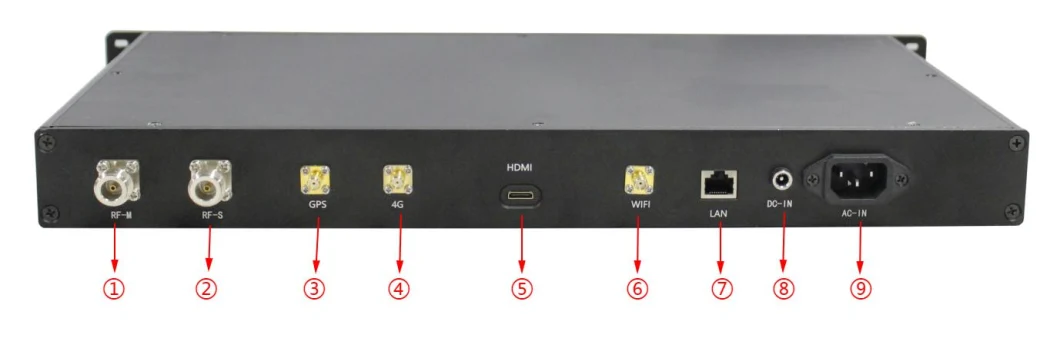

1. MESH antenna interface 1 - N F
2. MESH antenna interface 2 - N F
3. GPS antenna interface
4. 4G antenna interface
5 HDMI input interface
6 WIFI antenna interface
7 LAN input
8 DC input - 12V
9 AC input - 220V

1u Rack Mount 2T2R Voice Intercom 4G/5g/Mesh Video Transmission Radio
