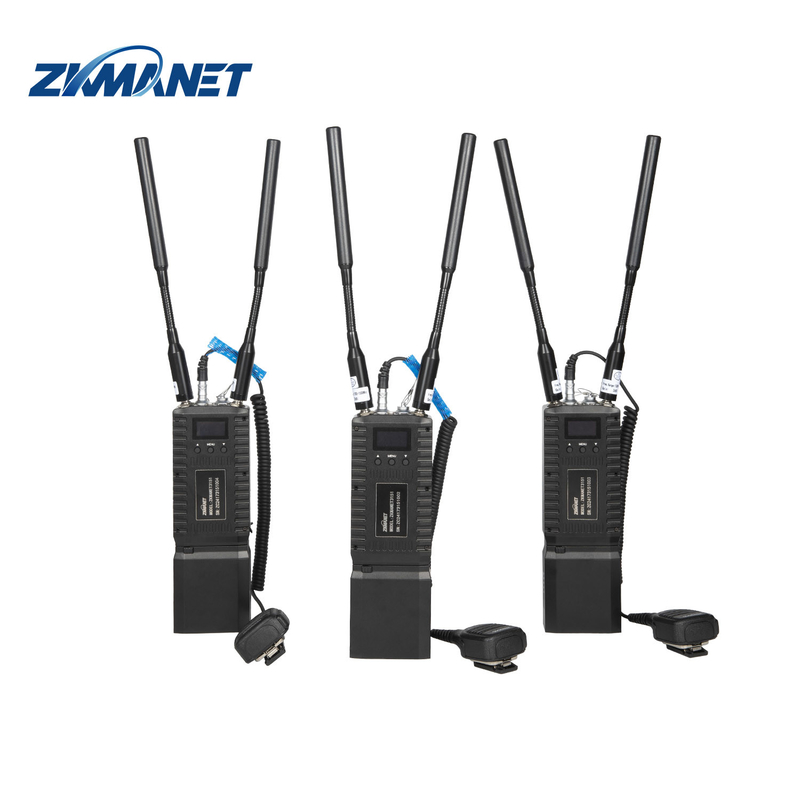

4W FPGA Reliability Wireless Handheld Manpack IP Mesh Radio Video Transmitter with FHSS

The ZKManet3151 is a high-performance, high-stability mesh self-organizing network product with FPGA program, which can be used in a variety of communication combinations and applied to different use scenarios. The device with data display, real-time display of device status and device connection status; can be used on the back of a single soldier, you can also use a tripod as a relay, can also be installed at a fixed point, but also in the mobile vehicles, ships, robots, drones, unmanned ships, and so on above the use of anytime, anywhere, a key to open the use of the device, without the need to configure and change the parameters!

Features

* One-button use of the device, no need to configure and change parameters, convenient operation and maintenance
* With a display that shows device configuration information and device connection status
* With HDMI interface, support HDMI video input
* Supports WI-FI connection, GPS/BD positioning
* Support voice intercom
* Large bandwidth, point-to-point peak bandwidth up to 56Mbps
* Full duplex bi-directional data transmission, full IP transparent data transmission
* Flexible networking and rapid deployment
* Triple-proof design, IP66 protection level, high reliability

Dimensions

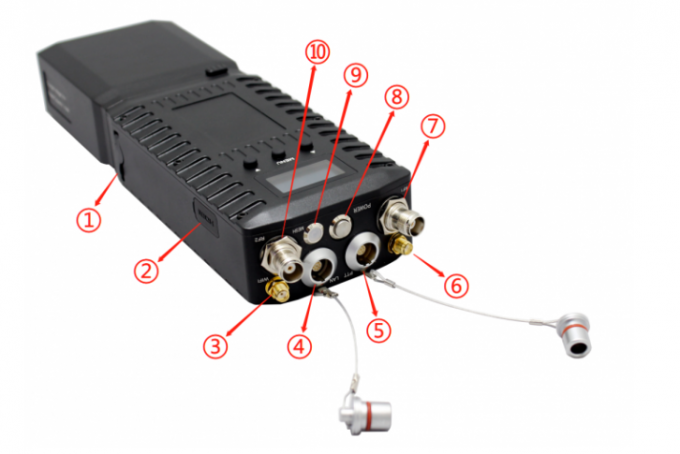

Panel Description

1. Main body power input port
2. HDMI input (mini HDMI interface)
3. WIFI antenna interface
4. LAN input interface (9-pin LEMO connector), pin-1234 equals RJ45 pin-1236 (Tx+, Tx-, Rx+, Rx-), and Pin-5678 equals RJ45 pin-1236 (Tx+, Tx-, Rx+, Rx-).
5. Mic input interface
6. GPS/BD antenna interface
7. MESH antenna interface-1
8. Power push button
9. Signal Indicator

SNR	Link Quality	Topology Color
SNR ≥ 17	Excellent	Deep Green
12 ≤ SNR < 17	Good	Light Green
7 ≤ SNR <12	Fine	Yellow
2 ≤ SNR <7	Medium	Orange
-10 < SNR <2	Bad	Red
SNR = -10	Disconnected	N/A

10. MESH antenna interface-2
