4W AES256 IP MESH transmitter
, 350MHz-4GHz manpack video transmitter
, IP66 waterproof MESH communication equipment

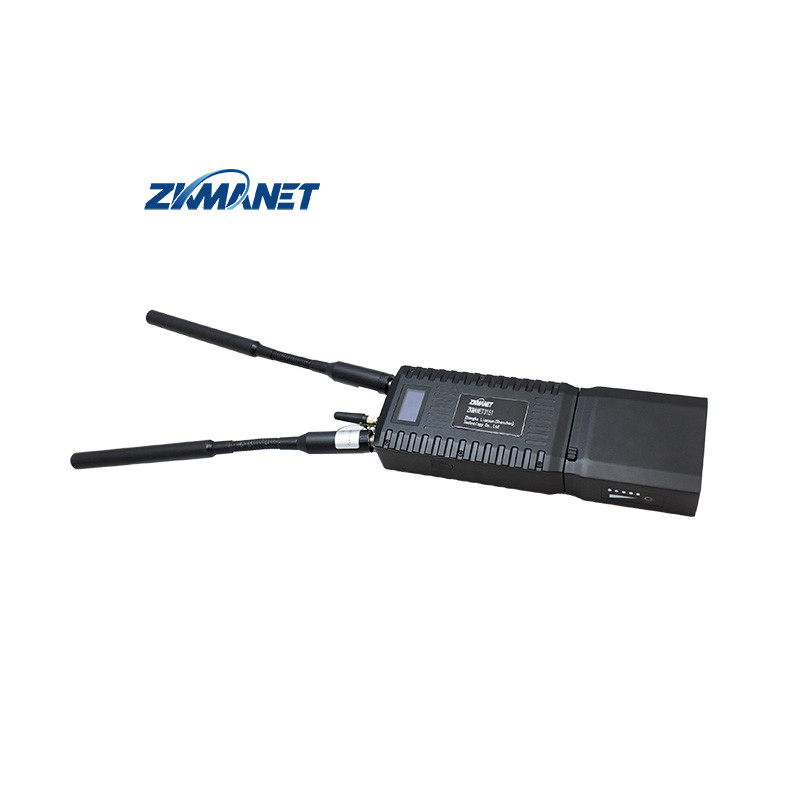

4W AES256 82Mbps 350MHz-4GHz Customizable IP66 Manpack IP MESH Video Transmitter
I. Product Introduction
The ZKManet-2251UM is a rugged IP66 bodypack metro transceiver with a rugged design. With 4 watts of output power and a twist-lock battery for easy replacement, it is ideal for a variety of mesh deployments such as public safety, armed police, fire control, and robotics. Its multi-hop capability dramatically increases transmission distance, covering 1-2 kilometres of non-line-of-sight (NLOS) per hop. Data rates of up to 82Mbps make it easy to transmit video, data and audio simultaneously, and AES256 encryption technology ensures secure data transmission.
II. Product Features
* Frequency 1400MHz-1460MHz (562-612MHz)
* Flexible networking, rapid deployment
* Data rate up to 82Mbps
* Range up to 1-2km NLOS
* Full duplex bidirectional & IP transparent data transmission
* Supports 2.4G WIFI connection
* With LCD to show the device parameters in real time
* tri-proof design, IP66 protection level with high reliability
III. Product Parameters
| Transmission Characteristics |
| Frequency | 350MHz-4GHz customizable |
| Default Frequencies | 1400MHz-1460MHz |
| Channel Bandwidth | 2M/5M/10M/20MHz/40MHz |
| Output Power | 36dBm (4W MIMO 2x2) |
| WIFI | 2.4G WIFI (2x100mw) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM
BPSK/QPSK/16-QAM/64-QAM |
| Digital Sensitivity | -97dBm Max |
| Transmission Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Electrical Characteristics |
| Working Voltage | DC18.5V |
| Power Consumption | ≤12W |
| Battery | 48Wh |
| Physical Characteristics |
| Weight | ≤1.2kg (w/ battery) |
| Dimensions | 246.5*82*42mm (w/battery) |
| IP Rating | IP66 |
| Storage Temp. | -45℃~85℃ |
| Working Temp. | -20℃~65℃ |
| Working Humidity | 5%-95% (Non-Condensing) |
IV. Products Details
Dimensions
Panel Description
n Front View
a. MESH antenna interface-1
b. Signal Indicator
| Indicator Status | Signal Strength |
| Red flickers | No device connected |
| Red still | Weak signal |
| Orange still | Medium signal |
| Green still | Strong signal |
| SNR | Indicator Color | Topology Color | Topology Value |
| 0 | Red flicker | Red | 0 |
| ＜-90 | Red still | Red | ＜-90 |
| -75 to -90 | Orange still | Orange | -75 to -90 |
| ＞-75 | Green still | Green | ＞-75 |
c. Power push button
d. MESH antenna interface-2
e. GPS/BD antenna interface
f. Mic input interface
| PIN Number | Pin Definition | Internal Cable Color |
| 1 | PTT | Blue |
| 2 | MIC (50mVpp) | Green |
| 3 | GND | Brown |
| 4 | N/A | Yellow |
| 5 | N/A | White |
| 6 | N/A | Red |
| 7 | L-Out (1.5Vpp) | Black |
g. LAN input interface (9-pin LEMO connector), pin-1234 equals RJ45 pin-1236 (Tx+, Tx-, Rx+, Rx-), and Pin-5678 equals RJ45 pin-1236 (Tx+, Tx-, Rx+, Rx-).
h. WIFI antenna interface
i. HDMI input (mini HDMI interface)
j. Main body power input port
n Rear View
a. a.3.5mm audio interface
b. Configuration buttons (optional) – set frequency, bandwidth and distance parameters.
c. Battery locker - push to remove battery
d. Battery indicator
e. Battery charging port
V. Packing Content
| Item Name | Description | Qty |
| MESH network backpack radio | ZKManet-2251UM | 1 |
| MESH Antenna | TNC header, 2dBi gain | 2 |
| WIFI Antenna | SMA header | 1 |
| GPS Antenna | SMA header | 1 |
| Chargers | 21V3A | 1 |
| Network connection cable | 9 pole Remo header to network interface | 1 |
| toast mike | 7 pole Remo header | 1 |
