ZKmanet 3460H-UAV FHSS MESH Datalink 2x1W Dual Channel

Name: ZKmanet 3460H-UAV FHSS MESH Datalink 2x1W Dual Channel
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet 3460H-UAV
Price: 1,349.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet 3460H-UAV

Document: Data Sheet (2X1W Airborne F...V).pdf

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 1099~1599

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T,Western Union,MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                ZKmanet 3460H-UAV FHSS MESH Datalink, dual channel drone data link, 2x1W UAV wireless communication


Frequency:	1350-1450MHz(customizable),1Hz Step Adjustable	Modulation:	COFDM
Bandwidth:	1.25/2.5/5/10/20MHz	Receiver Sensitivity:	≤-103dBm@5Mhz
RF Interface:	2*1W,dual Channels	Encryption:	DES/AES128/256
Dimensions:	564811mm

Frequency:	1350-1450MHz(customizable),1Hz Step Adjustable
Modulation:	COFDM
Bandwidth:	1.25/2.5/5/10/20MHz
Receiver Sensitivity:	≤-103dBm@5Mhz
RF Interface:	2*1W,dual Channels
Encryption:	DES/AES128/256
Dimensions:	564811mm

ZKmanet 3460H-UAV FHSS MESH Datalink 2x1W Dual Channel

ZKmanet 3460H-UAV Airborne FHSS MESH Datalink

Key Specifications

Frequency	1350-1450MHz (customizable), 1Hz step adjustable
Modulation	COFDM
Bandwidth	1.25/2.5/5/10/20MHz
Receiver Sensitivity	≤-103dBm@5Mhz
RF Interface	2*1W, dual channels
Encryption	DES/AES128/256
Dimensions	564811mm

Product Overview

The ZKmanet 3460H-UAV is a FHSS MESH airborne datalink with adaptive frequency hopping and intelligent frequency selection functions. Featuring an integrated 2x1W RF power amplifier, this compact and lightweight unit offers convenient installation and simple operation. Suitable for various UAV platforms, it can also be deployed in vehicles or on fixed supports as a ground station.

Key Features

Adaptive frequency hopping and intelligent frequency selection
Data rate up to 48 Mbps
Encryption supports DES/AES128/256
Full IP duplex transparent data transmission
Compact dimensions (56×48×11mm) and light weight (45g)
2×2 MIMO with comprehensive functionality and rich frequency bands
Ultra low latency, long range, bidirectional multi-channel operation
Anti-interference modes including manual spectrum scanning, intelligent channel selection, autonomous frequency hopping, and roaming

Technical Specifications

Model:

ZKmanet 3460H-UAV

Brand:

ZKMANET

Frequency:

1350-1450MHz (customizable), 1Hz step adjustable

Modulation Type:

QPSK/16QAM/64QAM/256QAM (adjustable)

Bandwidth:

1.25/2.5/5/10/20MHz

Encryption:

DES56/AES128/AES256

Receiving Sensitivity:

≤-103dBm@5MHz

Antenna Interface:

MMCX *2

RF Power:

2*1W, dual channel

Duplex Mode:

TDD

Network Capabilities:

No less than 64 nodes

Dimensions:

56*48*11mm

Weight:

45g

Working Temperature:

-40°C to +55°C

Power Supply:

DC7V~30V, typical 12V@2A

Power Consumption:

≤20W

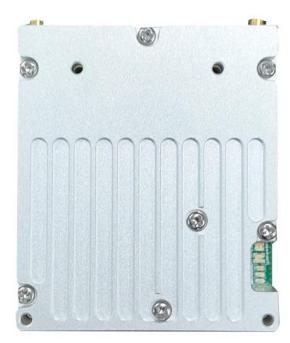

Product Images

About Zhongke Lianxun (Shenzhen) Co., Ltd

Established in 2005, Zhongke Lianxun specializes in research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. Leveraging expertise from renowned university network security institutes, we provide data encryption and drone defense solutions for industries including wind power, national power, oil and gas, firefighting, public security, and emergency management.

Our company holds multiple patents with independent intellectual property rights and maintains a quality system compliant with ISO9001 standards. We produce in accordance with national and international standards (CCC, CE, FCC) and have obtained the Radio Transmission Equipment Model Approval Certificate from China's Ministry of Industry and Information Technology.
