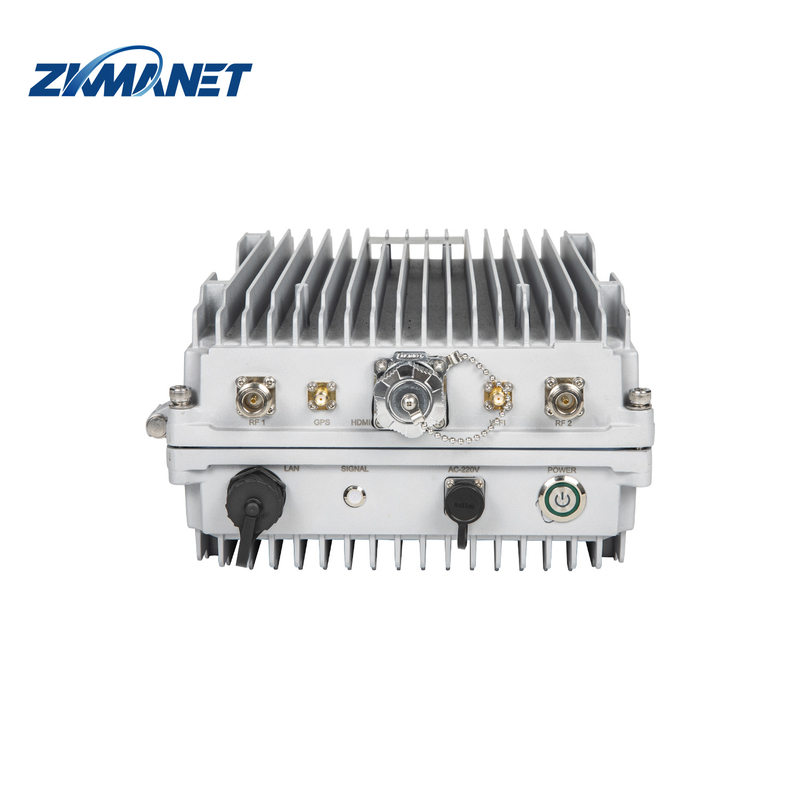

Long Range Drone Data Link with 96Mbps Throughput

Name: Long Range Drone Data Link with 96Mbps Throughput
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET3561
Price: 999 USD
Availability: InStock

Product Details

Brand Name: ZKMANET

Certification: CE

Model Number: ZKMANET3561

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: 999USD/PC

Packaging Details: Carton

Delivery Time: 5-15days

Payment Terms: TT

Supply Ability: 100000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                long range drone data link, 96Mbps drone data link, high throughput drone data link


Interface:	LAN/TTL;HDMI	Bandwidth Mode:	2.5/5/10/20/40MHz (40Mhz Optional)
Power Interface:	Waterproof Aviation Connector	Dimension:	300238133mm
Max Throughput:	48-96Mbps (Max)	Working Temp:	-20℃- +60℃
Modulation Types:	QPSK(4QAM),16QAM,64QAM	Transmission Distance:	Long Range (customizable)

Interface:	LAN/TTL;HDMI
Bandwidth Mode:	2.5/5/10/20/40MHz (40Mhz Optional)
Power Interface:	Waterproof Aviation Connector
Dimension:	300238133mm
Max Throughput:	48-96Mbps (Max)
Working Temp:	-20℃- +60℃
Modulation Types:	QPSK(4QAM),16QAM,64QAM
Transmission Distance:	Long Range (customizable)

Long Range Drone Data Link with 96Mbps Throughput

Long Range Transmission UAV UGV Drone MESH Radio Data Link Base Station

Key Specifications

Attribute	Value
Interface	LAN/TTL;HDMI
Bandwidth Mode	2.5/5/10/20/40MHz (40Mhz Optional)
Power Interface	Waterproof Aviation Connector
Dimension	300238133mm
Max Throughput	48-96Mbps (Max)
Working Temp	-20℃- +60℃
Modulation Types	QPSK(4QAM),16QAM,64QAM
Transmission Distance	Long Range (customizable)

Product Overview

The Drone Data Link establishes reliable communication between unmanned aerial vehicles and ground stations, offering high-performance features for demanding remotely piloted aircraft operations. With a maximum throughput of 48-96Mbps, this system ensures rapid transmission of real-time video streams and telemetry data.

Key Features

High-speed data transmission up to 96Mbps
Customizable long-range transmission distance
Compact dimensions (300×238×133mm) for easy integration
Low power consumption (<95W) for extended missions
Waterproof aviation connector for rugged environments
Multiple bandwidth modes (2.5/5/10/20/40MHz)
Advanced modulation types (QPSK, 16QAM, 64QAM)

Technical Parameters

Parameter	Specification
Frequency Band	1300-1500MHz
Transmission Distance	Long Range (customizable)
Modulation Types	QPSK(4QAM),16QAM,64QAM
Power Interface	Waterproof Aviation Connector
LAN Interface	RJ45×2, TTL×3
Working Method	Point To Point, Point To Multipoints, Multipoints To Multipoints
Intelligent Frequency Selection (IFS)	Optional
Working Temperature	-20℃ to +60℃
Weight	6.5kg

Applications

The ZKMANET3561 Drone Data Link is designed for unmanned aerial vehicle communication systems, autonomous airborne data relay, and remote controlled aircraft networks. Its versatile working methods (point-to-point or multipoint configurations) make it suitable for various operational scenarios.

With CE certification and robust construction, this system operates reliably in diverse environmental conditions (-20℃ to +60℃). The compact, lightweight design (6.5kg) ensures easy integration into different drone platforms while maintaining high performance.
