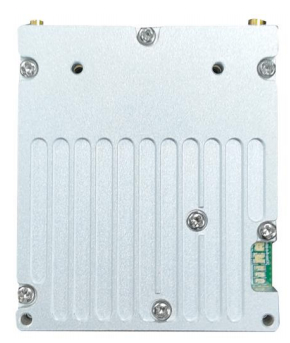

ZKMANET3460-UAV Drone Data Link with Adaptive Modulation

Name: ZKMANET3460-UAV Drone Data Link with Adaptive Modulation
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET3460-UAV
Price: 14999.00 USD
Availability: InStock

Product Details

Brand Name: ZKMANET

Certification: CE

Model Number: ZKMANET3460-UAV

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton

Delivery Time: 5-15days

Payment Terms: TT

Supply Ability: 100000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                UAV drone data link, drone data link modulation, adaptive modulation data link


Positioning:	GPS/BD/GLONASS	Application:	Drone UAV Communication
Size:	564811mm	Frequency Hopping:	Support, 1000hops/s
Transmitter Range:	20-49km Customizable	Antenna Type:	Omni-directional
Modulation Type:	BPSK/QPSK/16QAM/64QAM (adaptive)	Intelligent Frequency Selection:	Support

Positioning:	GPS/BD/GLONASS
Application:	Drone UAV Communication
Size:	564811mm
Frequency Hopping:	Support, 1000hops/s
Transmitter Range:	20-49km Customizable
Antenna Type:	Omni-directional
Modulation Type:	BPSK/QPSK/16QAM/64QAM (adaptive)
Intelligent Frequency Selection:	Support

ZKMANET3460-UAV Drone Data Link with Adaptive Modulation

Key Features

Attribute	Value
Positioning	GPS/BD/GLONASS
Application	Drone UAV Communication
Size	564811mm
Frequency Hopping	Support, 1000hops/s
Transmitter Range	20-49km Customizable
Antenna Type	Omni-directional
Modulation Type	BPSK/QPSK/16QAM/64QAM (adaptive)
Intelligent Frequency Selection	Support

Product Overview

The Drone Data Link is a crucial component for any Remotely Piloted Aircraft Data Link system, ensuring seamless communication between the ground control station and the unmanned aerial vehicle. With an antenna gain of 2 DBi, this data link system provides reliable and stable signal transmission.

HDMI interface support for high-quality video and data transmission
Versatile connectivity with LAN/TTL and HDMI interfaces
Lightweight design at just 45g for optimal flight performance
Advanced frequency hopping (1000 hops/s) for enhanced security

Technical Specifications

Parameter	Value
Nodes	8 Nodes Customizable
Size	564811mm
Frequency Hopping	Support, 1000hops/s
Data Rate	48Mbps (Max)
HDMI Interface	Support
Output Power	2W
Weight	45g
Frequencies	1350-1450MHZ

Applications

The ZKMANET3460-UAV is designed for:

Unpiloted Flying Machine Data Link
Drone Communication
Data Transmission Link
Unmanned Aerial Vehicle Data Communication System

Customization & Ordering

Specification	Details
Brand Name	ZKMANET
Model Number	ZKMANET3460-UAV
Certification	CE, FCC, ROHS
Minimum Order Quantity	2 units
Delivery Time	5-15 days
Supply Ability	100,000pcs/year

All specifications are customizable to meet specific project requirements.
