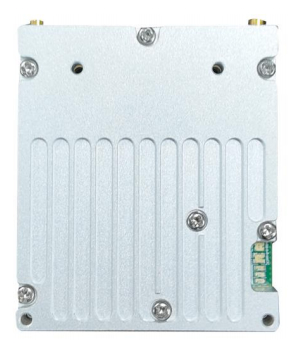

45g Super Compact Drone UAV Radio Link Frequency Hopping Datalink

Name: 45g Super Compact Drone UAV Radio Link Frequency Hopping Datalink
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET3460-UAV
Price: 14999.00 USD
Availability: InStock

Product Details

Brand Name: ZKMANET

Certification: CE,FCC,ROHS,REACH

Model Number: ZKMANET3460-UAV

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Carton

Delivery Time: 5-15days

Payment Terms: TT

Supply Ability: 100000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                compact drone radio datalink, UAV frequency hopping datalink, 45g lightweight drone datalink


Frequency Hopping:	Support, 1000hops/s	Hdmi Interface:	Support
Nodes:	8 Nodes Customizable	Date Rate:	48Mbps(Max)
Antenna Type:	Omni-directional	Positioning:	GPS/BD/GLONASS
Size:	564811mm	Interface:	LAN/TTL;HDMI

Frequency Hopping:	Support, 1000hops/s
Hdmi Interface:	Support
Nodes:	8 Nodes Customizable
Date Rate:	48Mbps(Max)
Antenna Type:	Omni-directional
Positioning:	GPS/BD/GLONASS
Size:	564811mm
Interface:	LAN/TTL;HDMI

45g Super Compact Drone UAV Radio Link Frequency Hopping Datalink

Attribute	Value
Frequency Hopping	Support, 1000hops/s
HDMI Interface	Support
Nodes	8 Nodes Customizable
Data Rate	48Mbps(Max)
Antenna Type	Omni-directional
Positioning	GPS/BD/GLONASS
Size	564811mm
Interface	LAN/TTL;HDMI

Advanced UAV Communication Solution

This cutting-edge drone datalink system provides reliable and efficient communication capabilities for unmanned aerial vehicles. Featuring advanced frequency hopping technology at 1000 hops per second, it ensures secure and stable data transmission for mission-critical operations.

Key Features

Customizable transmitter range (20-49km) for various operational requirements
Operates within optimized 1350-1450MHz frequencies for interference-free communication
Scalable network supporting up to 8 customizable nodes
Compact 56×48×11mm design for easy drone integration
HDMI interface for high-definition video streaming
Omni-directional antenna with 2 dBi gain

Technical Specifications

RF Bandwidth

2/5/10/20/40MHz (40MHz Optional)

Modulation Type

BPSK/QPSK/16QAM/64QAM (adaptive)

Output Power

Intelligent Frequency Selection

Support

RF Channel

2T2R

Applications

Ideal for various UAV communication scenarios including:

Aerial surveillance and reconnaissance
Search and rescue operations
Aerial photography and mapping
Industrial inspection
Environmental monitoring

Customization Options

Brand Name	ZKMANET
Model Number	ZKMANET3460-UAV
Certification	CE
Minimum Order Quantity	2 units
Delivery Time	5-15 days
Supply Ability	100,000 pieces/year
