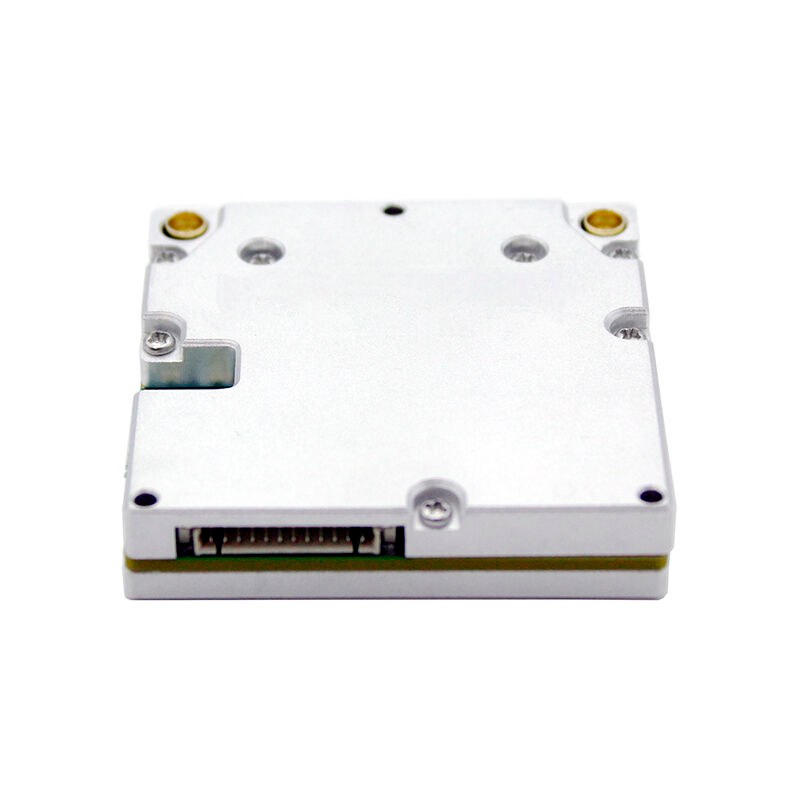

The MANET 9400S-W is a light weight datalink link. Featuring an integrated power amplifier, this compact and lightweight unit offers convenient installation and simple operation. Suitable for various platforms, it can also be deployed in vehicles or on fixed supports as a ground station.
RF Parameters | Frequency | Frequency Customizable |
Bandwidth | 2.5/5/10/20MHz | |
Communication Waveform | TDD-COFDM + 2T2R | |
Carrier Modulation | QPSK/16QAM/64QAM (Adaptive) | |
Sensitivity | -103dBm@5MHz | |
Data Rate | 1-40 Mbps (Adaptive) | |
Physical Parameters | External Dimensions | 50*50*10mm |
Weight | ≤43g | |
Electrical Characteristics | Power Supply Requirements | 12-24V |
Total Power Consumption | ≤15W | |
Interfaces | Network Port | *1 |
Serial Port | TTL*1 |
