Frequency Hopping FPGA MANET Transceiver with Multi-hop Capability

Name: Frequency Hopping FPGA MANET Transceiver with Multi-hop Capability
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKmanet3460
Price: 14999.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZKmanet

Certification: CE,FCC,ROHS

Model Number: ZKmanet3460

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2pieces

Packaging Details: carton

Delivery Time: 1-4weeks

Supply Ability: 3000pieces/month

Get Best Price

Product Details

Product Description

Highlight:

Compatibility:	DJI Drones	Nodes:	8 Nodes Customizable
Network Nodes:	64	Transmission Rate:	Up To 48Mbps
Transmission Range:	10-30km (LOS)	Digital Sensitivity:	96dBm@5MHz BPSK
Ip Rating:	IP54	Receiver Sensitivity:	-106dBm
Data Rate:	Up To 40 Mbps	Network Capability:	8 Nodes (Customizable)
Encryption:	AES-256	Power Consumption:	<9w
Output Power:	2x0.5w	Delay:	7ms@2.5MHZ/hop

Compatibility:	DJI Drones
Nodes:	8 Nodes Customizable
Network Nodes:	64
Transmission Rate:	Up To 48Mbps
Transmission Range:	10-30km (LOS)
Digital Sensitivity:	96dBm@5MHz BPSK
Ip Rating:	IP54
Receiver Sensitivity:	-106dBm
Data Rate:	Up To 40 Mbps
Network Capability:	8 Nodes (Customizable)
Encryption:	AES-256
Power Consumption:	<9w
Output Power:	2x0.5w
Delay:	7ms@2.5MHZ/hop

Frequency Hopping FPGA MANET Transceiver with Multi-hop Capability

Key Specifications

Compatibility	DJI drones
Nodes	8 Nodes Customizable
Network Nodes	64
Transmission Rate	Up to 48Mbps
Transmission Range	10-30km (LOS)
Encryption	AES-256
Power Consumption	<9W

Product Overview

The ZKmanet3460 is a rugged MANET (MESH Network) transceiver specially designed for UAV video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and IFS (Intelligent Frequency Selection) with 1 watt power output. Ideal for tactical mesh deployments including Public Security, Armed Police, Fire Control and Military applications.

Multi-hop capability extends transmission distance, with each hop covering 10-30km air-to-air (Line of Sight).

Key Features

Supports MESH Network (MANET)
Frequency 1300-1500MHz (customizable)
Supports FHSS and IFS
AES256 encryption
2x0.5W power output
Data rate up to 48Mbps
Supports up to 32 nodes
Supports GPS/BD/GLONASS (GNSS)
Full transparent IP data transmission
Web and PC software management

Technical Specifications

Default Frequencies	1300-1500MHz (customizable)
Channel Bandwidth	2.5M/5M/10M/20MHz
RF Waveform	TDD-COFDM (2T2R)
Output Power	2x0.5W, 1dBm step adjustable
Receive Sensitivity	-100dBm@5MHz
Modulation Type	BPSK/QPSK/16QAM/64QAM (adaptive)
Network Size	Up to 32 nodes
Multi-hop Capability	15 hops (short message); 10 hops (voice); 8 hops (video)
Range	10-30km (Air-to-Ground LOS)
Data Rate	Up to 25Mbps@10MHz & 48Mbps@20MHz
Working Voltage	7-15V DC

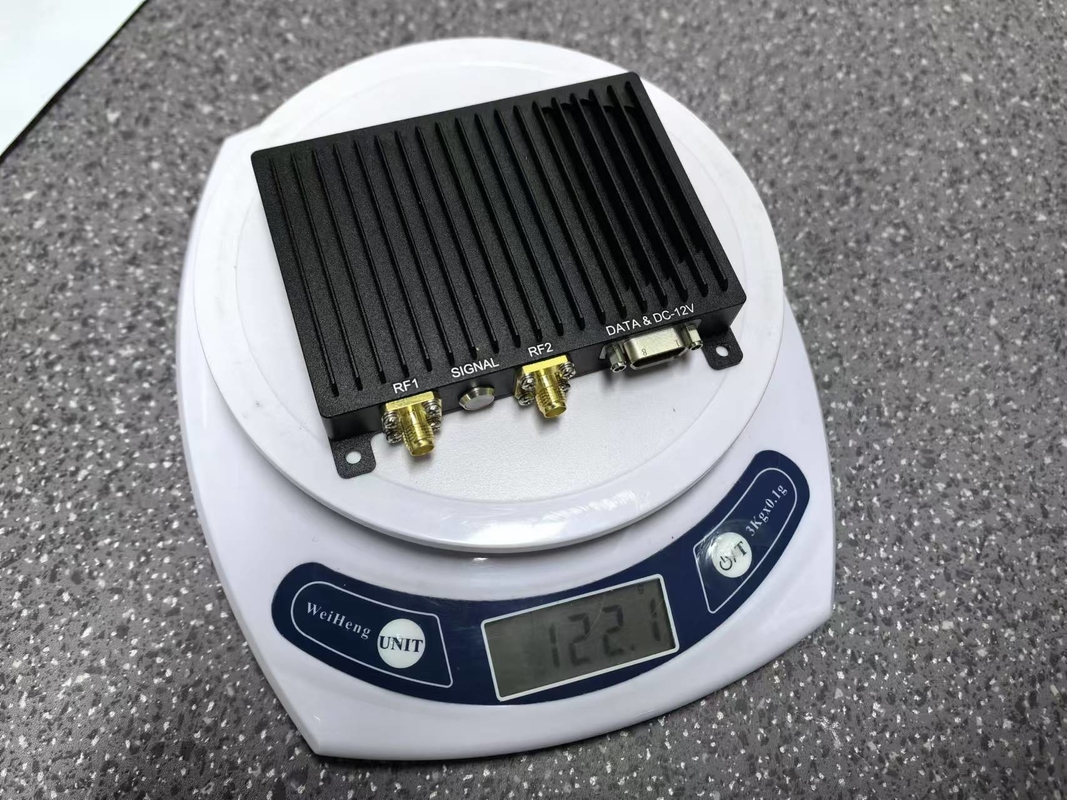

Weight	123g
Dimensions	849518mm
Working Temperature	-40°C~70°C

Product Images
