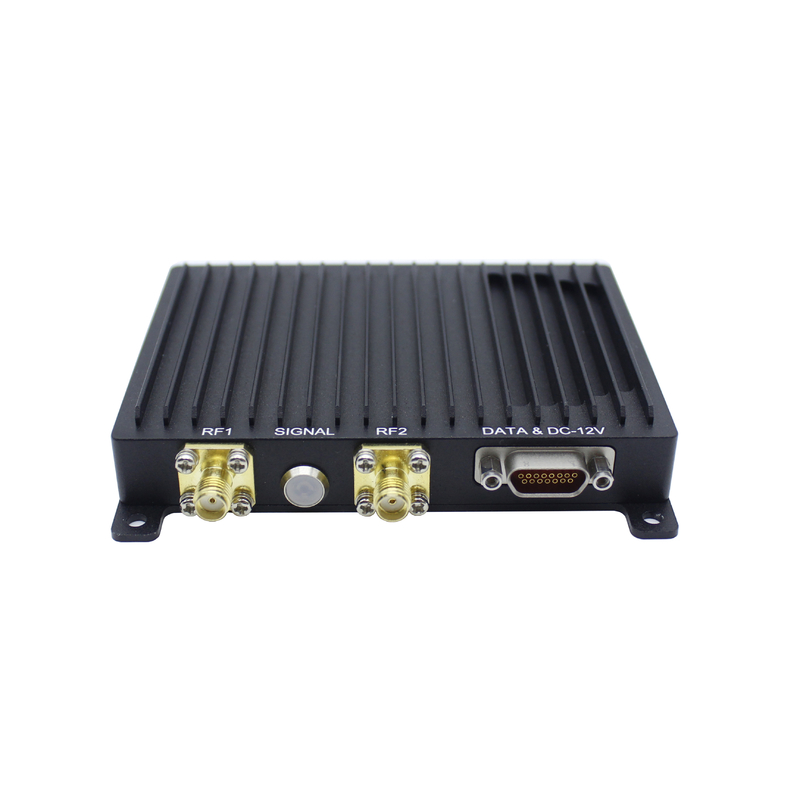

Long Range Radio Link Compact Datalink For Drone UAV UGV Robotic

Name: Long Range Radio Link Compact Datalink For Drone UAV UGV Robotic
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKmanet3460
Price: 14999.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: ZKmanet

Certification: CE,FCC,ROHS

Model Number: ZKmanet3460

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2pieces

Packaging Details: carton

Delivery Time: 1-4weeks

Supply Ability: 3000pieces/month

Get Best Price

Product Details

Product Description

Highlight:

Compatibility:	DJI Drones	Nodes:	8 Nodes Customizable
Network Nodes:	64	Transmission Rate:	Up To 48Mbps
Transmission Range:	10-30km (LOS)	Digital Sensitivity:	96dBm@5MHz BPSK
Ip Rating:	IP54	Receiver Sensitivity:	-106dBm
Data Rate:	Up To 40 Mbps	Network Capability:	8 Nodes (Customizable)
Encryption:	AES-256	Power Consumption:	<9w
Output Power:	2x0.5w	Delay:	7ms@2.5MHZ/hop

Compatibility:	DJI Drones
Nodes:	8 Nodes Customizable
Network Nodes:	64
Transmission Rate:	Up To 48Mbps
Transmission Range:	10-30km (LOS)
Digital Sensitivity:	96dBm@5MHz BPSK
Ip Rating:	IP54
Receiver Sensitivity:	-106dBm
Data Rate:	Up To 40 Mbps
Network Capability:	8 Nodes (Customizable)
Encryption:	AES-256
Power Consumption:	<9w
Output Power:	2x0.5w
Delay:	7ms@2.5MHZ/hop

Long Range Radio Link Compact Datalink For Drone UAV UGV Robotic

Introduction

The ZKmanet3460 is a rugged MANET (MESH Network) transceiver special designed for UAV

video data transmission. Based on FPGA solution, it supports FHSS (Frequency Hopping) and

IFS (Intelligent Frequency Selection). Offering 1 watt power output. It is ideal for a variety of

tactical mesh deployments such as Public Security, Armed Police, Fire Control and Military.

Its multi-hop ability can largely increase the transmission distance, each hop can cover

10-30km air-to-air (LOS).

Features

◆ Supports MESH Network (MANET)

◆ Frequency 1300-1500MHz (accept customize)

◆ Supports FHSS and IFS

◆ Supports AES256 encryption

◆ 2x0.5W power output

◆ Data rate up to 48Mbps

◆ Supports up to 32 nodes

◆ Supports circumscribed GPS/BD/GLONASS (GNSS)

◆ Full transparent IP data transmission

◆ Supports Web and PC software management

Specifications

Default Frequencies	1300-1500MHz (accept customize)
Channel Bandwidth	2.5M/5M/10M/20MHz
RF Waveform	TDD-COFDM (2T2R)
Output Power	2x0.5W, 1dBm step adjustable
Receive Sensitivity	-100dBm@5MHz
Modulation Type	BPSK/QPSK/16QAM/64QAM (adaptive)
FHSS	Optional (>1000 hop/s)
IFS	Optional
Network Parameters
Network Size	Up to 32 nodes
Multi-hop Capability	15 hops (short message); 10 hops (voice); 8 hops (video)
Range	10-30km (Air-to-Ground LOS)
Data rate	Up to 25Mbps@10MHz & 48Mbps@20MHz
Delay	7ms@2.5MHz/hop
Movement Speed	>1000km/h
Start Time	27s
Positioning	GPS/BD/GLONASS (GNSS)
Network Access Time	<1s
Electrical Parameters
Working Voltage	7-15V DC
Power Consumption	≤9W
Physical/Environment
Weight	123g
Dimensions	849518mm
Working Temp.	-40°C~70°C
Interface
LAN Interface	*1
Serial Interface	RS232*2
