Product Details
Place of Origin: Shenzhen
Brand Name: LINKAV
Certification: CE
Model Number: MANET3618-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: TT
Supply Ability: 10000pcs/year

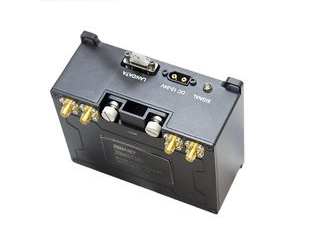

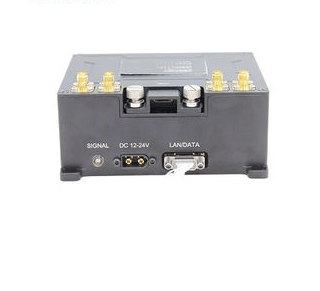

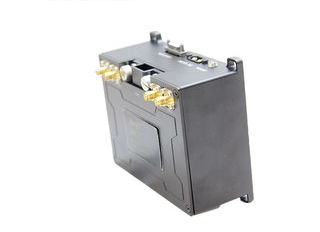

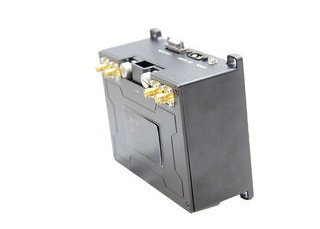

MANET3618-W
LinkAV
| Interface: | LAN/TTL;HDMI | Encryption: | AES |
| IP Rating: | IP54 | Output Power: | 4W |
| Size: | 120*90*40mm | Frequency Band: | 300MHz-3.8GHz Customizable) |
| Power Supply: | DC12-24V | Type: | Drone MESH Video Link |
| Interface: | LAN/TTL;HDMI |
| Encryption: | AES |
| IP Rating: | IP54 |
| Output Power: | 4W |
| Size: | 120*90*40mm |
| Frequency Band: | 300MHz-3.8GHz Customizable) |
| Power Supply: | DC12-24V |
| Type: | Drone MESH Video Link |
The Drone Data Link supports both LAN/TTL and HDMI interfaces, providing flexible data transmission options. The LAN/TTL interface delivers stable, reliable data transmission, while the HDMI interface supports high-definition video. Equipped with a 2T2R RF channel, the system maintains stable performance even in high-interference environments.
Powered by DC12-24V, it's compatible with most UAV power supplies. This efficient, reliable solution provides seamless data transmission for unmanned aerial vehicles.
Product Name: Drone Data Link
Encryption: AES
RF Channel: 2T2R
Type: Drone MESH Video Link
| Parameter | Value |
|---|---|
| Transmission Range | Long distance |
| Type | Drone MESH Video Link |
| Data rate | 30Mbps (MAX) |
| Power consumption | <12W |
| IP Rating | IP54 |
| Size | 120×90×40mm |
| Interface | LAN/TTL; HDMI |
| RF Channel | 2T2R |
| Encryption | AES |
The Drone Data Link is ideal for:
Aerial photography and videography
Surveillance and security operations
Mapping and inspection services
Search and rescue missions
Wildlife monitoring
Agricultural applications (crop monitoring, irrigation management)
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: TT
Annual Supply Capacity: 10,000 units
We offer customization services for the Drone Data Link, including:
Interface options (LAN/TTL, HDMI)
Bandwidth selection (5/10/20/40MHz)
Transmission range adjustments
Size modifications
RF channel configurations
Technical troubleshooting and diagnosis
Configuration and setup assistance
Firmware updates and upgrades
Repair and replacement services
Product training and education
Product Packaging:
Sturdy cardboard box with product identification
Secure bubble wrap and foam protection
Includes user manual and necessary accessories
Shipping:
Orders processed within 1-2 business days
Shipped within 5-7 business days
Tracking number provided
