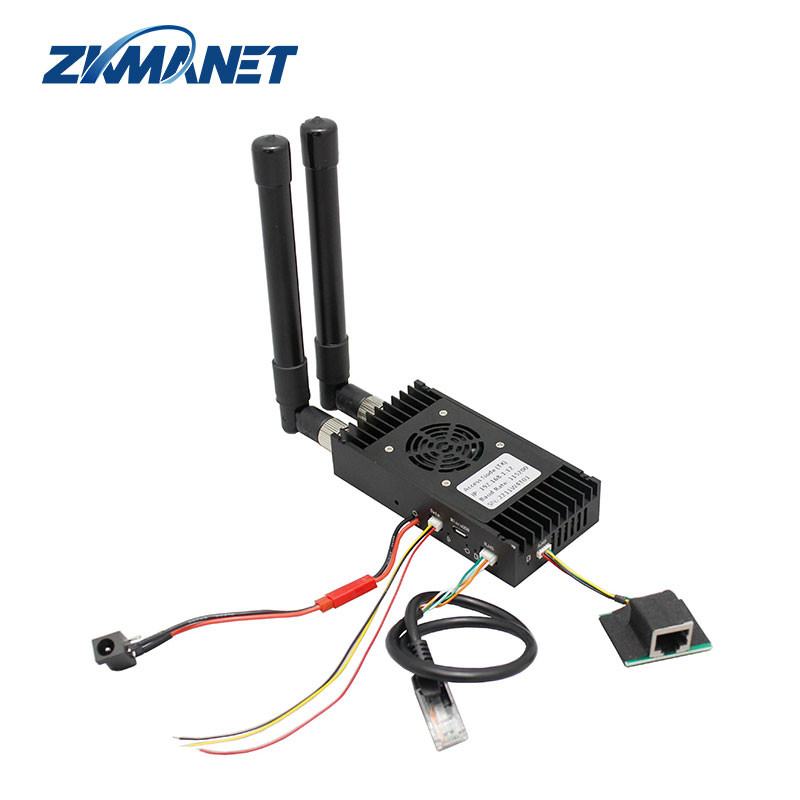

Compact & Lightweight Drone Data Link: 102×52×21.5mm Size, 124g Weight, Low Power Consumption
Product Description
This drone mesh video link delivers reliable data transmission for your UAVs—even during long-distance missions—boasting an impressive 15km LOS transmission range. It operates across multiple frequency bands (800MHz, 1.4GHz, 2.4GHz), ensuring flexible compatibility with diverse drone systems.
Equipped with versatile bandwidth options (1.4/3/5/10/20MHz), the link lets you select the exact bandwidth to match your mission needs. Energy-efficient by design, it excels in industry-specific UAV scenarios, from agriculture and construction to surveillance.
For dependable drone communication and data transmission, this link stands out as a versatile, high-performance solution.
Key Features
- Product Name: Drone Data Link
- Power consumption: <5w
- Data rate: 30Mbps(MAX)
- LAN interface: RJ45*2, TTL*1
- Power Supply: DC12V
- Frequency Band: 800MHz/1.4GHz/2.4GHz
- Provides a Remote Controlled Aircraft Data Network
- Offers UAV Data Relay and Control Link
- Enables Uncrewed Aerial Vehicle Data Linkage
Technical Specifications
| Product Attribute |
Value |
| Type |
Drone MESH Video Link |
| Output power |
25dBm |
| Data rate |
30Mbps(MAX) |
| Encryption |
ZUC/SNOW3G/AES Optional |
| Power consumption |
<5w |
| Power Supply |
DC12V |
| LAN interface |
RJ45*2,TTL*1 |
| Size |
102*52*21.5mm |
| RF Channel |
1T2R |
| Weight |
124g |
This product is an Unpiloted Flying Machine Data Link, also known as an Aerial Robot Data Exchange Connection, or an Autonomous Airborne Data Relay System.
Applications
The ZKMANET2421UM—a high-performance UAV data networking solution with 25dBm output power—delivers stable, reliable data transmission for unmanned aerial vehicle (UAV) links. Engineered for UAV data relay and control, it stands as an essential tool for drone operators.
Boasting a 15km LOS transmission range, 1T2R RF channel configuration, and 30Mbps maximum data rate, this unit excels at transferring high-quality video and critical data. Its DC12V power supply ensures easy integration across diverse operational environments.
Versatile across industries, it proves invaluable in agriculture/forestry for crop and forest monitoring, energy sector for power line and wind turbine inspections, and search-and-rescue missions for locating missing persons or surveying disaster zones.
Support and Services
Our Drone Data Link product is accompanied by technical support and services to ensure smooth and efficient operation. Our technical support team is available to assist with:
- Installation and setup
- Troubleshooting
- Software updates and upgrades
- General product information
Additional services include:
- Customization and integration with existing systems
- Training for operators and maintenance personnel
- On-site support for large-scale installations
Packaging and Shipping
Product Packaging: The Drone Data Link is packaged in a sturdy cardboard box with protective bubble wrap, including user manual and necessary accessories.
Shipping: Processed within 1-2 business days with tracking provided. Currently ships within United States only.
Frequently Asked Questions
Q: What is the range of the ZKMANET2421UM Drone Data Link?
A: The maximum range is 15 kilometers.
Q: Is the ZKMANET2421UM compatible with all drones?
A: Compatible with most drones that have a USB interface and flight control system.
Q: What certifications does the product have?
A: CE certified for European Economic Area standards.
Q: What is the price and delivery time?
A: $500/unit with 15-day delivery after payment.
Q: Where is it manufactured?
A: Manufactured in Shenzhen, China.
