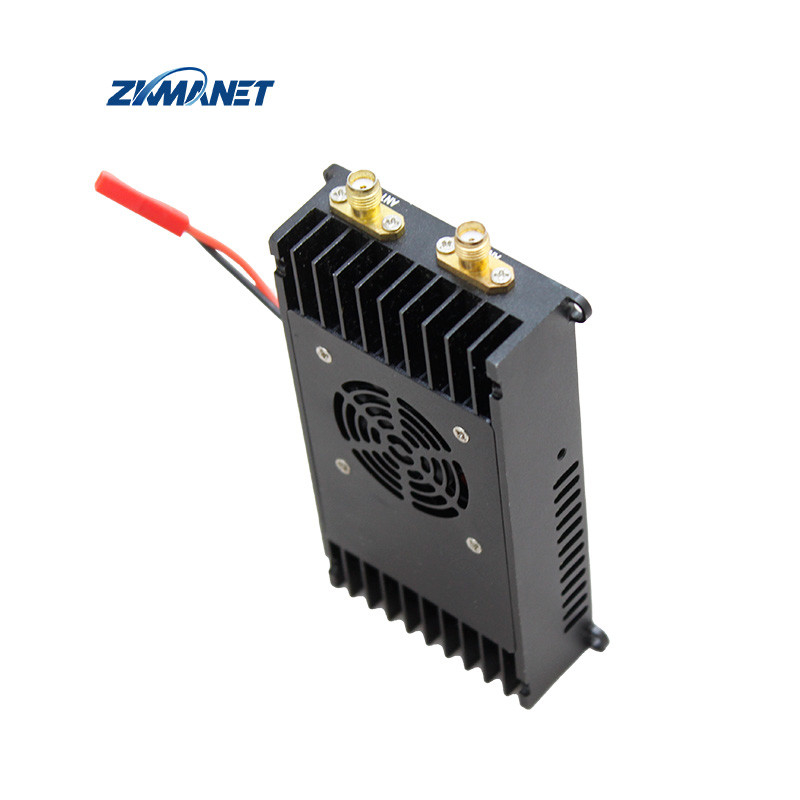

1T2R Drone Data Link 25dBm 15km Range 102x52x21.5mm

Name: 1T2R Drone Data Link 25dBm 15km Range 102x52x21.5mm
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET2421UM
Price: 500 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen

Brand Name: ZKMANET

Certification: CE

Model Number: ZKMANET2421UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 500USD/PC

Packaging Details: Carton

Delivery Time: 15days

Payment Terms: TT

Supply Ability: 10000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                15km Transmission Range Aircraft Data Network, 1T2R Aircraft Data Network, 25dBm Output Power Aircraft Data Network


Power Consumption:	<5w	Encryption:	ZUC/SNOW3G/AES Optional
Bandwidth:	1.4/3/5/10/20MHz	Size:	1025221.5mm
LAN Interface:	RJ452,TTL1	Transmission Range:	15km (LOS)
Output Power:	25dBm	RF Channel:	1T2R

Power Consumption:	<5w
Encryption:	ZUC/SNOW3G/AES Optional
Bandwidth:	1.4/3/5/10/20MHz
Size:	1025221.5mm
LAN Interface:	RJ452,TTL1
Transmission Range:	15km (LOS)
Output Power:	25dBm
RF Channel:	1T2R

1T2R Drone Data Link 25dBm 15km Range 102x52x21.5mm

1T2R RF Channel Remote-Controlled Aircraft Data Network: 25dBm, 15km Range

Product Overview

The Drone Data Link is designed to endure various weather conditions, with a working temperature range of -40℃ to +65℃. Its compact size of 102×52×21.5mm allows for easy integration into drone systems without adding unnecessary weight.

Key Features

Product Name: Drone Data Link
Size: 102×52×21.5mm
Output power: 25dBm
Power Supply: DC12V
Working Temperature: -40℃ to +65℃
Encryption: ZUC/SNOW3G/AES Optional

Technical Specifications

Power consumption	<5w
Data rate	30Mbps (MAX)
Transmission Range	15km (LOS)
Bandwidth	1.4/3/5/10/20MHz
Working Temperature	-40℃ to +65℃
RF Channel	1T2R
Weight	124g
Type	Drone MESH Video Link

Applications

The ZKMANET Drone Data Link is ideal for various professional applications:

Uncrewed Aerial Vehicle Data Linkage for aerial photography and surveying
Live streaming for events and concerts
Emergency response and disaster management
Industrial inspection and monitoring
Wildlife and nature observation

Ordering Information

Model: ZKMANET2421UM
Manufactured in: Shenzhen, China
Certification: CE
Minimum Order Quantity: 1
Price: 500USD/PC
Packaging: Carton
Delivery Time: 15 days
Payment Terms: TT
Annual Supply Capacity: 10,000 units

Support & Services

Our team provides comprehensive technical support including installation assistance, configuration guidance, and troubleshooting. We offer regular software updates and training resources to help users maximize product capabilities.

Packaging & Shipping

The product is securely packaged in a sturdy cardboard box with protective foam inserts. Standard ground shipping is included, with expedited options available. Customers receive tracking information upon shipment.

Frequently Asked Questions

Q: What is the brand of this product?

A: The brand of this product is ZKMANET.

Q: What is the model number of this product?

A: The model number is ZKMANET2421UM.

Q: Where is this product manufactured?

A: This product is made in Shenzhen, China.

Q: Does this product have CE certification?

A: Yes, this product is CE certified.
