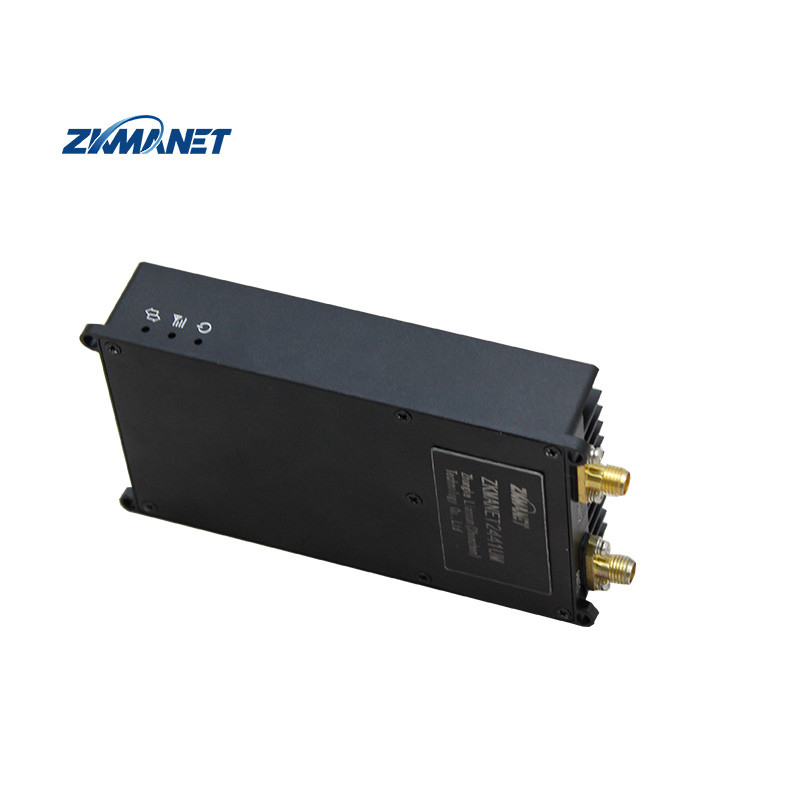

Drone Data Link 30Mbps AES128 Encryption 142g

Name: Drone Data Link 30Mbps AES128 Encryption 142g
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET2441UM
Price: 500 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen

Brand Name: ZKMANET

Certification: CE

Model Number: ZKMANET2441UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 500USD/PC

Packaging Details: Carton

Delivery Time: 15days

Payment Terms: TT

Supply Ability: 10000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Easy Installation Drone Communication Link, Compact Size Drone Communication Link, uav communication data link


Power Consumption:	<12w	Weight:	142g
Type:	Drone Video Link	Working Temp:	-40℃- +65℃
Power Supply:	DC12V	Output Power:	33dBm
Encryption:	AES128	Data Rate:	30Mbps

Power Consumption:	<12w
Weight:	142g
Type:	Drone Video Link
Working Temp:	-40℃- +65℃
Power Supply:	DC12V
Output Power:	33dBm
Encryption:	AES128
Data Rate:	30Mbps

Drone Data Link 30Mbps AES128 Encryption 142g

Drone Communication and Data Transmission Link

Compact size of 103.5×61.5×22mm for easy installation with high data rate of 30Mbps for transmitting HD video, sensor data, and critical information.

Product Overview

The Drone Data Link is an essential UAV communication system featuring AES128 encryption, lightweight design (142g), and low power consumption (<12W). Designed for extreme environments with an operating range of -40℃ to +65℃ and IP65 rating.

Key Features

High data rate: 30Mbps transmission capability
Flexible bandwidth options: 1.4/2.5/5/10/20/40MHz
Robust encryption: AES128 secure data transfer
Compact dimensions: 103.5×61.5×22mm
Extreme temperature operation: -40℃ to +65℃
Low power consumption: <12W
High output power: 33dBm

Technical Specifications

Parameter	Specification
Frequency Band	800MHz/1.4GHz/2.4GHz
Data Rate	30Mbps
Size	103.5×61.5×22mm
IP Rating	IP65
Working Temperature	-40℃ to +65℃
Bandwidth Options	1.4/2.5/5/10/20/40MHz
Power Consumption	<12W
Weight	142g
Power Supply	DC12V
Encryption	AES128

Applications

Ideal for UAV operations including aerial surveys, wildlife monitoring, search and rescue missions, and large-scale drone fleet management. Provides reliable long-range data relay and control link for autonomous airborne systems.

Ordering Information

Brand: ZKMANET (Model: ZKMANET2441UM)
Manufactured in Shenzhen, CE certified
Minimum order quantity: 1 unit
Price: 500USD/PC
Delivery time: 15 days
Annual supply capacity: 10,000 units

Package Contents

Drone Data Link transmitter
Drone Data Link receiver
Two antennas
Instruction manual

Frequently Asked Questions

Q: What is the brand and model of this product?

A: ZKMANET brand, model ZKMANET2441UM.

Q: What certifications does this product have?

A: CE certified.

Q: What is the minimum order quantity?

A: Minimum order quantity is 1 unit.

Q: What is the delivery time?

A: Standard delivery time is 15 days.
