Product Details
Place of Origin: Shenzhen
Brand Name: LINKAV
Certification: CE,FCC
Model Number: MANET3622-W
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per year
MANET3622-W
LinkAV
| RF Channel: | 1T2R |
| Weight: | 142g |
| Size: | 103.5*61.5*22mm |
| Interface: | RJ45,TTL |
| RF: | 800GHz 1.4GHz 2.4GHz |
| Application: | Drone UAV Aircraft |
The MANET3622-W is a compact and portable airborne radio with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission in non-line-of-sight (NLOS) conditions. Encryption is applied to the images and data during transmission. It is well-suited for long-term and high-data-flow wireless transmission applications, such as UAVs, USVs, and robots.
* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* IP transparent data transmission
* Compact size and light weight
* Rugged aluminum alloy housing
* Low power consumption
* With TTL and RJ45 port
| RF Parameters | Frequency | 800MHz/1.4GHz /2.4GHz | |
| Bandwidth | 1.4MHz/3MHz/5MHz/10MHz/20MHz | ||
| RF Channel | 1T2R | ||
| Network Parameters | Network Mode | One-to-one and one-to-many | |
| Data Rate | 30Mbps(Max) | ||
| Encryption | ZUC/SNOW3G/AES Optional | ||
| Physical/ Environment | Dimensions | 103.5*61.5*22mm | |
| Weight | 142g | ||
| Electronic Parameters | Power Supply | DC12V | |
| Other | Data Interface | RJ45*2,TTL*3 | |

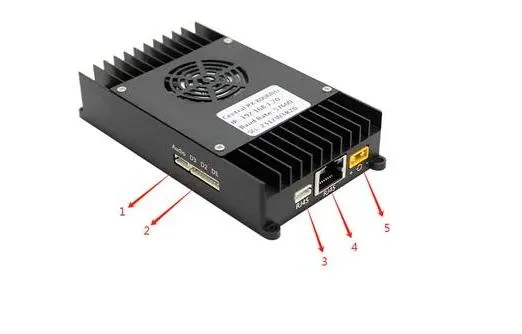

Audio Interface
RA232 Interface*3
RJ45 Interface-1
RJ45 Interface-2
Power Input Interface

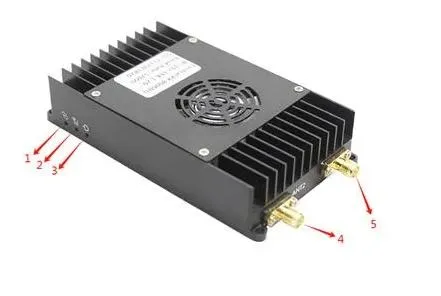

Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will flash. When the device works as a central node, this indicator will be always on.
Signal Indicator
Power Indicator
RF Antenna-2
RF Antenna-1
