Drone Datalink IP Mesh Radio HDMI Video Transmitter Receiver For Drone UAV UGV
Drone Datalink IP Mesh Radio HDMI Video Transmitter Receiver For Drone UAV UGV
ZKManet2451UM is a 4W MESH video data link that can be used in various communication combinations for different usage scenarios. It can be used on moving vehicles, ships, robots, drones, unmanned boats, etc., allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and individual soldiers, and between individual soldiers and base stations.
* Data rate up to 82Mbps
* Range up to 40~49km
* Full transparent IP data transmission
* With HDMI input
* Supports up to 10nodes(Customizable)
* Small size and light weight
| Model |
ZKManet2451UM |
Brand |
ZKMANET |
| RF Parameters |
Frequency |
1400-1460MHz (300MHz-3.8GHz Customizable) |
| Bandwidth |
5/10/20/40MHz |
| RF Channel |
2T2R |
| Output Power |
4W |
| Network Parameters |
Network Size |
10nodes(Customizable) |
| Data Rate |
82Mbps |
| Encryption |
AES |
| Range |
40-50 km (LOS) |
Physical/
Environment |
Dimensions |
120*90*40mm |
| Weight |
450g |
| Working Temp |
-40ºC~+65ºC |
| IP Rating |
IP54 |
| Electronic Parameters |
Power Supply |
DC12-24V |
| Power Consumption |
<12W |
| Other |
HDMI Interface |
Support |
| LAN Port |
Support |
| TTL Port |
Support |

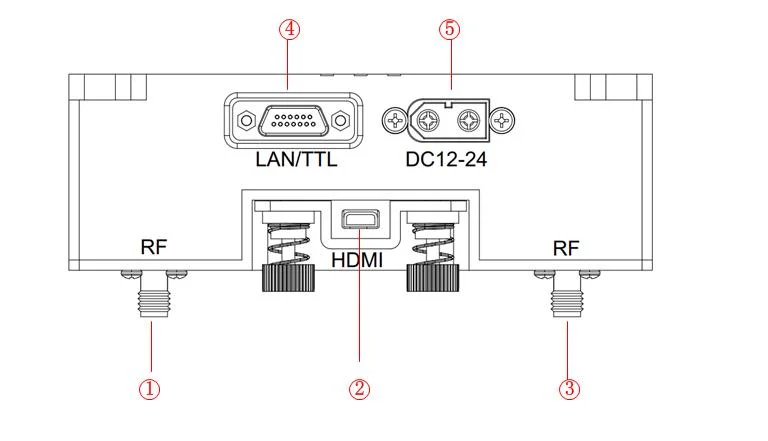

- MESH antenna interface, SMA F
- HDMI input interface
- MESH antenna interface, SMA F
- LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND, TX and RX)
- Power input interface
It is widely used in important departments such as security, civil air defense, civil defense, fire protection, emergency rescue departments and forest fire prevention, transportation, customs, railways, oil fields, mines, water conservancy, electric power, finance, live broadcast of TV stations, etc.
The MESH self-organizing network system is a mobile broadband multimedia communication system designed using the new "wireless mesh network" concept.
