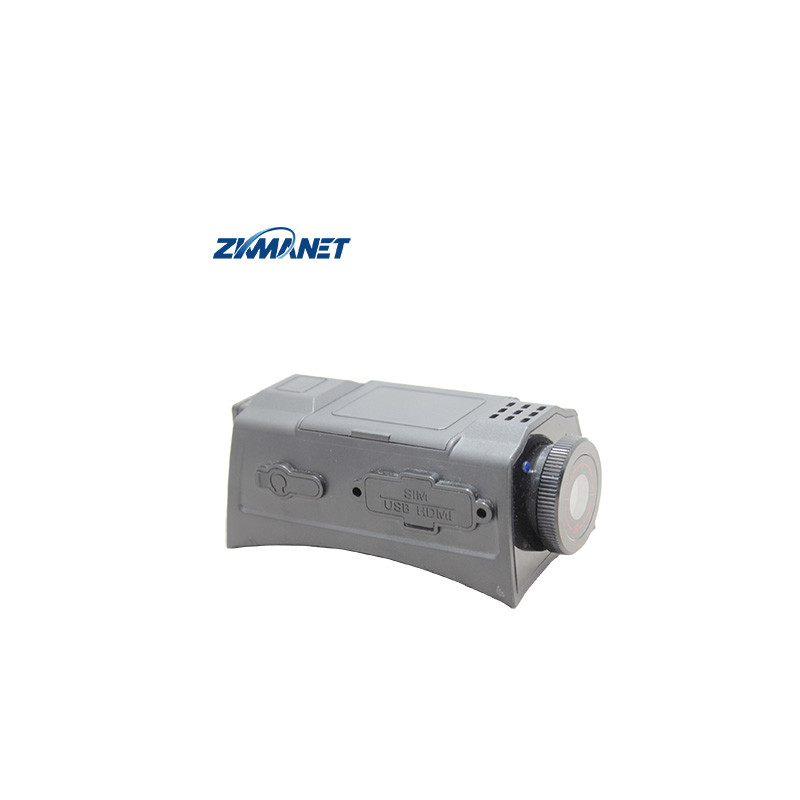

The ZKManet9602 binocular helmet camera is a specialized device developed for the needs of single-person portable monitoring in scenarios such as armed police, special police, mobile law enforcement evidence collection, and administrative supervision. This product uses a high-speed processor and embedded Linux operating system, integrating ultra-low-light color cameras, audio, 4G and Wi-Fi wireless communication modules, GPS/BD, storage, alarm modules, and is equipped with high-definition night vision cameras and wireless Bluetooth headsets. The device can transmit real-time audiovisual information and support functions such as voice intercom through MESH self-organizing network single soldier, 4G, and Wi-Fi wireless networks.
* Support 4G
* Supports GPS/BD positioning
* Rugged IP67 housing
* Supports Wi-Fi
* Supports two-way image collection
* Supports national standard video transmission
| Basic Parameters |
OS |
Linux |
| Memory |
128GB |
| Network Parameters |
WI-FI |
Support |
| Bluetooth |
Support |
| 4G |
Support |
| GPS/BD |
Support |
| USB |
Mini 5PIN USB2.0 |
| Video/Audio Collection |
Camera |
Front lens: Sony 185sensor;
Rear lens: Sony 224sensor |
| Microphone |
Sound audition range: 5m |
| Light |
Front lens: a white light
Rear lens: a light (visible with night vision goggles) |
| Physical/Environment |
Dimensions |
120*52*45mm |
| Weight |
300g (w/ battery) |
| Working Temp |
-20~70ºC |
| Working Humidity |
40%~80% |
| IP Rating |
IP67 |
| Electrical Parameters |
Battery Capacity |
4500mAh |
| Voltage |
3.7V |
| Working Time |
6h |
| Charging Time |
≤3h |
