The ZKManet1433T adopts the leading COFDM modulation technology, with strong anti-multipath interference capability. The video encoding uses the H.264 standard, achieving a resolution of 1080P, with clear image quality, high-definition integration, and low latency. It is capable of capturing high-quality images in high-speed motion and transmitting them in real-time over non-line-of-sight distances. It is particularly suitable for use on various UAVs.
The system utilizes omnidirectional antennas, allowing for the rapid establishment of wireless transmission links. Both the capture and receiving ends can be moved freely without directional restrictions, making the system simple, reliable, and flexible in application. In complex electromagnetic environments, it demonstrates excellent anti-interference capabilities against frequency-selective fading or narrowband interference, as well as superior performance in mitigating interference between signal waveforms. Through joint coding of various subcarriers, it possesses strong resistance to fading.
* Adopts COFDM modulation and H264/H265 compression
* Frequency 200MHz-2.7GHz customizable
* HDMI and CVBS dual video inputs
* 19-33dBm dynamic power adjustable
* Compact size and light weight
* Range up to 15 km(LOS)
* Support transparent data transmission
* Easy operation
| Transmission Parameters |
| Modulation |
QPSK(4QAM), 16QAM, 64QAM |
| Bandwidth |
300MHz-2.7GHz Customizable |
| Output Power |
30dBm |
| RF Bandwidth |
2/3/4/6/7/8MHz |
| FEC |
1/2,2/3,3/4,7/8 |
| Guard Interval |
1/4,1/8,1/16,1/32 |
| Range |
1km(NLOS)~15km(LOS) |
| Data Parameters |
| Video Input |
HDMI: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30PAV:720x480 60I(NTSC),720x576 50I(PAL) |
| Video Compression |
H.264 |
| RF Interface |
SMA F head |
| Configuration |
Using the USB programmer |
| Encryption |
AES128 |
| Electronic Parameters |
| Working Voltage |
DC12V |
| Working Current |
≤1.2A(@12V) |
| Power Consumption |
≤14.37dBm |
| Physical Parameters |
| Weight |
110g |
| Dimensions |
77x54x23.5mm |
| Working Temp |
-20ºC~+70ºC |

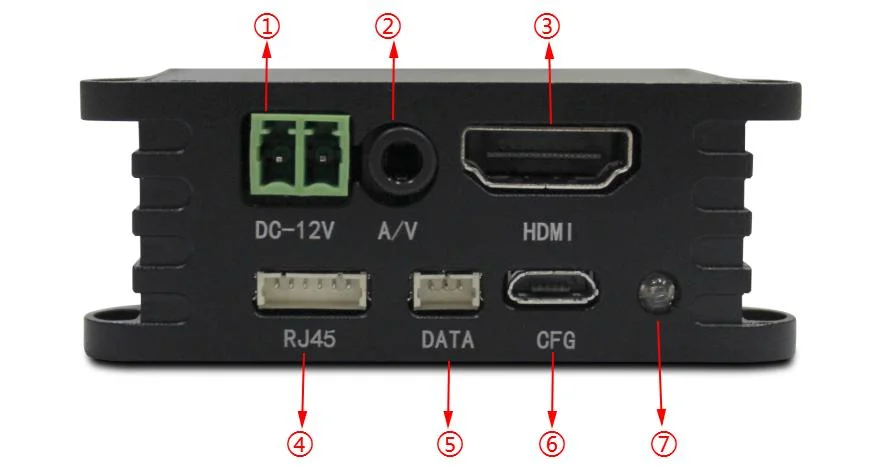

- Power input - 2 pin, DC 12V
- AV video input - CVBS, analog SD
- HDMI video input - digital HD
- RJ45 port - reserved
- Data port - RS232, TX to RX unidirectional.
- CFG port - connect with the USB programmer to configure parameters
- Power indicator - red light

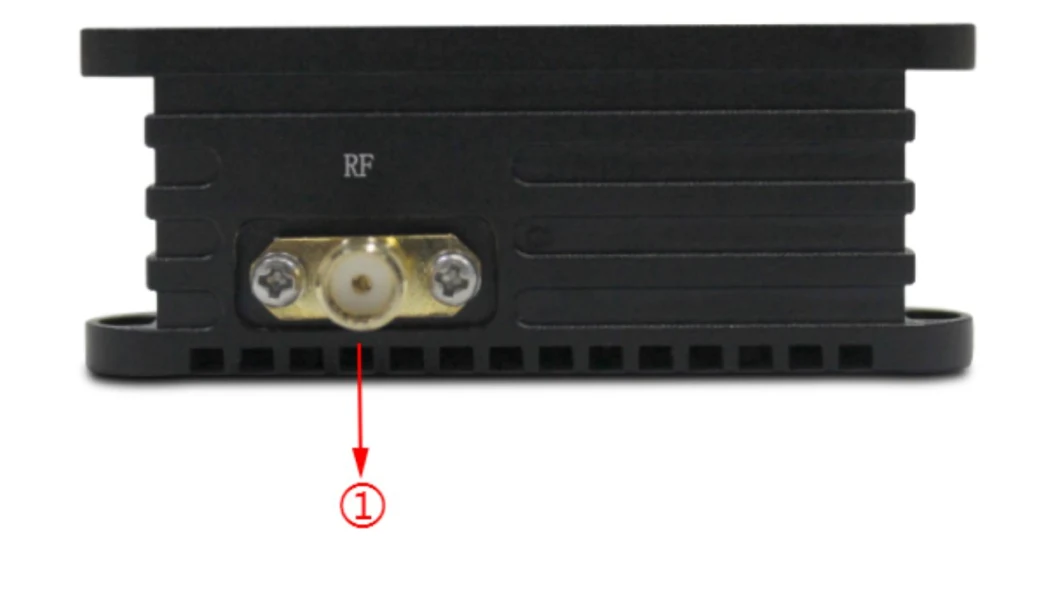

- Antenna interface - SMA F
