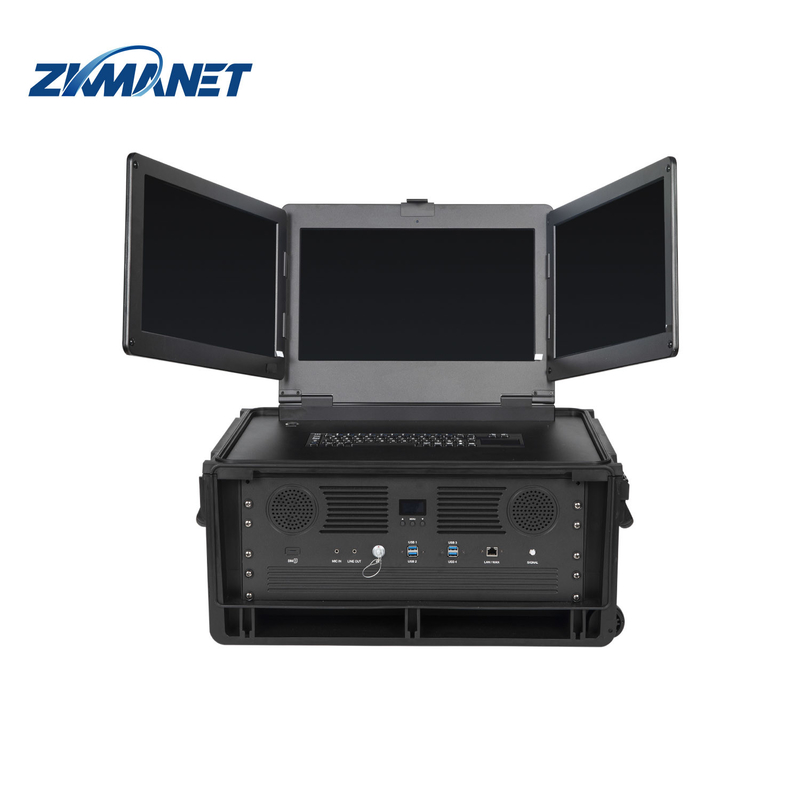

Triple Screen 70MHz~6GHz Frequency Cutomizable Mesh FHSS IFS Command Station Transceiver

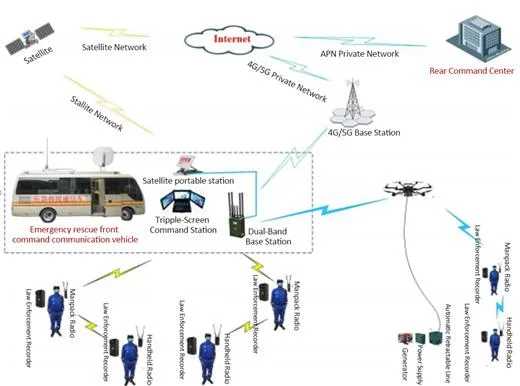

The ZKManet3961 is a MESH portable command station developed for on-site command. It can manage and set up various Mesh nodes within the network through link management, allowing users to view signal strength of each link, video and data information of each node, display front-end video in real-time, and conduct voice intercom. It can serve as a front command post or transmit data back to the main command center via 4G/5G private network or public network for coordinated operations. It is mainly used to receive data information from individual soldiers and relay transmissions.

* Data rate up to 56Mbps
* Full-duplex bidirectional data transmission
* Full transparent IP data transmission
* Flexible networking, rapid deployment
* Rugged IP67
* Supports video monitoring

Model	ZKManet3961	Brand	ZKMANET
Host Parameters	OS	WIN10
	CPU	Intel I7
	Display	15.6-inch HD screen
	Memory	8G
	Storage Method	250GB SSD
	Mode of Operation	Embedded mouse and keyboard
RF Parameters	Frequency	1300-1500MHz (70MHz-6GHz customizable)
	Bandwidth	2.5/5/10/20MHz
	RF Channel	2T2R
	Output Power	2W
Network Parameters	Capacity	64 nodes
	Data Rate	56Mbps
	Public Network	4G/5G
	WIFI	2.4GHz/5.8GHz
	Encryption	AES
Physical/Environment	Dimensions	577*353*211mm
	Weight	15kg(w/ battery)
	IP Rating	IP65
	Working Temp	-20ºC~+65ºC
Electrical Parameters	Power Supply	24V
	Battery Capacity	21Ah
	Power Consumption	<High Power
Other	FHSS	Optional
	IFS	Optional
	Voice Intercom	Support
	Positioning	Support
	HDMI Input	Support



Panel Description

1. SIM card slot interface
2. LINE OUT
3. Display and Debugging Button
4. 2 USB interfaces
5. Signal indicator light
6. MIC IN
7. PTT intercom interface
8. 2 USB interfaces
9. RJ45 network port



10. GPS antenna interface
11. Wi-Fi antenna interface
12. 5G antenna interface 1
13. 5G antenna interface 2
14. 5G antenna interface 3
15. 5G antenna interface 4
16. MESH antenna interface
17. MESH antenna interface
18. RJ45 network port
19. HDMI interface
20. Power input
21. Power output
22. Power interface

Zhongke Lianxun (Shenzhen) Technology Co., Ltd. was established in 2005. We focus on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. With excellent quality and advanced technology, we provide comprehensive network communication solutions to our customers.

Our chief scientist team, led by professors from the Network Security Institute of Wuhan University, has achieved remarkable results in the development of man-in-the-middle platforms for network security. The company currently offers platforms such as a drone denial system platform, long-distance wireless video transmission platform for drones, network encrypted data analysis platform, IPSEC man-in-the-middle platform, and SSH man-in-the-middle analysis platform.

Our Patents

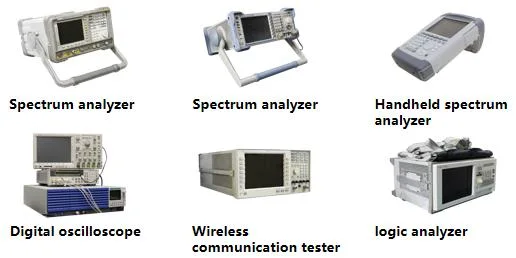

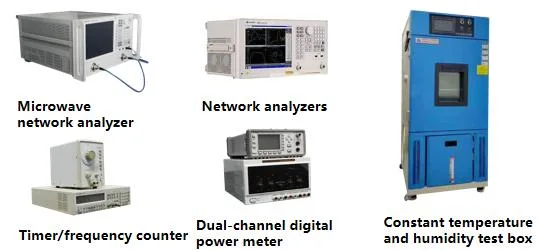

Test Equipments
