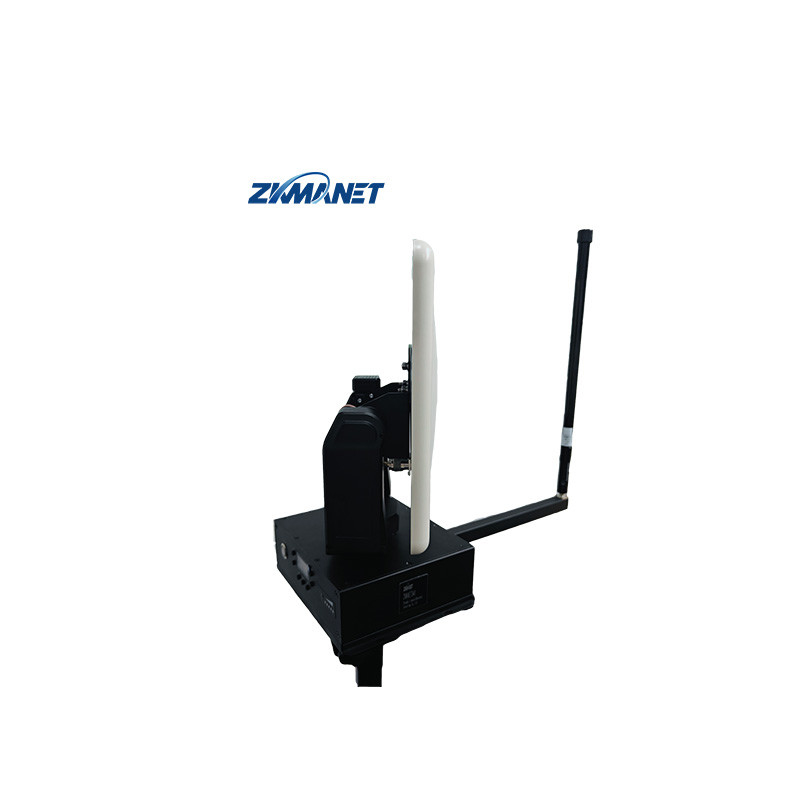

Rugged IP65 Long Range 49km UAV Drone Auto-Tracking Antenna Ground Terminal

The ZKManet2441 is a ground terminal specifically engineered for long-distance video data transmission. It features an integrated GPS tracking module along with a wireless communication module. The airborne GPS module transmits GPS/BD coordinate data to the wireless communication module via a serial port, enabling seamless transmission. The ground terminal computes the pointing angle by comparing its own latitude and longitude with those of the airborne module. This alignment ensures that your ground panel antenna remains consistently oriented towards the airborne module, optimizing wireless reception and significantly extending the operational range. It utilizes a 1T2R dual-antenna system, incorporating a high-gain directional antenna for both sending and receiving signals, alongside an omnidirectional antenna for enhanced signal reception, thereby improving overall transmission effectiveness.

* 2W power output for up to 49km range
* Automatic calibration algorithm at startup
* With main and sub (LoRa) dual links to ensure timely refreshing of GPS data
* Using 1T2R dual-antenna for more reliable transmission
* 360-degree twist-free slip ring

1. GPS Antenna
2. Directional panel antenna interface, SAM F
3. LoRa link antenna interface, SMA F
4. Power button
5. OLED screen (1.3") and configuration buttons (up, down and menu)
6. Battery indicator
7. Omnidirectional antenna interface, SAM F
8. LAN & Serial port - 9 pin aviation connector (4 pins for LAN, 3 pins for TTL and 2 pins not used)
9. DC power input interface, waterproof
